Valves - Electro-proportional Controls - 3-Position 5-way - Closed Center - Fast Response

SP10-P57FL

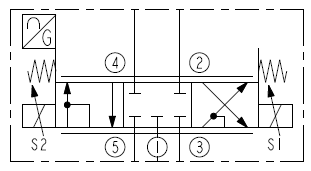

PROPORTIONAL SOLENOID VALVE, 3 POSITION, 5 PORT, CLOSED CENTER SPOOL, LVDT SENSOR VALVE

Expand All|Collapse All

Overview

Description

A direct-acting, 3 position, 5 port, proportional, directional control, screw-in cartridge valve with position feedback. The valve is operated by a hydraforce ESDR controller where the command input to the esdr to operate the valve is via can wiring. The valve's spool position from neutral to fully shifted is monitored by the valve's lvdt coil to provide feedback signal voltage viat Vout wiring to the ESDR for closed loop valve control. Port 1 is used as a load sense port.

Features

  • Fast response time
  • Low flow option for maximum resolution
  • Integral load sensing
  • Near zero hysteresis
  • On-coil PID control with LVDT feedback
  • Plug-and-play operation by CAN message
Pressure Ratings
Pressure rating:
  • 250 bar (3625 psi)
Proof pressure:
  • 250 bar (3625 psi)
Proof pressure:
  • 345 bar (5000 psi)
Burst pressure:
  • 779 bar (11300 psi)
Flow Ratings
Flow rating:
  • 11.35 lpm (3.0 gpm)
Maximum internal leakage:
  • 1016 ml/min (62 in³/min) At 207 bar (3000 psi)
  • 82 ml/min (5 in³/min) At 17.2 bar (250 psi)
Temperature Ratings
Operating fluid temperature:
  • Note: Limited by sensor operating temperature
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Other Ratings
Corrosion protection:
  • 960 hr salt spray per ASTM b117
Response:
  • 62 ms S1 nominal, pull-in
  • 21 ms S1 nominal, drop-out
  • 41 ms S2 nominal, pull-in
  • 19 ms S2 nominal, drop-out
Hysteresis:
  • Less than 1% FSO Typical, between 20 to 80% of flow range
Linearity:
  • Less than 2.5% FSO Typical, between 20 to 80% of flow range
LVDT output position repeatability:
  • Less than 0.3% difference
Fluids
Operating fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 1.47 kg (3.24 lb) Cartridge, coils, and controller
Internal wetted surface area:
  • 813.5 cm² (49.64 in²)
Supply voltage (Vcc):
  • +5 to +14 Vdc
Calibrated output voltage (Vout):
  • 2.6 to 4.5 Vdc S1 coil
  • 2.4 to 0.5 Vdc S2 coil
Maximum output voltage (Vout):
  • 4.6 Vdc S1 coil
  • 0.4 Vdc S2 coil
Failure mode voltage:
  • +0.15 Vdc
Environmental rating:
  • IP69K
Vibration:
  • 10 G 10 to 2000 Hz sinosudial
Mechanical shock:
  • 50 G 11 ms half-sine
ESD:
  • ±15 kV Air discharge, nondestructive
EMI:
  • EN 13766-1 With ESDR controller
Operating temperature:
  • -40 to 85 °C (-40 to 185 °F)
Connection:
  • See Wiring

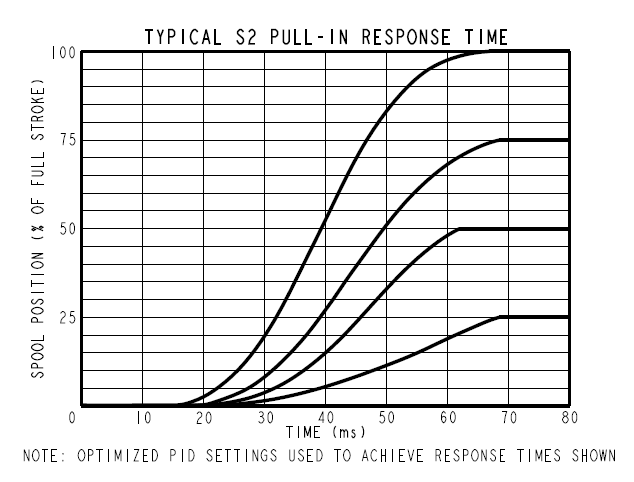

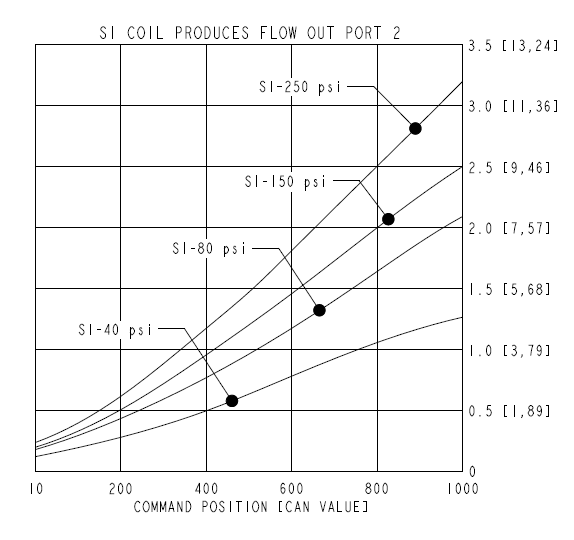

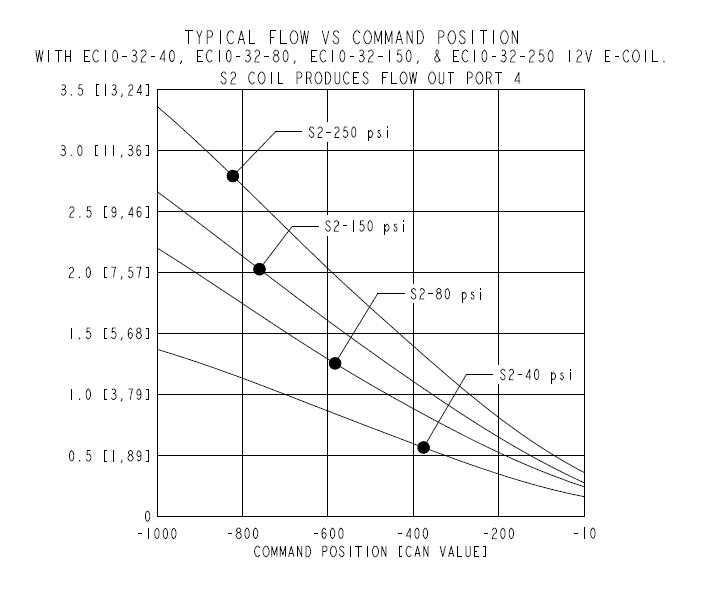

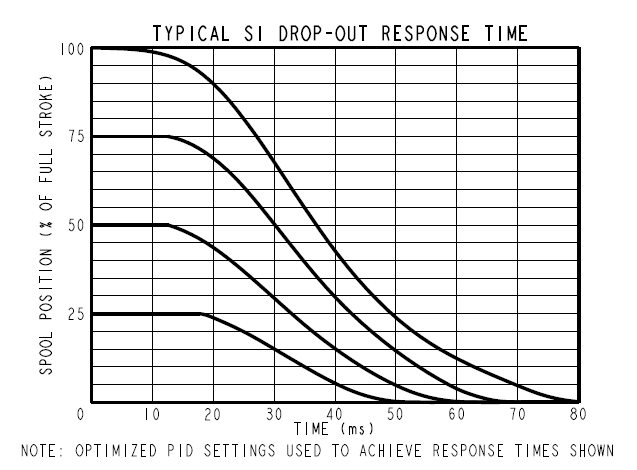

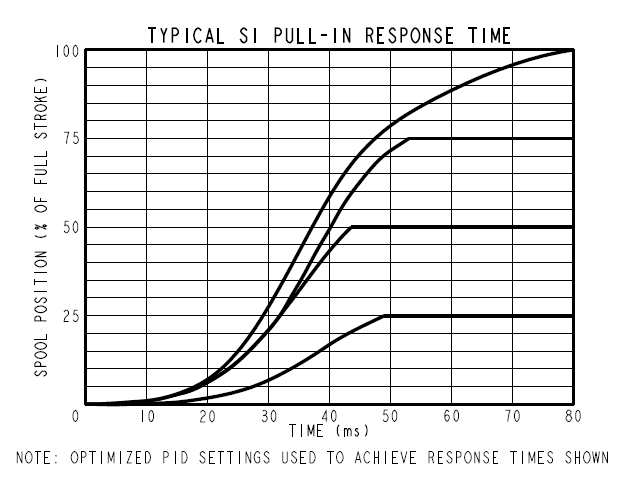

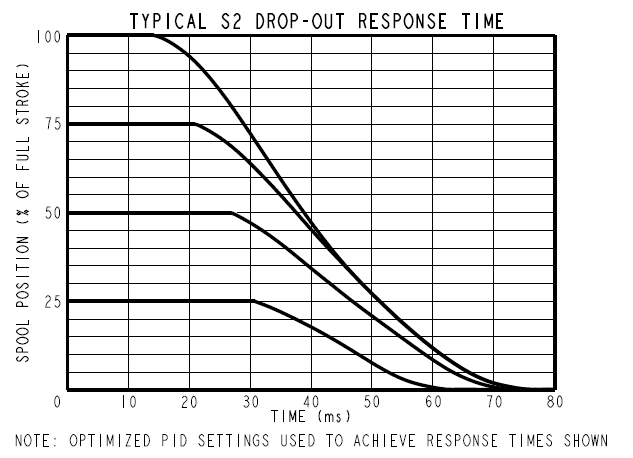

SP10-P57FL_Perf1(2023-03-08) SP10-P57FL_Perf2(2023-03-08) SP10-P57FL_Perf3(2023-03-08) SP10-P57FL_Perf4(2023-03-08) SP10-P57FL_Perf5(2023-03-08) SP10-P57FL_Perf6(2023-03-08)

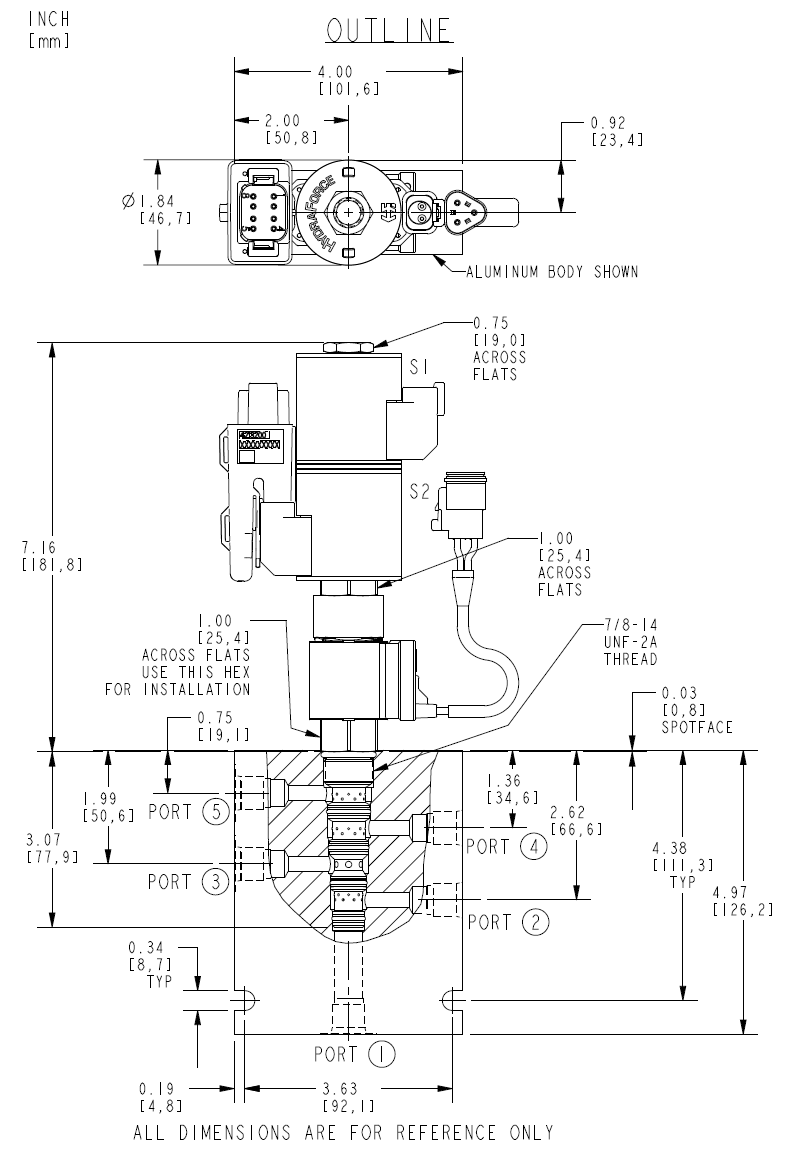

SP10-P57FL_DIM(2023-03-08)
Cavity:
  • VC10-5
Cartridge installation torque:
  • 44.7 to 50.2 N-m (33 to 37 ft-lb)
  • 61.0 N-m (45 ft-lb) Maximum
Coil nut torque:
  • 6.8 to 9.5 N-m (5 to 7 ft-lb)
Orientation restriction:
  • None

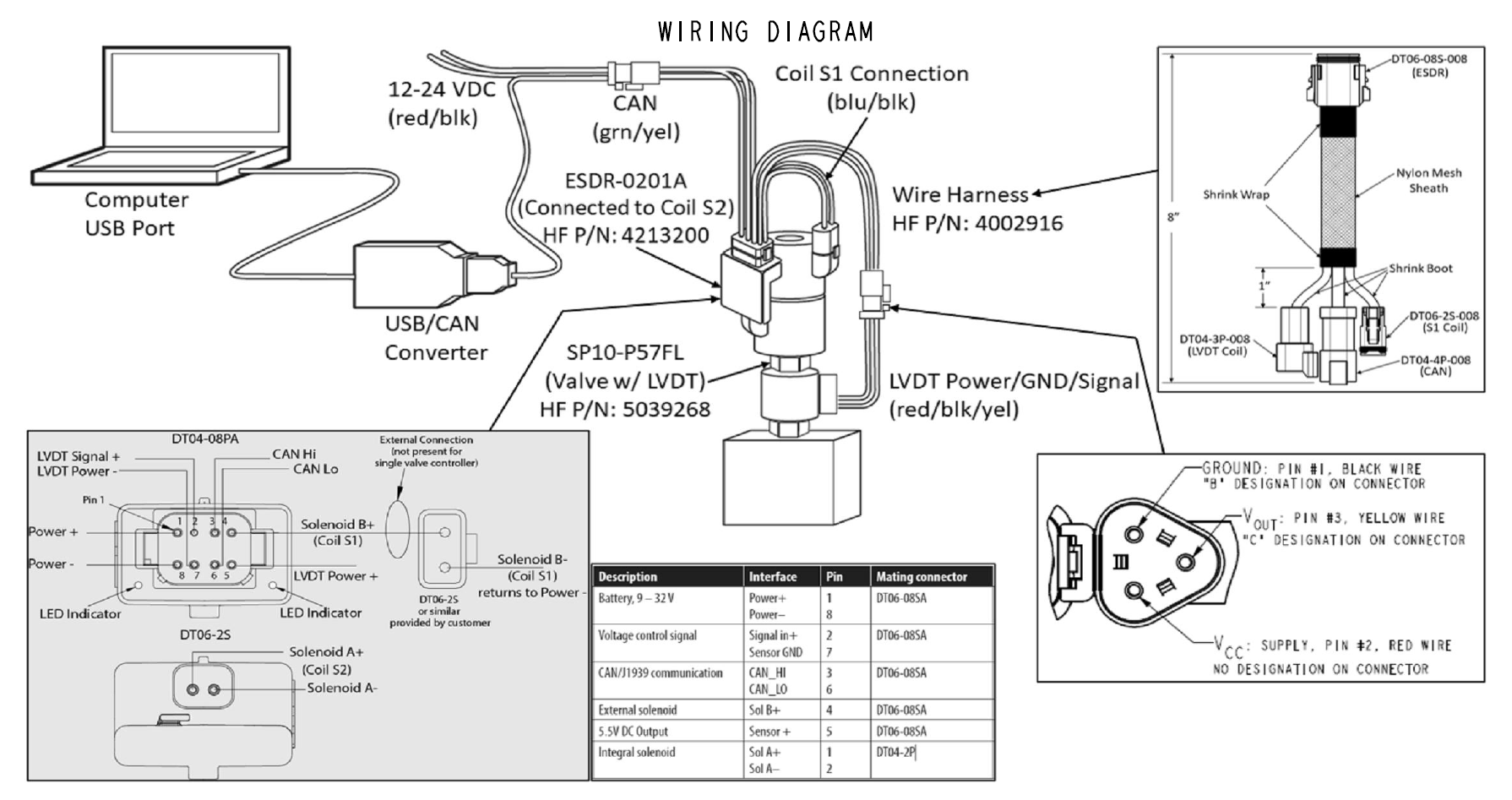

SP10-P57FL_Wiring(2023-03-08)
Seal kit:
  • SK10-5X-MMMM X = seal option
Housings:
Coils:
Wire harness:
  • HF P/N: 4002916
ESDR-0201A:
  • HF P/N: 4213200
SP10-P57FL:
  • HF P/N: 5039268 Valve only w/LVDT sensor
SP10-P57FL_Order(2023-03-08)

Model Options

SP10-P57FL-H-J-L-M
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
L Coil
CODE
DESCRIPTION
0
No Coil, D-Coil Spacer
0E
No Coil, E-Coil Spacer
12DR
12 VDC, D-Coil, Deutsch
12ER
12 VDC, E-Coil, Deutsch
24DR
24 VDC, D-Coil, Deutsch
24ER
24 VDC, E-Coil, Deutsch
M Position Sensor
CODE
DESCRIPTION
L4
LVDT with ESDR controller and wire harness
