Description

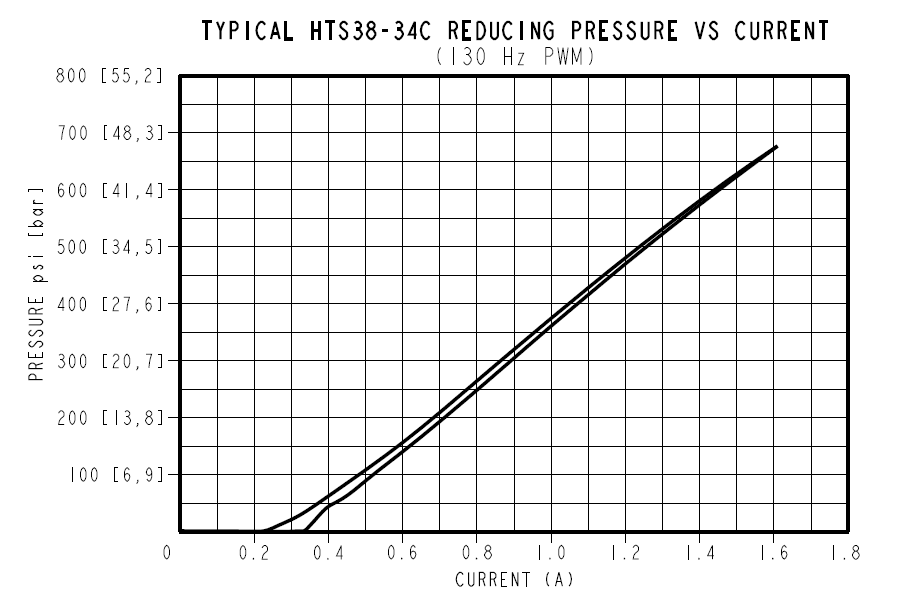

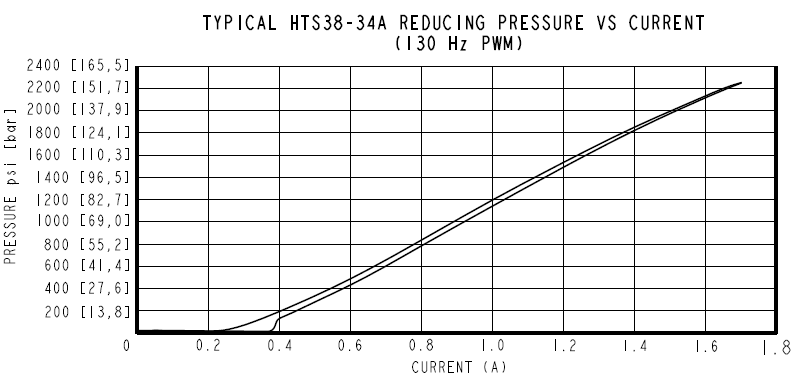

The HTS38-34X is a screw-in, cartridge style, direct-operated, spool-type, proportional pressure reducing/relieving valve which can be infinitely adjusted across a predescribed range using a variable electric input. The regulated pressure is proportional to the input electrical current applied to the valve coil.
Operation

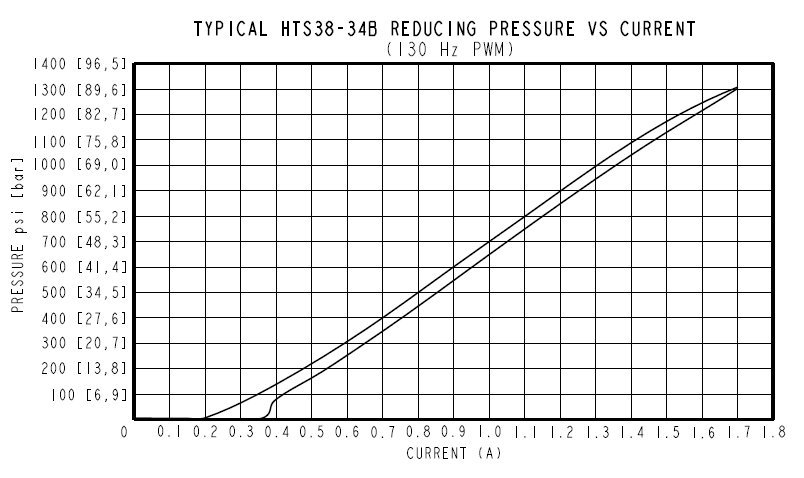

The HTS38-34X allows flow from port 1 to port 3 when no current is applied to the coilt. With coil energized, port 2 is connected to port 1. increasing current to the coil will increase the control (reduced) pressure at port 1 proportionally. If pressure at port 1 exceeds the setting induced by the coil, pressure from port 1 is relieved to port 3. Pressure at port 3 is additive to the control pressure.
Features
- 350 bar (5075) inlet rating
- Up to 152 bar(2200 psi) controlled pressure at maximum current
- Three pressure ranges
- 19 lpm (5 gpm) flow capacity
- High flow rating
- Direct acting for fast response and low leakage
- Corrosion-resistant plating

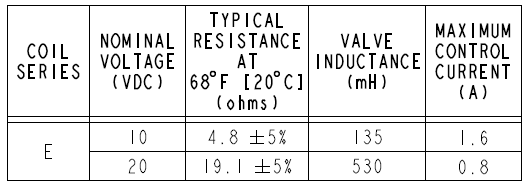

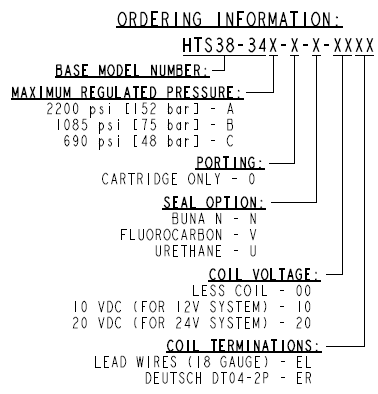

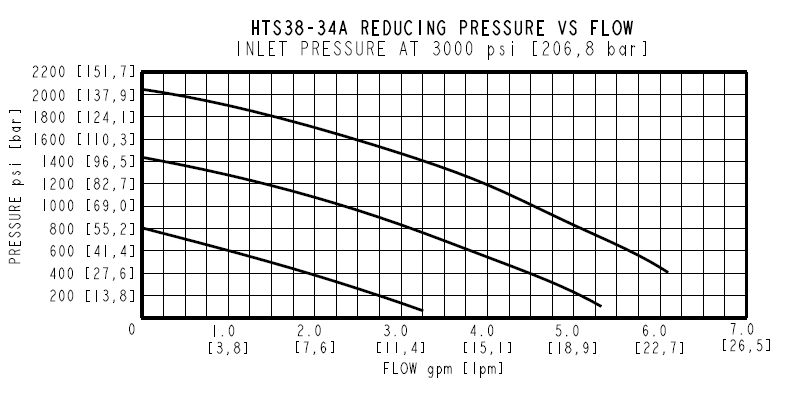

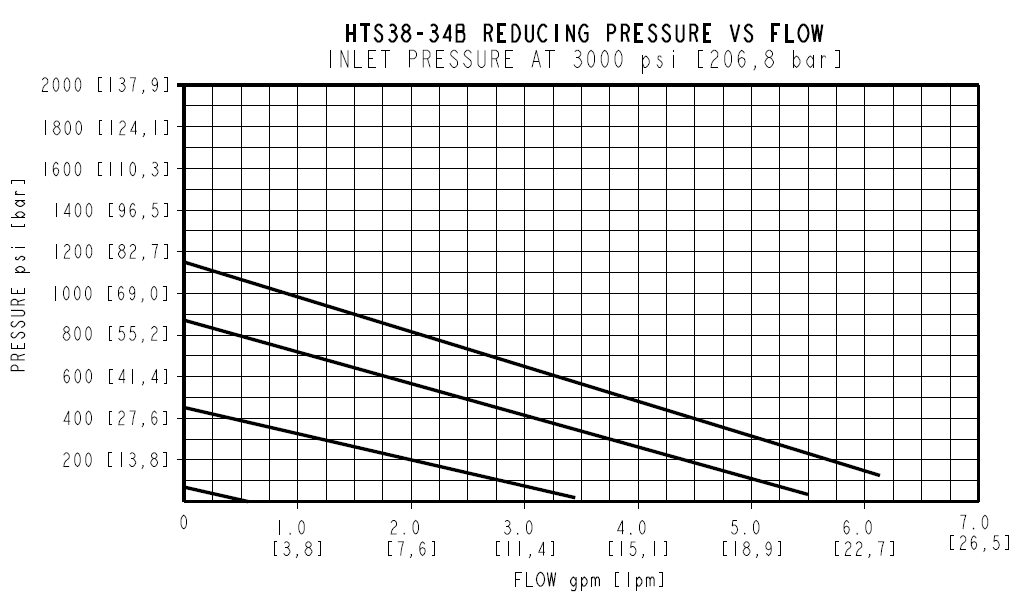

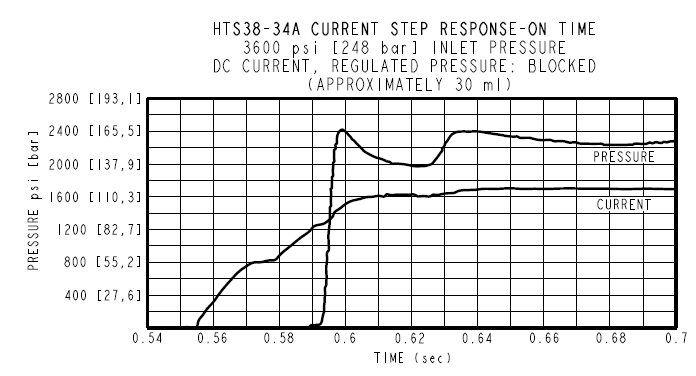

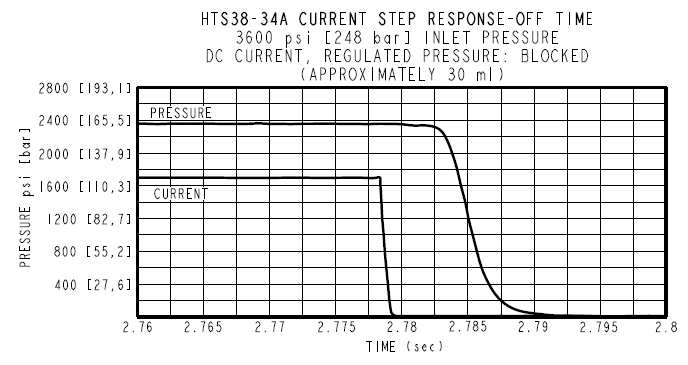

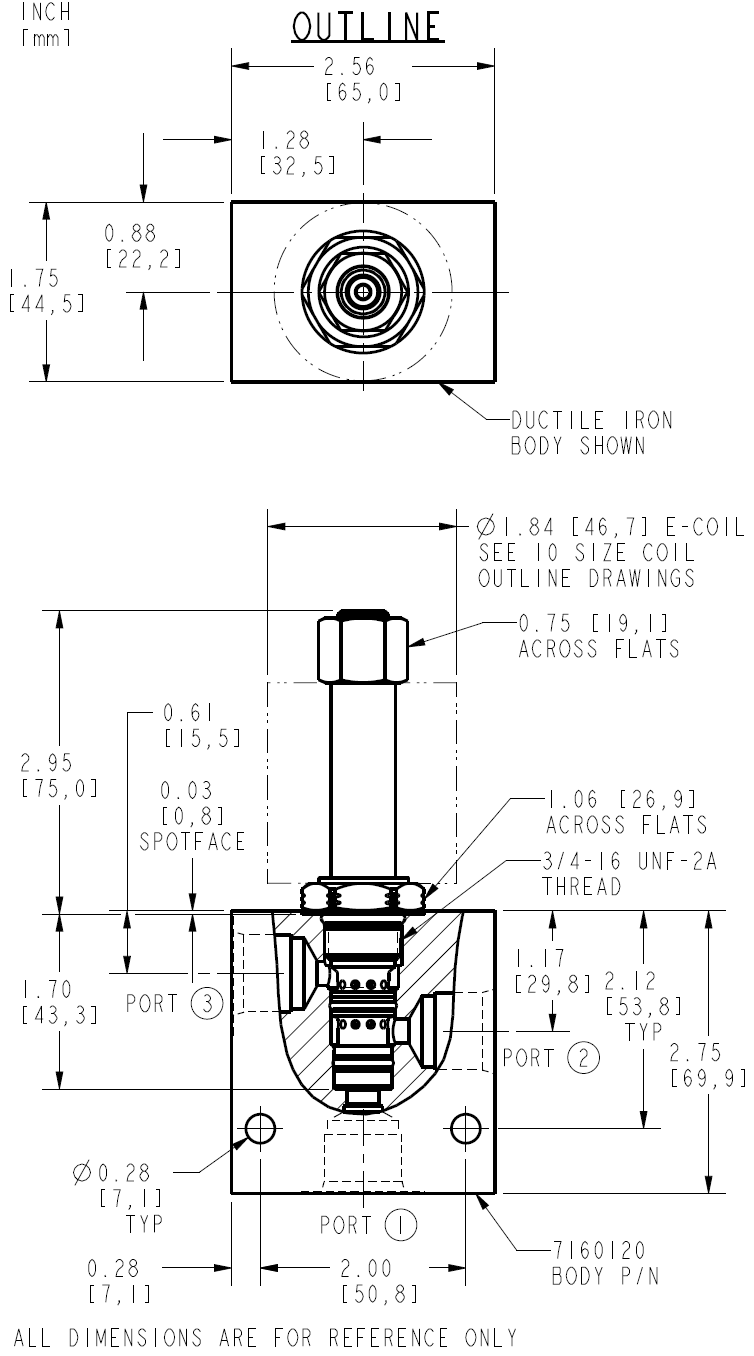

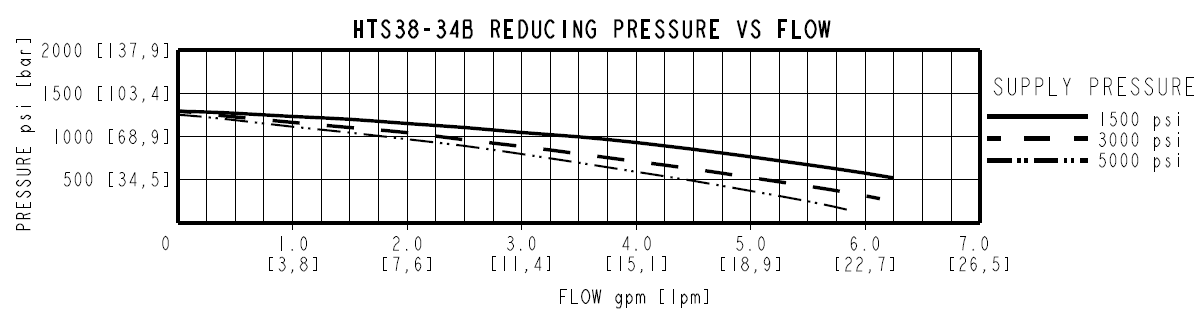

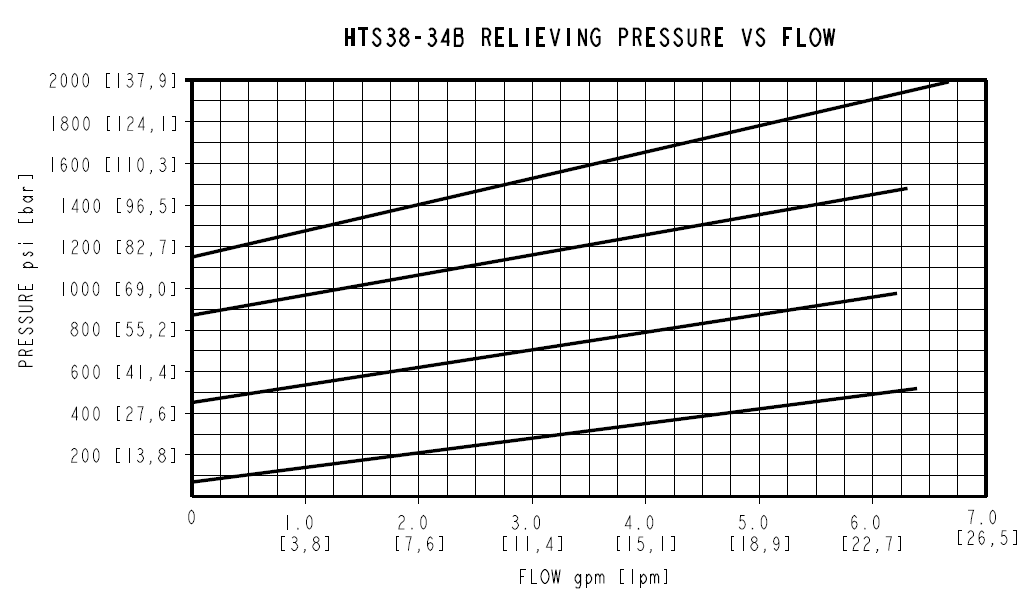

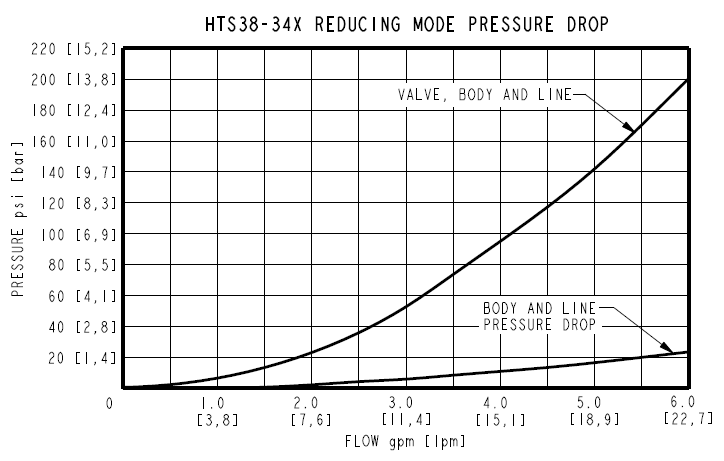

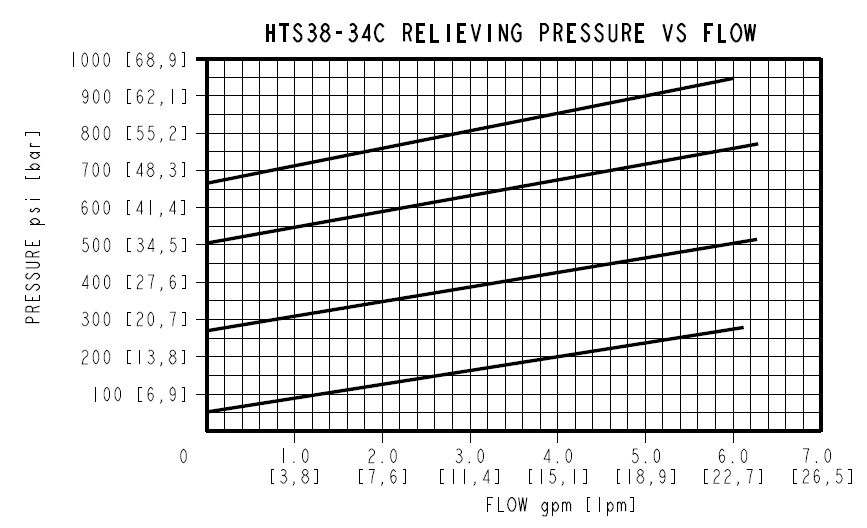

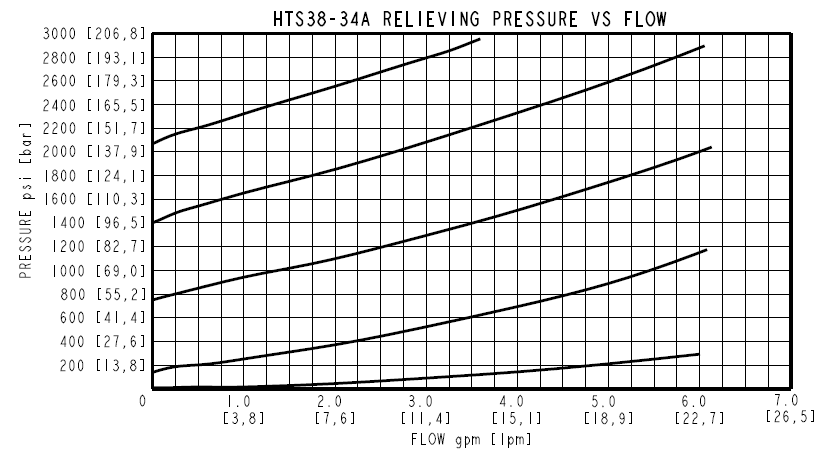

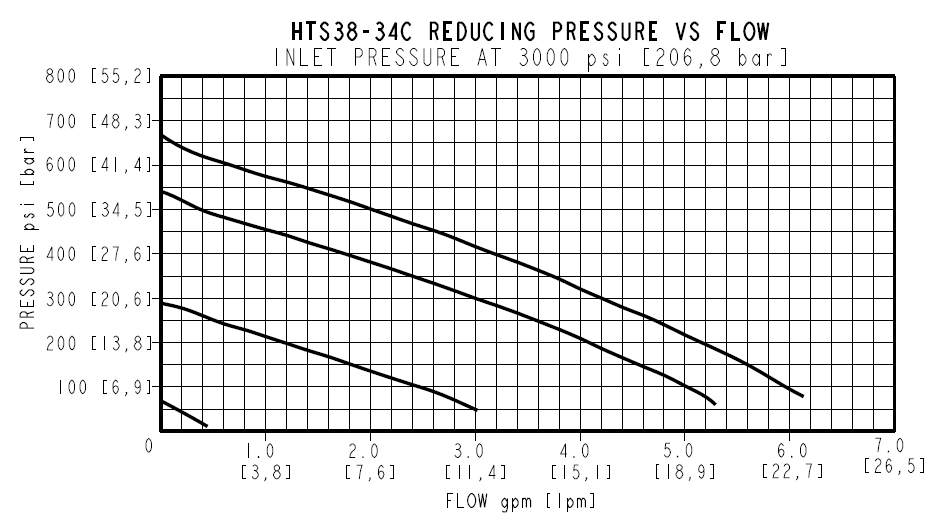

all tests done in lab with Mobil DTE24 32 cSt @ 40 °C (104 °F)
