Cartridge Valves - Electro-proportional Valves - Pressure reducing

VEP-5A-3R-06

Note: Coils must be ordered separately.

General:
Weight:
  • 0.3 kg (0.66 lbs)
Installation orientation:
  • Optional
Label Needed:
  • -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure port 2:
Max. pressure admitted port 1:
Max. flow:
Max. internal leakage:
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code
  • material no.
Seal kit coil:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • S5
Supply voltage:
  • 12 DC
Nominal voltage:
  • ± 10%
Power consumption:
  • 23 W
Duty cycle:
  • 100%
Type of protection:
  • See data sheet RE 18325-90

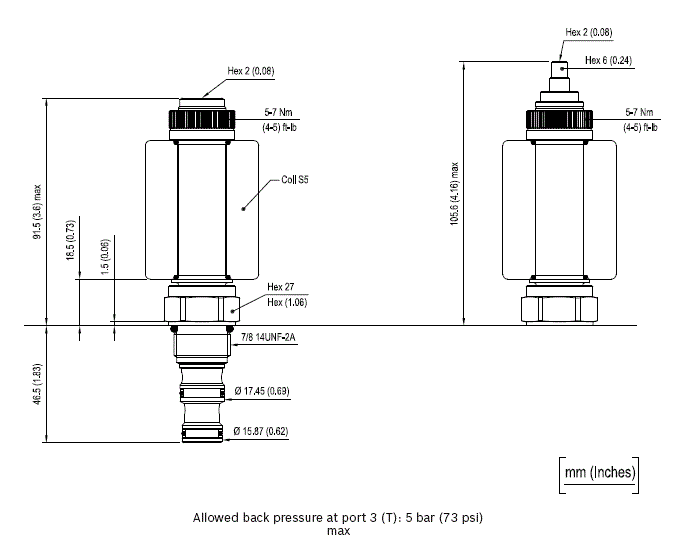

RE18323-60-dim(2023-11-08)

Proportional valves direct acting pressure reducing

Note (1): It is recommended to use coil 12 DC.

Note (2): It is recommended to bleed air carefully before operation.

Note (3): Performance using coil without diode.

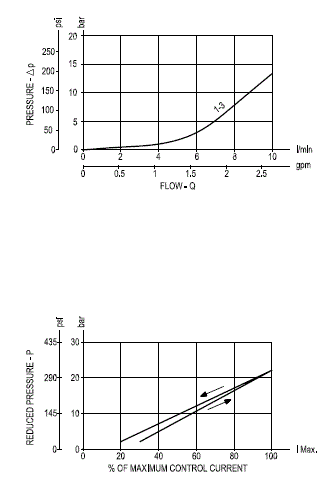

RE18323-60-02(2023-11-08)

I
P bar (psi)
Coils
I min:
0.45 A
2 (29)
12 DC
I max:
2.0 A
22 (319)
12 DC
PMW Frequency:

120-150 Hz
Hysteresis:
< 5%

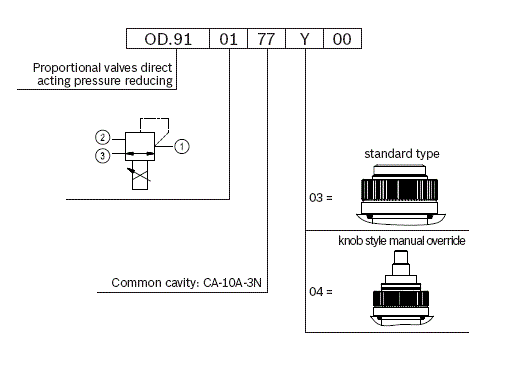

RE18323-60-order(2023-11-08)
