Cartridge Valves - Load Holding Valves - Pilot to close check

VUPC-12A

RE18319-37-01(2023-11-01)
Description

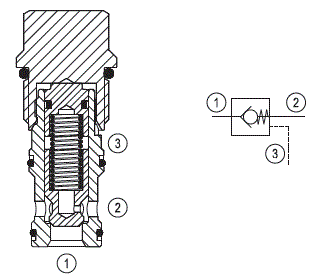

When pressure at 1 rises above the spring bias pressure, the poppet is lifted and flow allowed from 1 to 2. The valve is closed (checked) from 2 to 1. When sufficient pilot pressure is present at port 3, the pilot piston acts to hold the poppet on its seat and flow is blocked from 1 to 2. Precision machining and hardening processes allow virtually leak-free performance in the checked condition.

¹) Only external seals for 10 valves

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 120 l/min. (32 gpm)
Pilot ratio:
  • 2:1
Max. internal leakage:
  • 5 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 81 - 95 Nm (60 - 70 ft-lbs)
Weight:
  • 0.25 kg (0.55 lbs)
Cavity:
  • CA-12A-3C (see data sheet 18325-70)
MTTFd:
  • 150 years see data sheet 18350-51
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit¹):
  • Code: RG12A9010520100
  • material no: R901111379
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

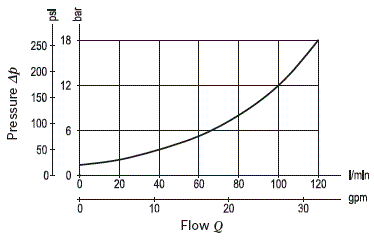

RE18319-37-02(2023-11-01)

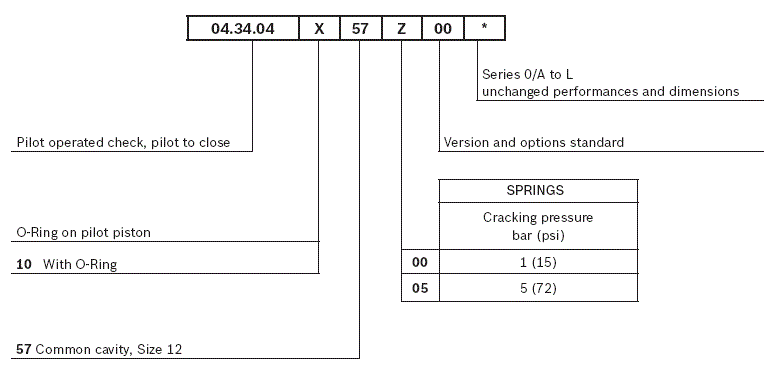

RE18319-37-order(2023-11-01)

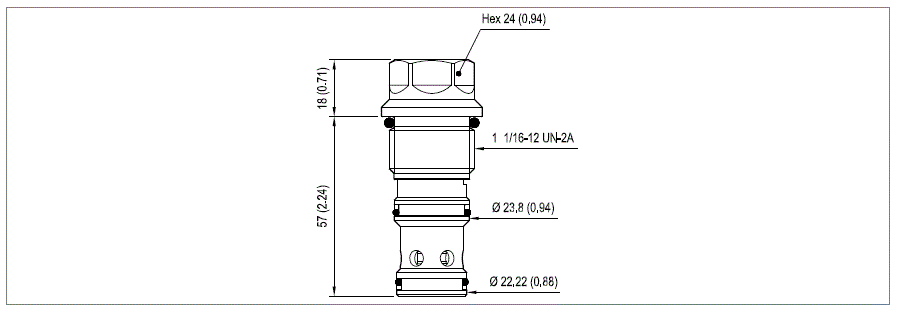

RE18319-37-dim(2023-11-01)
