Cartridge Valves - Pressure Control Valves - Pressure relief

VMSN-08A

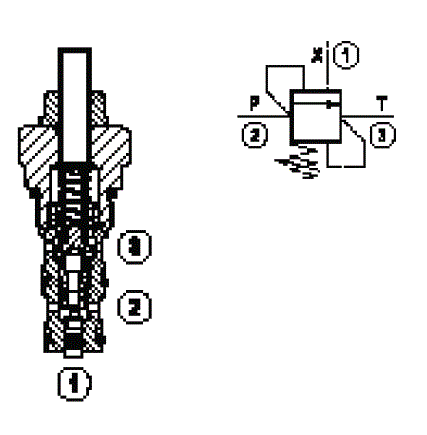

RE18318-16-01(2023-11-24)
Description

Flow is blocked from 2 to 3 until pressure increases to meet the selected valve setting, lifting the small, pilot-stage poppet from its seat. This action exhausts oil above the main-stage piston (spool type), allowing it to shift fully and unload flow from 2 through 3 with minimal pressure drop. Similarly, when remote pilot pressure at 1 exceeds the pressure setting, a secondary piston lifts the pilot-stage poppet from its seat, again exhausting fluid from 2 through 3.

¹) At 80% of pressure setting

²) Only external seals for 10 valves

General
Max. operating pressure port 1-2:
  • 350 bar (5000 psi)
Max. pressure admitted port 3:
  • 50 bar (750 psi)
Max. flow:
  • 3 l/min (1 gpm)
Max. internal leakage¹):
  • 15 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 34 - 41 Nm (25 - 30 ft-lbs)
Weight:
  • 0.14 kg (0.31 lbs)
Cavity:
  • CA-08A-3N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit²):
  • Code: RG08A3010520100
  • material no: R930000861
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

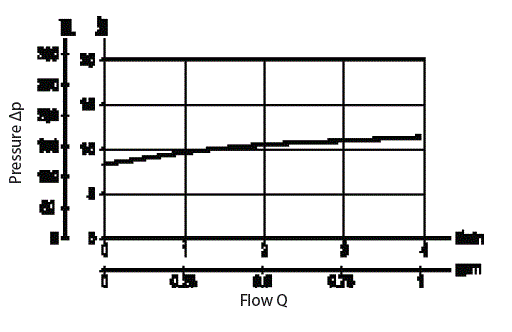

RE18318-16-02(2023-11-24)

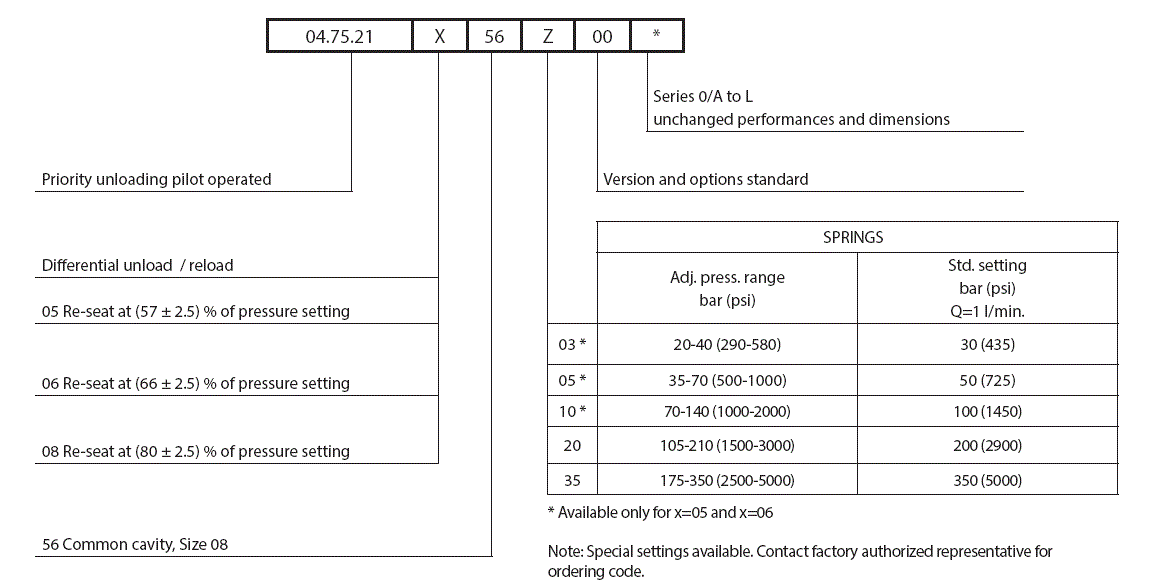

RE18318-16-order(2023-11-24)

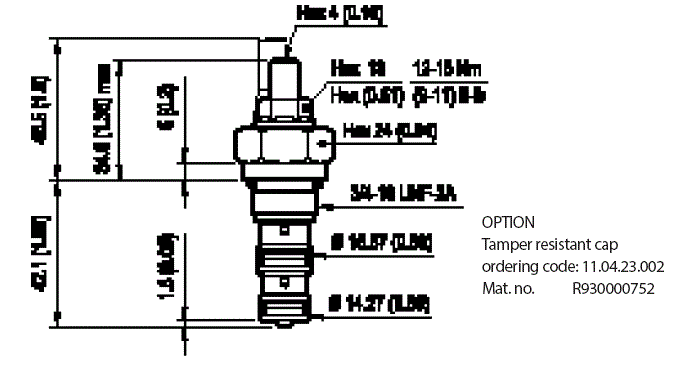

RE18318-16-dim(2023-11-24)
