Cartridge Valves - Solenoid Valves - 5-ways

VEDS-10A-53

General:
Weight (with coils):
  • 0.85 kg (1.87 lbs)
Installation position:
  • Any
Fluid Temperature:
  • -40 to 110 (-40 to 230)
Salt spray test to DIN 50021:
  • 720 h
Hydraulic:
Max. operating pressure:
  • 250 bar (3625 psi)
Max. flow:
  • 25 l/min. (7 gpm)
Max. internal leakage:
  • < 60 ml/min. (with Δp=250 bar; HLP46, Toil = 40°C)
Fluid temperature range:
  • -40 to 80 °C (-40 to 176 °F)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 5 to 1000 mm²/s (preferably 10 to 100 mm²/s):
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) ISO 4406 19/17/14
Cavity:
  • CA-10A-5N see 18325-75
Seal kit:
  • material no. R961005837
Load cycles:
  • 2 Mio.
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • Note: Note: coils must be ordered separately.
  • GZ37 see 18325-90

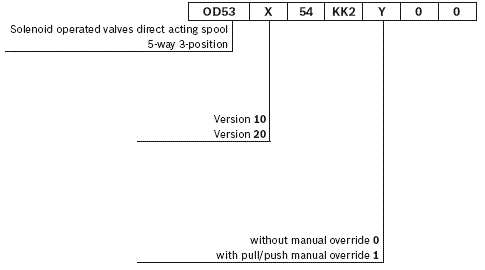

RE18324-65-order(2023-11-10)

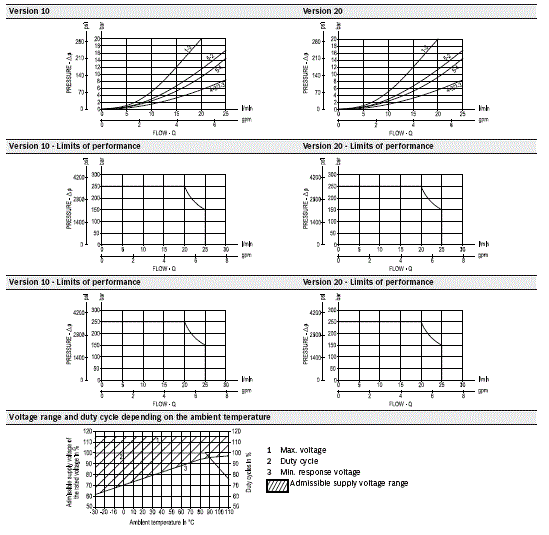

RE18324-65-02(2023-11-10)

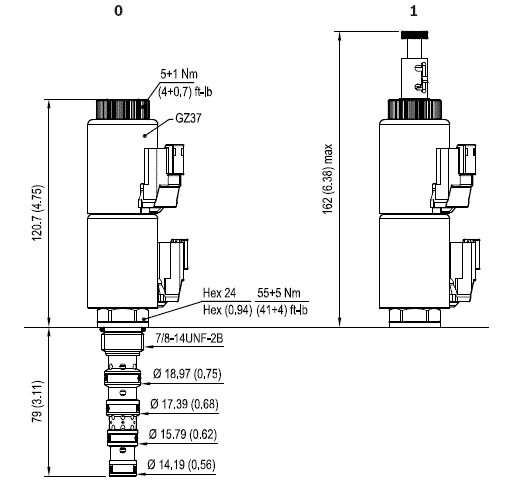

RE18324-65-dim(2023-11-10)

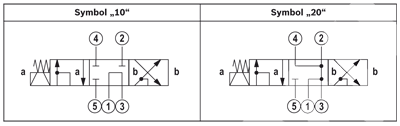

  • Solenoid operated valves direct acting spool 5-way 3-position
