Manifolds and Plates - Line Mount - Relief

VSC-30-CC

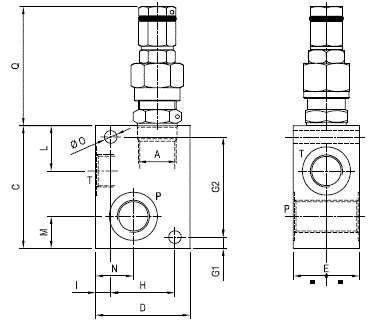

RE18331-44-dim(2023-11-24)
RE18331-44-01(2023-11-24)
General
Max flow:
  • up to 30 l/min (8 gpm)
Max operating pressure for steel body:
  • 350 bar (5000 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)
Special Cavity
Y
PORT SIZE
DIMENSIONS mm (Inches)
A
P - T
C
D
E
F
G1
G2
H
I
L
M
N
O
Q
R
S
008
09
G 1/4
65(2.56)
50(1.97)
35(1.38)
18(0.71)
6(0.24)
53(2.09)
34(1.34)
8(0.32)
24(0.95)
17(0.67)
22(0.87)
6.5(0.26)
63(2.48)

02
G 3/8
65(2.56)
50(1.97)
35(1.38)
18(0.71)
6(0.24)
53(2.09)
34(1.34)
8(0.32)
24(0.95)
17(0.67)
20(0.79)
6.5(0.26)
63(2.48)

03
G 1/2
65(2.56)
50(1.97)
35(1.38)
18(0.71)
6(0.24)
53(2.09)
34(1.34)
8(0.32)
24(0.95)
17(0.67)
18(0.71)
6.5(0.26)
63(2.48)

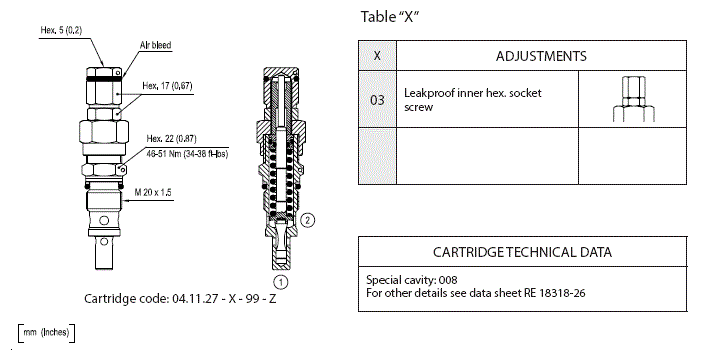

RE18331-44-02(2023-11-24)
Z
SPRINGS
Adjust pressure range bar (psi)
Pressure increase bar (psi)
Standard setting bar (psi) Q = 5 l/min

05
5-50 (75-725)
11 (160)
50 (725)

10
30-100 (435-1450)
23 (334)
100 (1450)

20
50-210 (725-3000)
47 (682)
200 (2900)

35
100-350 (1450-5000)
82 (1189)
350 (5000)

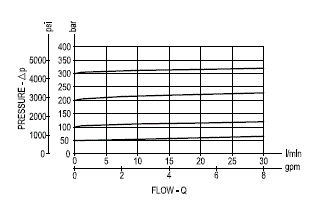

RE18331-44-03(2023-11-24)

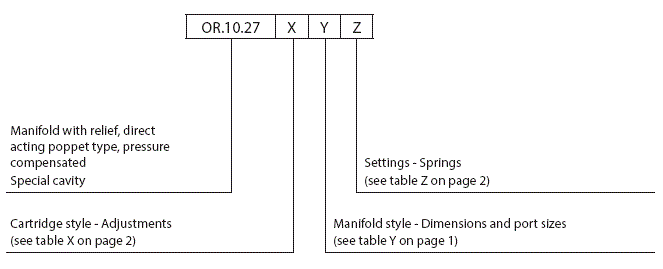

RE18331-44-order(2023-11-24)
