Manifolds and Plates - Sub plate - 2-ways + needle on A

EM-VEI-16-08A-ST-CETOP3-A1

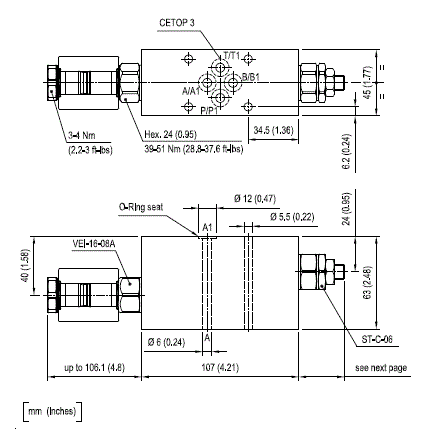

RE18332-87-dim(2023-11-21)

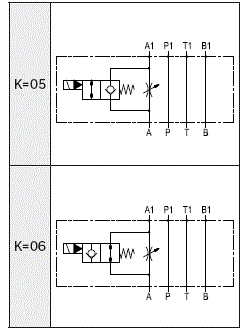

RE18332-87-01(2023-11-21)
General:
Max. flow:
  • up to 40 l/min (11 gpm)
Max. operating pressure:
  • 210 bar (3000 psi)
Standard manifold in high strength aluminium.For working pressure up to 350 bar (5000 psi) and for fatigue applications with any working pressure, steel manifolds are available upon request.:
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt)
Other technical data:
  • See data sheet 18350-50

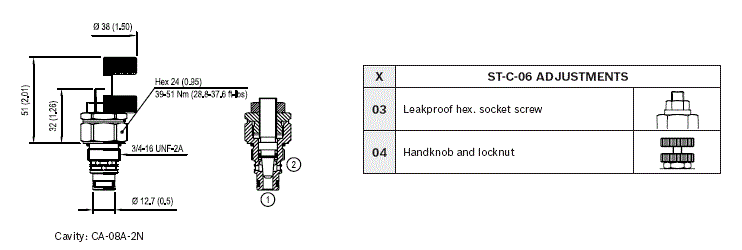

RE18332-87-02(2023-11-21)

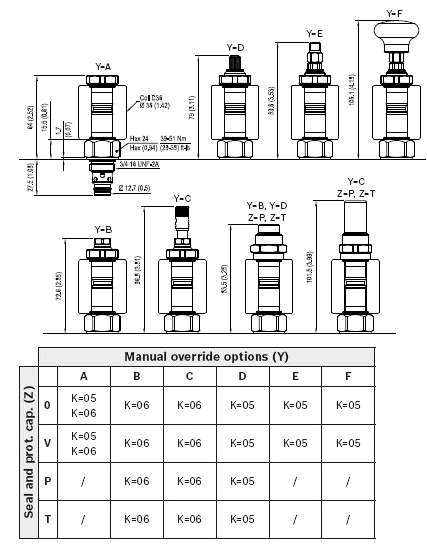

RE18332-87-03(2023-11-21)
General:
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
  • 350 bar (5000 psi)
Flow range:
  • 0.5 - 40 l/min (0.1 - 11 gpm)
Max. internal leakage:
  • 5 drops/min.
Switching time:
  • Opening ≤ 50 ms
  • Closing ≤ 100 ms
Fluid temperature range:
  • -20 to 80 °C (-4 to 176 °F)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
  • 39 - 51 Nm (29 - 38 ft-lbs)
Recommended degree of fluid contamination:
  • Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14
MTTFd:
  • 150 years (see 18350-51)
Cavity:
  • CA-08A-2N (see 18325-70)
Other technical data:
  • See data sheet 18350-50
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Label Needed:
  • See characteristic curve
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

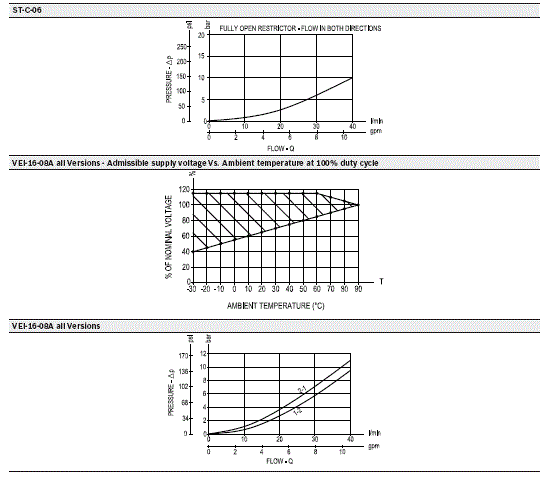

RE18332-87-04(2023-11-21)

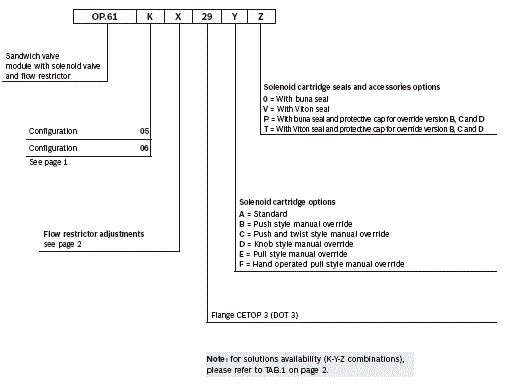

RE18332-87-order(2023-11-21)
