Description
Magnet wire winding overmolded 30% glass filled polyester, and enclosed in a three piece zinc plated metal shell.

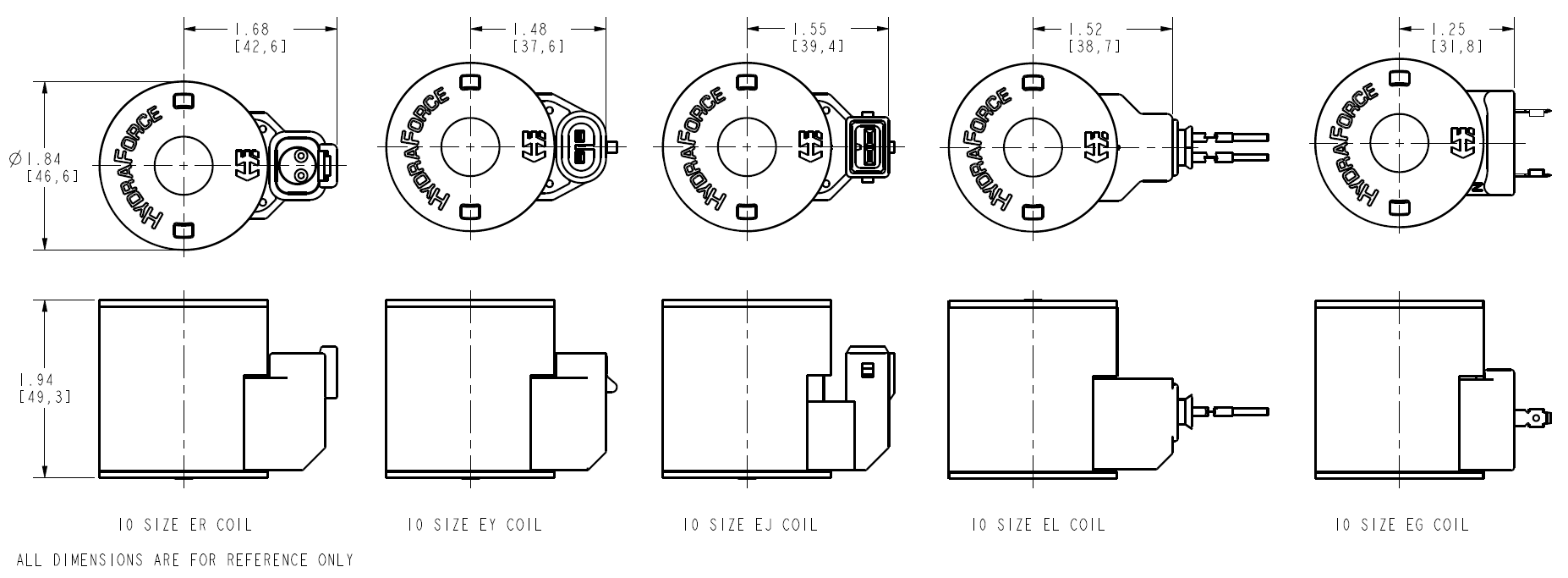

Coil_10-XXEX/X
E COIL 10 SIZE
Properties
Magnet wire:
- U.S. class N 200 °C (392 °F) minimum rating
Mating connector:
- DT06-2S-P012 DEUTSCH DT04-2P
- DELPHI/PACKARD number 12052641 METRI-PACK 150-2M
Coil metal frame:
- plated for 1,000 hours of salt spray per ASTM B117-09 before corrosion (red rust)
Weight:
- 0.37 kg (0.82 lb)
Electrical Specifications
Voltage
Resistance
Inductance
Initial current draw
Initial power
10
4.78 Ohm ±3%
14.9 mH ±5%
2.09 A
20.92 W
12
7.09 Ohm ±3%
15.3 mH ±5%
1.69 A
20.31 W
20
19.12 Ohm ±5%
51.51 mH ±5%
1.05 A
20.92 W
24
28.50 Ohm ±5%
70.18 mH ±5%
0.84 A
20.21 W
36
63.21 Ohm ±5%
182.73 mH ±5%
0.57 A
20.5 W
48
116.51 Ohm ±5%
231.2 mH ±5%
0.41 A
19.78 W

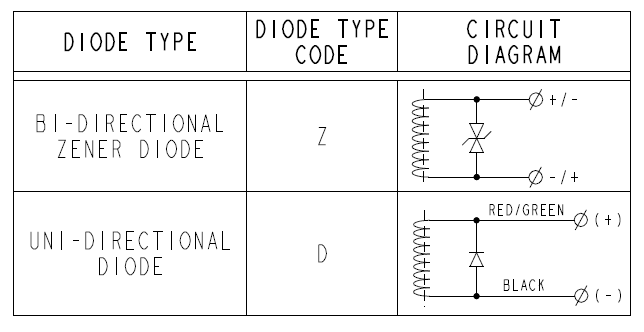

Diodes
Bidirectional Zener Diode Parameters
Maximum clamping voltage:
- 45.7 V 12 Vdc coil
- 64.8 V 24 Vdc coil
Maximum peak pulse current:
- 13.2 A 12 Vdc coil
- 9.3 A 24 Vdc coil
Reverse standoff voltage:
- 28.2 V 12 Vdc coil
- 40.2 V 24 Vdc coil
Maximum reverse leakage:
- 5.0 µA 12, 24 Vdc coil
Breakdown voltage:
- 31.4 to 34.7 V 12 Vdc coil
- 44.7 to 49.4 V 24 Vdc coil
Diode part number:
- 6110163 12 Vdc coil (ref)
- 4000063 24 Vdc coil (ref)
Ultra-fast Diode Parameters (12/24 Vdc Coil)
Average forward current:
- 3.5 A
Repetitive peak reverse voltage:
- 600 V
Diode part number:
- 4002474

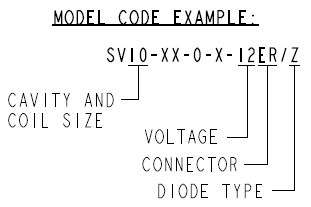

Old Number
New Number
Code
Vols
Termination
UL
Diode
4317210
R930091096
10 EL
10
DUAL LEADS, IP69K
true
false
4303710
R930091026
10 ER
10
DEUTSCH DT04-2P, IP69K
true
false
4325310
R935207870
10 ER/A
10
DEUTSCH DT04-2P, IP69K
false
false
4325210
R935207841
10 ER/A/Z
10
DEUTSCH DT04-2P, IP69K
false
true
4304110
R930091038
10 ER/Z
10
DEUTSCH DT04-2P, IP69K
true
true
4305882
R930091061
12 EG
12
DIN 43650, IP65
true
false
4305612
R930091051
12 EJ
12
AMP Jr. TIMER, IP67
true
false
4305712
R930091053
12 EL
12
DUAL LEADS, IP69K
true
false
4317212
R935004076
12 EL
12
DUAL LEADS, IP69K
true
false
4307212
R935003996
12 EL/W/Z
12
MALE 2-PIN WEATHERPACK, IP65
true
true
4307112
R930091075
12 EL/Z
12
DUAL LEADS, IP69K
true
true
4303712
R930094305
12 ER
12
DEUTSCH DT04-2P, IP69K
true
false
4325312
R935207848
12 ER/A
12
DEUTSCH DT04-2P, IP69K
false
false
4325212
R935207846
12 ER/A/Z
12
DEUTSCH DT04-2P, IP69K
false
true
4304112
R930097095
12 ER/Z
12
DEUTSCH DT04-2P, IP69K
true
true
4303512
R930091021
12 EY
12
METRI-PACK 150 2M, IP69K
true
false
4303912
R930091032
12 EY/Z
12
METRI-PACK 150 2M, IP69K
true
true
4303720
R935003832
20 ER
20
DEUTSCH DT04-2P, IP69K
true
false
4325320
R935207873
20 ER/A
20
DEUTSCH DT04-2P, IP69K
false
false
4325220
R935207875
20 ER/A/Z
20
DEUTSCH DT04-2P, IP69K
false
true
4305884
R930091063
24 EG
24
DIN 43650, IP65
true
false
4305624
R930091052
24 EJ
24
AMP Jr. TIMER, IP67
true
false
4305724
R930091054
24 EL
24
DUAL LEADS, IP69K
true
false
4307224
R935003998
24 EL/W/Z
24
MALE 2-PIN WEATHERPACK, IP65
true
true
4307124
R930091076
24 EL/Z
24
DUAL LEADS, IP69K
true
true
4303724
R978028637
24 ER
24
DEUTSCH DT04-2P, IP69K
true
false
4325324
R935207877
24 ER/A
24
DEUTSCH DT04-2P, IP69K
false
false
4325224
R935207849
24 ER/A/Z
24
DEUTSCH DT04-2P, IP69K
false
true
4304124
R930091040
24 ER/Z
24
DEUTSCH DT04-2P, IP69K
true
true
4303524
R930091022
24 EY
24
METRI-PACK 150 2M, IP69K
true
false
4303924
R930091033
24 EY/Z
24
METRI-PACK 150 2M, IP69K
true
true
4325336
R935207878
36 ER/A
36
DEUTSCH DT04-2P, IP69K
false
false
4303748
R930091030
48 ER
48
DEUTSCH DT04-2P, IP69K
true
false
