Cartridge Valves - Electro-proportional Valves - Flow regulator

VEP-5A-2Q-09

Note: Coils must be ordered sepately.

General:
Weight:
  • 0.32 kg (0.71 lbs)
Installation orientation:
  • Optional
Fluid Temperature:
  • -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Flow range:
Max. internal leakage (*):
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
MTTFD:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code
  • material no.
Seal kit coil:
  • code
  • material no.
Other technical data:
  • Note: (*) Measure at 210 bar (3000 psi). Oil at 46 cSt.
Electrical:
Type of voltage:
Coil type:
Supply voltage:
Nominal voltage:
Power consumption:
Duty cycle:
Type of protection:

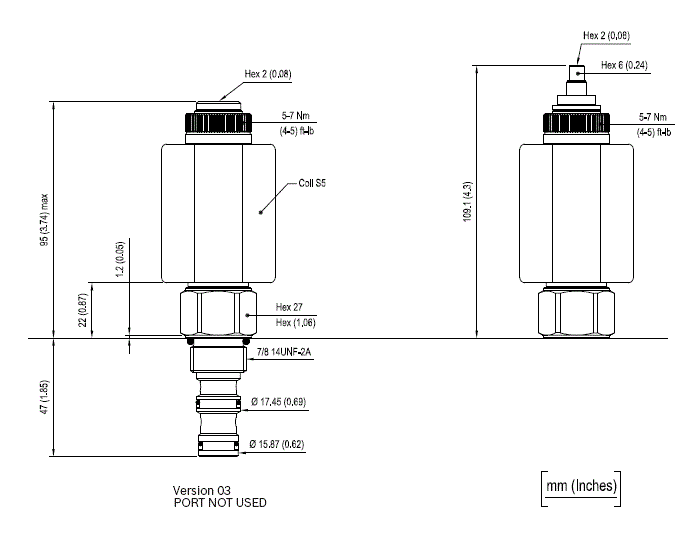

RE18323-63-dim(2023-11-08)

Proportional valves not compensated flow regulator

Note (1): It is recommended to use coil 12 DC.

Note (2): Performance using coil without diode.

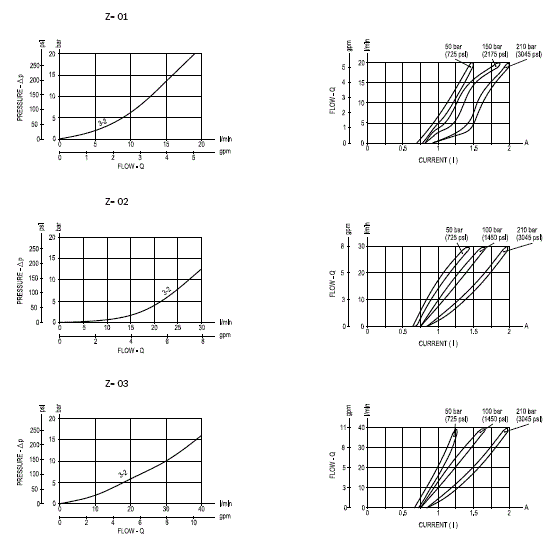

RE18323-63-02(2023-11-08)
PMW Frequency: 120-150 Hz
Hysteresis: < 5%

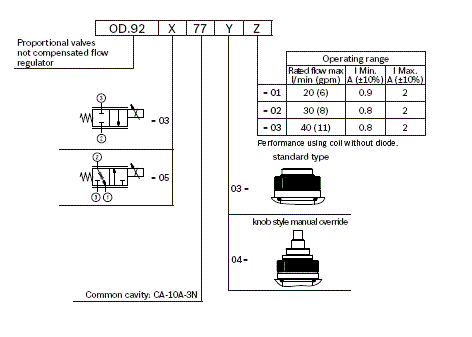

RE18323-63-order(2023-11-08)
