Cartridge Valves - Electro-proportional Valves - Flow regulator
VEPN-19E-16
Technical data
General:
Weight:
- 0.20 kg (0.45 lbs)
Installation orientation:
- Optional
Fluid Temperature:
- -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Flow range:
Fatigue cycle life:
Max. internal leakage:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at
viscosities of 15 to 380 mm2/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
- code material no.
Seal kit coil:
- code material no.
Other technical data:
Electrical:
Type of voltage:
- DC voltage
Coil type:
- R7
Supply voltage:
- 12 - 24 DC
Nominal voltage:
- ± 10%
Power consumption:
- 28 W
Duty cycle coil:
- 100
Type of protection:
Note: Coils must be ordered separately- See data sheet 18325-90

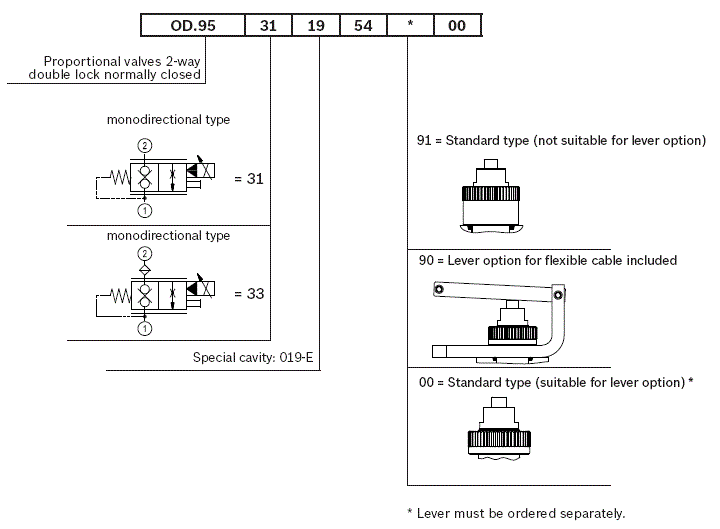

Ordering code

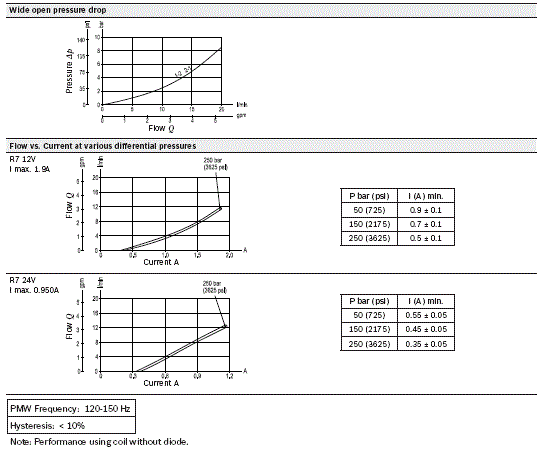

Characteristic curve

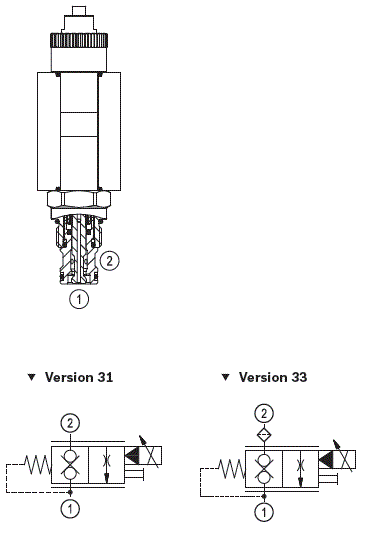

Dimensions
