Cartridge Valves - Solenoid Valves - 3-ways

VED-10A-32

General:
Weight:
  • 0.22 kg (0.49 lbs)
Installation orientation:
  • Optional
Fluid Temperature:
  • -30 to 60 (-22 to 140) - coil 30W
Hydraulic:
Max. operating pressure port 2-3:
Max. operating pressure port 1:
Max. flow:
Max.internal leakage (*):
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
MTTFd:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code
  • material no.
Seal kit coil:
  • code
  • material no.
Other technical data:
  • Note: (*) Measured at 210 bar (3000 psi) (oil at 46 cSt)
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • S7
Supply voltage:
  • See data sheet RE 18325-90
Power consumption:
  • 30 W
Duty cycle coil:
  • 100 %see RE 18325-90
Type of protection:
  • See data sheet RE 18325-90
Nominal voltage:
  • Note: Note: Coils must be ordered separately.
  • -10% + 10% coil 30W

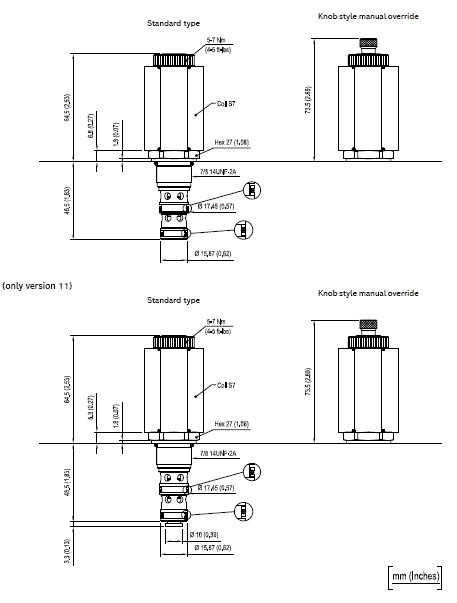

RE18324-58-dim(2023-11-10)

Solenoid operated valve, spool 3-way 2-position

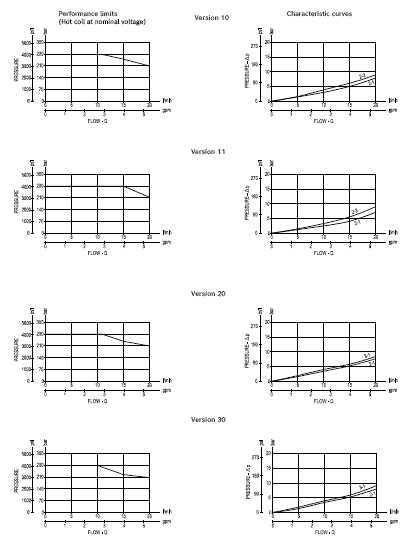

RE18324-58-02(2023-11-10)

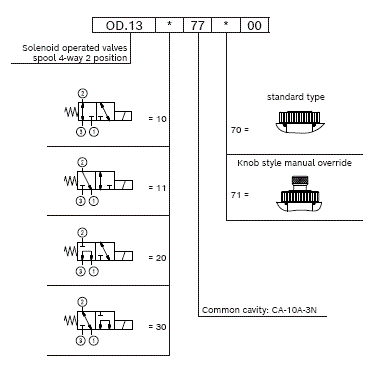

RE18324-58-order(2023-11-10)
