Cartridge Valves - Solenoid Valves - 4-ways

VED-16-08A-42

* See performance limits at page 3.

General:
Weight:
  • 0.14 kg (0.31 lbs)
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -40 to 100 (-40 to 212)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Max. flow:
Max. internal leakage at 230 bar:
Fatigue cycle life:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFd:
Cavity:
Seal kit:
  • code
  • material no.
Seal kit coil and standard cap:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Admitted voltage tolerance: -10% / +25% of nominal voltage at 60°C amb. T:
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

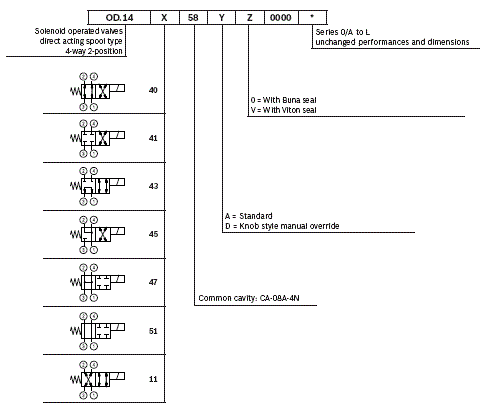

RE18324-09-order(2023-11-08)

Note: in case of need of performance limits at specific different working conditions, please consult factory.

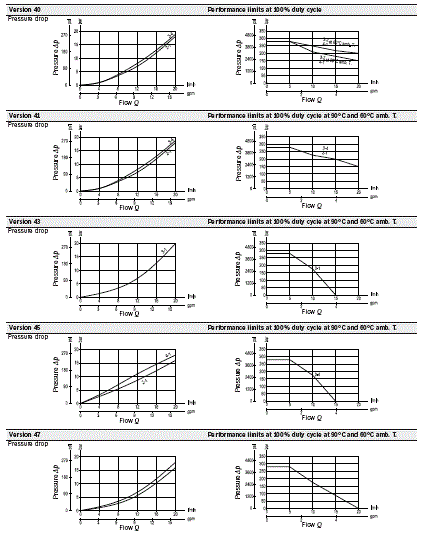

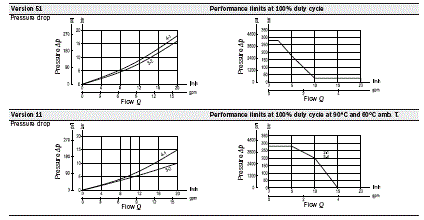

RE18324-09-02(2023-11-08) RE18324-09-03(2023-11-08)
Minimum switching voltage for all versions and 100% ED
Amb. T
Voltage required
60°C
-10% of V nominal
90°C
V nominal

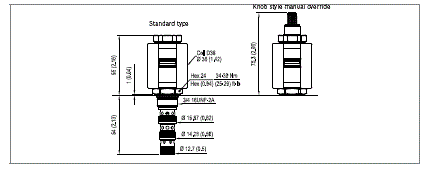

RE18324-09-dim(2023-11-08)

Solenoid operated valves, direct acting spool type 4-way 2-position
