New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.


Cartridge Valves - Solenoid Valves - 2-ways
VEI-16-16A-NC

PATENT PENDING

Technical data
Technical data
General:
Weight:
- 0.25 kg (0.55 lbs)
Installation orientation:
- Unrestricted
Fluid Temperature:
- -40 to 100 (-40 to 212)
Fluid Temperature:
- -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Flow range:
Fatigue cycle life:
Max. internal leakage: 20 drops/min.:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at
viscosities of 20 to 380 mm2/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFD:
Common cavity:
Seal kit for X=05:
- code
- material no.
Seal kit for X=03,31:
- code
- material no.
Seal kit coil and standard cap:
- code
- material no.
Seal kit coil and protective cap only for Y=D:
- code
- material no.
Other technical data:
Electrical:
Type of voltage:
- DC voltage
Coil type:
- D36
Supply voltage:
- See data sheet 18325-90
Label Needed:
- See characteristic curve
Power consumption:
- 20 W
Type of protection:
Note: Coils must be ordered separately
- See data sheet 18325-90

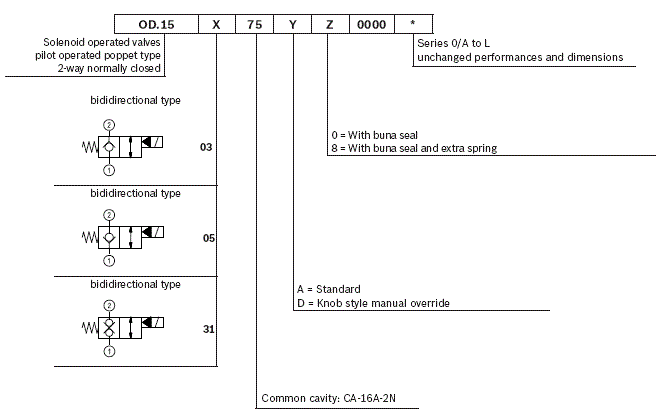

Ordering code

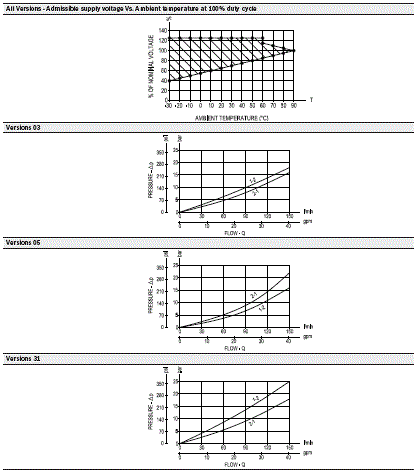

Characteristic curves

Dimensions

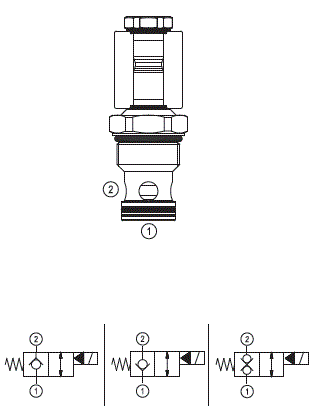

Solenoid operated valves, poppet 2-way normally closed
