Compact Motion Control Valves - Flow Control Valves - Flow regulator

VRFC3-VS-VEI

Description

A constant pressure compensated flow rate is established from E to R, while a minimum pressure differential of appr. 5 bar (70 psi) exists between the two ports. Input flow supplied to E in excess of the regulated output at R is by-passed to T. Output flow can be varied from closed to the nominal maximum rating of the valve and it can be dumped to Tank in two ways: 1) by a N.O. solenoid cartridge which determines Regulated flow dumping when de-energized; 2) by a pilot relief cartridge which determines Regulated flow dumping if the maximum allowed pressure is reached. Reverse flow from R to E is limited by the selected opening of the restrictor and is not pressure compensated. Flow from T to E or from T to R is not permitted.

General:
Operating pressure:
  • 210 bar (3000 psi)
Adj. relief valve: range 105-210 bar (1523-3000 psi) Standard setting: 210 bar (3000 psi):
QE= max. inlet flow “E” port (see “Dimensions”):
QR= max. regulated flow “R” port (see “Dimensions”):
Flow range adjustment:
  • 0 - 3 turns
Pressure drop from E-T: cracking pressure 6 bar (90 psi), full flow 12 bar (175 psi):
Weight:
  • see “Dimensions”
Manifold material:
  • Note: Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.
  • Aluminium
Fluid:
  • Mineral oil (HL, HLP) according to DIN 51524
Fluid temperature range:
  • -20 °C to 80 (-4 to 176 °F)
Viscosity range:
  • 20 to 380 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
The coil must be ordered separately:
Other technical data:
  • Note: Note: for applications outside these parameters, please consult us.
  • see data sheet 18350-50

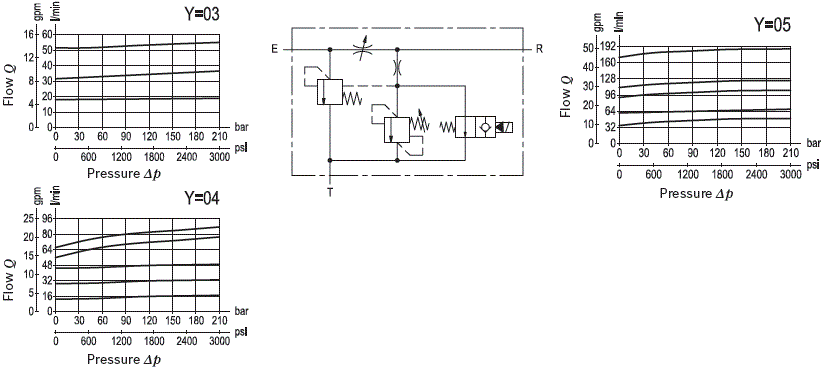

RE18309-47-01(2023-10-27)

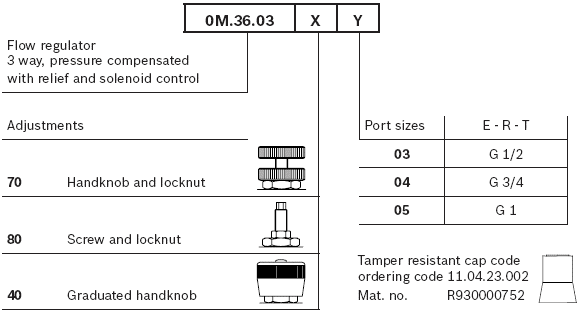

RE18309-47-order(2023-10-27)

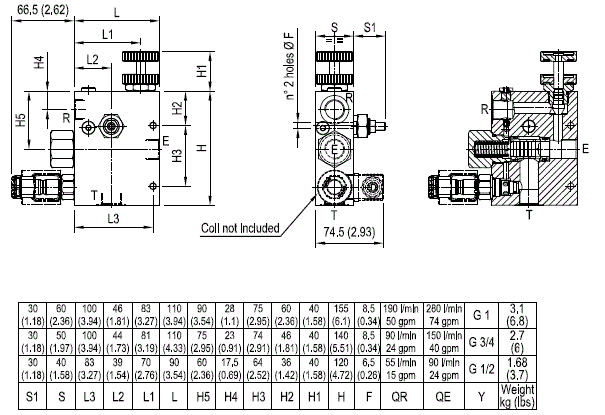

RE18309-47-dim(2023-10-27)
