Cartridge Valves - Pressure Control Valves - Relief - Pilot Operated - Poppet Type - Reverse Check

RV10-28

RELIEF VALVE PILOT OPERATED U.S. PATENT 6,805,155 and 7,069,945

Overview

Description

The RV10-28X is a screw-in, cartridge style, pilot operated, relief valve with reverse free flow check valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response, low hysteresis, low leakage, low pressure override and reverse free flow features. The RV10-28X blocks flow from port 1 to port 2 until sufficient pressure is present at port 1. Relief flow path from port 1 to port 2. Reverse flow from port 2 to port 1 occurs when pressure at port 2 is higher than pressure at port 1.

Features

  • Variety of adjustment options; adjustments cannot be backed out of the valve.
  • Can be operated in relief valve mode or check valve mode.
  • Several pressure ranges available.
  • Hardened spool and cage for long life.
  • Fast response.
  • Industry-common size.
Pressure Ratings
Pressure rating:
  • 289.6 bar (4200 psi)
Proof pressure:
  • 620.5 bar (9000 psi)
Burst pressure:
  • 1241.1 bar (18000 psi)
Pressure setting range:
  • 13.8 to 289.6 bar (200 to 4200 psi)
Crack pressure defined:
  • Pressure evident at 7.6 lpm (2.0 gpm) attained
Reseat pressure:
  • Nominal 90% of crack pressure
Crack pressure:
  • 2.1 bar (30 psi) Check valve mode
Approximate pressure increment per adjuster turn:
  • 98.6 bar (1430 psi)
Flow Ratings
Flow rating:
  • 113.6 lpm (30 gpm) Port 1 to 2
Maximum internal leakage:
  • 0.53 ml/min (10 drops/min) Max 80% of nominal setting
Other Ratings
Response:
  • 0.06 s RV to CV at 241 bar (3500 psi) 53 lpm (14 gpm)
  • 0.3 s CV to RV at 241 bar (3500 psi) 53 lpm (14 gpm)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Fluids:
  • Mineral based or synthetic with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 18/16/13 per ISO 4406
Unit weight:
  • 0.27 kg (0.59 lb)
Internal wetted surface area:
  • 187 cm² (29.1 in²)

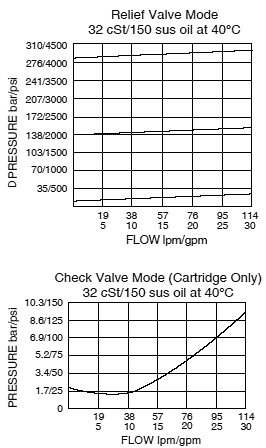

RV10-28_Flow-Pressure(2022-02-24)

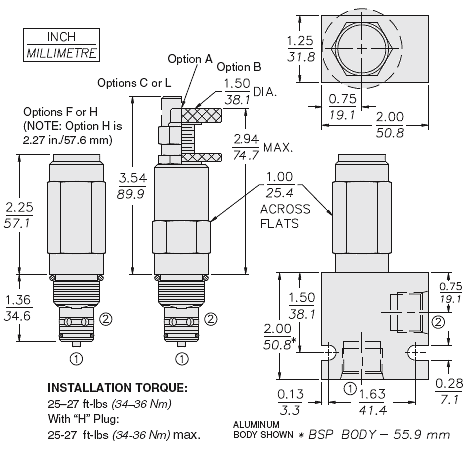

RV10-23_Dim(2022-02-24)
Cavity:
Cartridge installation torque:
  • 33.9 to 36.6 N-m (25 to 27 ft-lb)
Maximum allowable torque:
  • 66.7 N-m (50 ft-lb)
H style plug torque:
  • 33.9 N-m (25 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK10-2X-B X = seal option

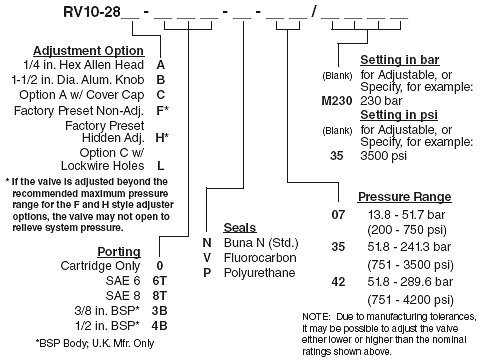

RV10-28_Order(2022-02-24)

Model Options

RV10-28F-H-J-R/S
F Adjustment Option
CODE
DESCRIPTION
A
1/4" Hex Allen Head
B
1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob
C
1/4" Hex Allen Head with Cover Cap
F
Factory Preset Non-Adjustable
H
Factory Preset Hidden Adjustment
L
1/4" Hex Allen Head with Cover Cap and Lockwire Holes
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
4B
Aluminum BSPP 1/2" (4)
4BD
Ductile Iron BSPP 1/2" (4)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
R Spring
CODE
DESCRIPTION
07
13.8 to 51.7 bar (200 to 750 psi) Spring Range
35
51.8 to 241.3 bar (751 to 3500 psi) Spring Range
42
51.8 to 289.6 bar (751 to 4200 psi) Spring Range
S Setting
CODE
DESCRIPTION
MXXX
Spring Setting in XXX bar
XX
Spring Setting in XX psi (x 100)
