Cartridge Valves - Pressure Control Valves - Pressure relief

VS-5-CF

RE18318-20-01(2023-11-22)
Description

Flow is blocked from 1 to 2 until pressure increases to meet the selected valve setting, lifting the poppet from its seat and allowing relief flow through 2 to tank. Pressure at 2 is additive to the relief setting of the valve. The cartridge is suitable only for pilot or thermal relief applications.

¹) At 80% of pressure setting

²) Only external seals for 10 valves

General
Max. operating pressure:
  • 460 bar (6600 psi)
Max. flow:
  • 1.5 l/min (0.4 gpm)
Max. internal leakage¹):
  • 15 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 27 - 33 Nm (20 - 24 ft-lbs)
Weight:
  • 0.05 kg (0.11 lbs)
MTTFd:
  • 150 years see RE 18350-51
Special cavity:
  • 348 (see data sheet 18325-75)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit²):
  • Code: RG0348010520100
  • material no: R930001669
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 20/18/15
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50
RE18318-20-02(2023-11-22)

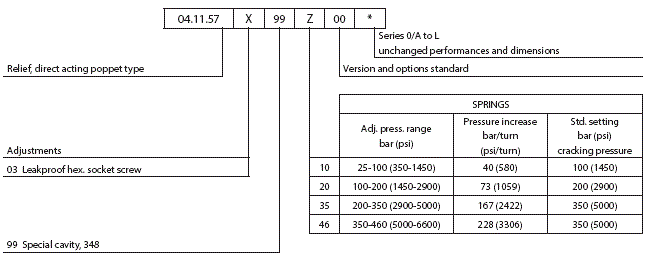

RE18318-20-order(2023-11-22)

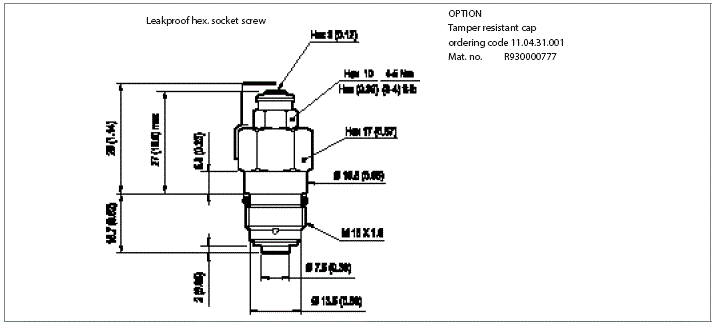

RE18318-20-dim(2023-11-22)
