Cartridge Valves - Solenoid Valves - 2-ways

VED-16-08A-NA

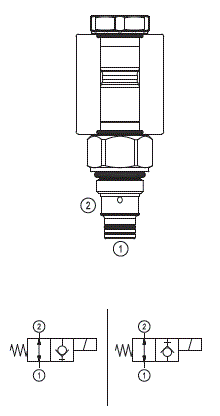

RE18324-17-01(2023-11-10)
General:
Weight:
  • 0.20 kg (0.44 lbs)
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -40 to 100 (-40 to 212)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Rated flow:
Max. internal leakage:
Switching time:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFD:
Common cavity:
Seal kit for X=02,04:
  • code
  • material no.
Seal kit coil and standard cap:
  • code
  • material no.
Seal kit coil and protective cap only for Y=B:
  • code
  • material no.
Seal kit coil and protective cap only for Y=C:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Label Needed:
  • See characteristic curve
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90
RE18324-17-order(2023-11-10)

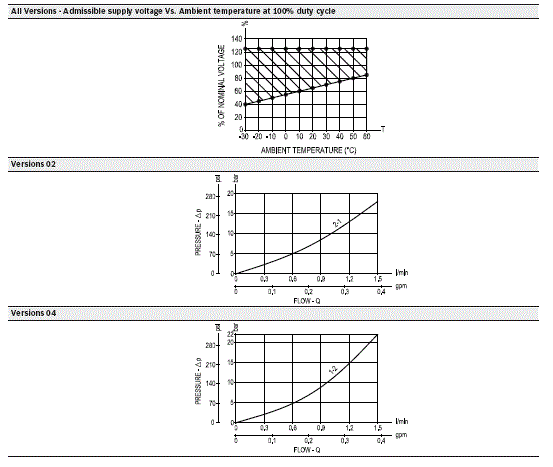

RE18324-17-02(2023-11-10)

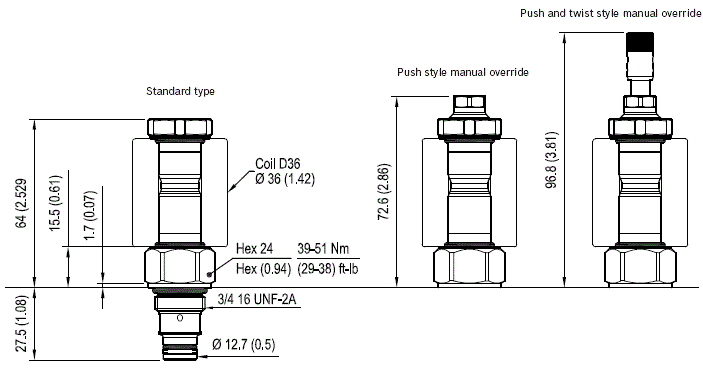

RE18324-17-dim(2023-11-10)

Solenoid operated valves, poppet 2-way normally closed
