Solenoid operated valves poppet 3-way 2-position


Cartridge Valves - Solenoid Valves - 3-ways
VEDT-08A-32

Technical Data
Note: Coils must be ordered separately.
General:
Weight:
- 0.24 kg (0.53 lbs)
Installation orientation:
- Optional
Fluid Temperature:
- -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Max. flow:
Max. internal leakage:
Fluid temperature:
Response time:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
MTTFd:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
- code
- material no.
Seal kit coil:
- code
- material no.
Other technical data:
Electrical:
Type of voltage:
- DC voltage
Coil type:
- S7
Supply voltage:
- See data sheet RE 18325-90
Power consumption:
- 30 or 26 W
Duty cycle coil:
- See performance graphs %
Type of protection:
- See data sheet RE 18325-90
Nominal voltage:
- -10% +10% coil 30W

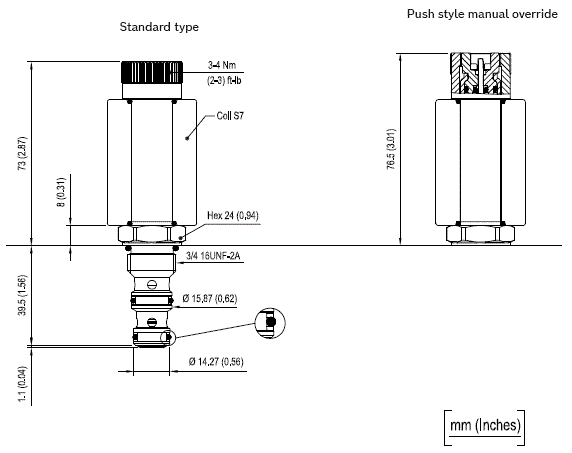

Dimensions

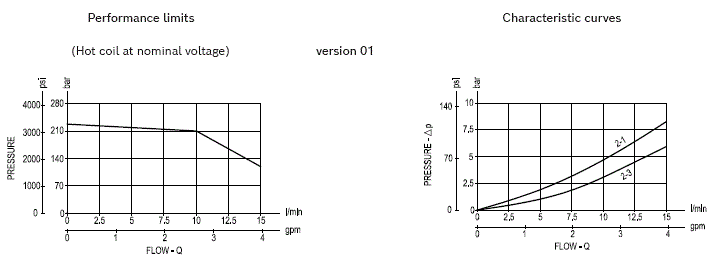

Performance graph

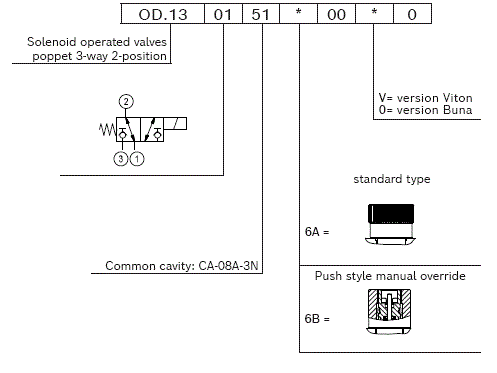

Ordering code
