Compact Directional Valves - Non-compensated and Post-compensated - Outlet elements ED Series

TC-03

Description

The outlet elements TC-03-__ are employed to connect the P and T channels of the ED elements of the Directional Valve Assembly, and to provide additional inlet port P1 and tank port T1, both with size either G 3/8 or G 1/2.

The outlet elements TC-03-__ are available in two versions: - Body made of Black Anodized Aluminium (Al).

- Body made of Yellow Zinc plated (Cr+3) Cast Iron (CI).

General
WeightTC-03-02-..-AL element:
  • 0.25 kg (0.56 lbs)
WeightTC-03-03-..-AL element:
  • 0.25 kg (0.56 lbs)
WeightTC-03-02-..-CI element:
  • 0.65 kg (1.43 lbs)
WeightTC-03-03-..-CI element:
  • 0.65 kg (1.43 lbs)
Fluid Temperature:
  • –20....+50 (-4....+122) (NBR seals)
Hydraulic
Maximum flow in P and T:
  • 50 l/min (13.2 gpm)
Maximum pressure:
  • 250 bar (3625 psi) Aluminium version (AL)
Maximum pressure:
  • 310 bar (4500 psi) Cast Iron version (CI)
Hydraulic fluidGeneral properties: it must have physical lubricating and chemical properties suitable for use in hydraulic systems such as, for example:
  • Mineral oil based hydraulic fluids HL (DIN 51524 part 1). For use of environmentally acceptable fluids (vegetable or polyglycol base) please consult us.
Fluid Temperature:
  • –20....+80°C (-4....+176°F) (NBR)
Permissible degree of fluid contamination:
  • ISO 4572: βₓ≥75 X=12...15 NAS 1638: class 9
Viscosity range:
  • Note: For applications with different specifications consult us
  • 5....420 mm²/s

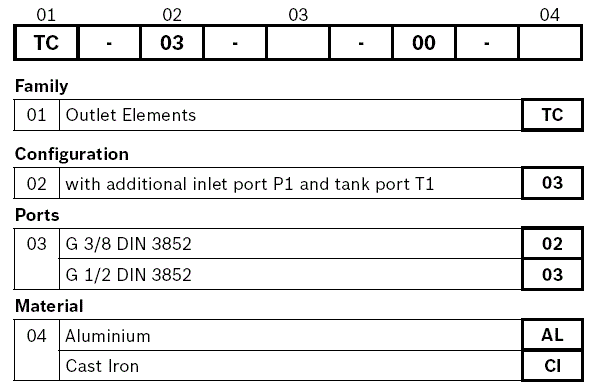

RE18301-63-order

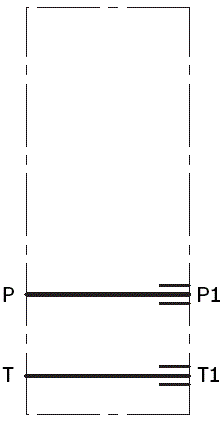

RE18301-63-sym

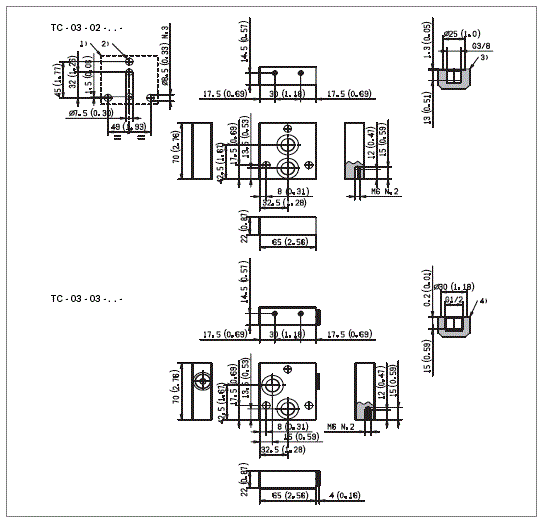

RE18301-63-dim
1
Flange specifications for coupling to the ED Directional Valve Elements.
2
For tie rod and tightening torque information see data sheet RE 18301-90.
3
Hydraulic Ports P1 and T1 size G 3/8, for TC-03-02-…
4
Hydraulic Ports P1 and T1 size G 1/2, for TC-03-03-…
