Description
The outlet elements TC-04-__ are employed to connect the P and T channels of the ED elements of the Directional Valve Assembly to the P1 and T1 ports for downstream operators. They incorporate a pressure relief cartridge which controls the maximum pressure in the P1 line. The relief setting can be checked through the Test Point port M. The TC-04-__ elements are available with body made of Black Anodized Aluminium (Al).

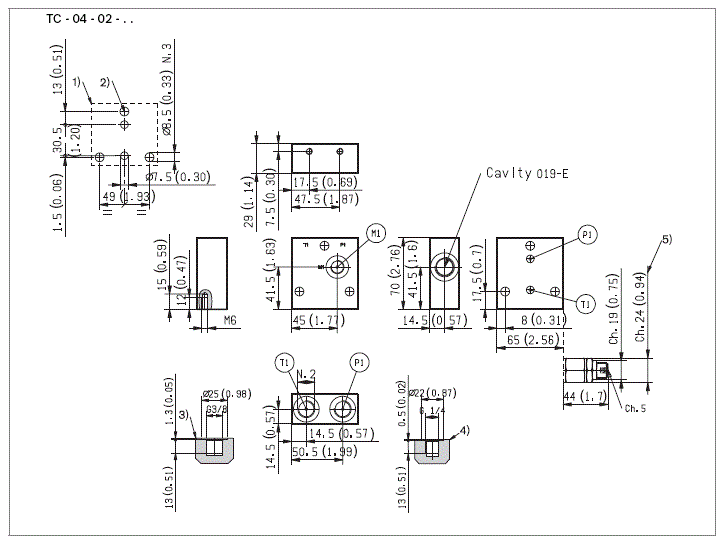

Hydraulic Ports P1 and T1 are size G 3/8, and Test Point port (M) is G 1/4.
For applications with different specifications consult us
