Compact Motion Control Valves - Pilot to Open Check Valves - Single acting

VSO-SE-DL-FCV

RE18307-09-01(2023-10-25)
Description

Flow is allowed to pass from V2 to C2 when pressure at V2 rises above the spring bias pressure and the poppet is pushed from its seat. The valve is normally closed (checked) from C2 to V2; when sufficient pilot pressure is present at V1-C1 the pilot piston acts to push the poppet from its seat and flow is allowed from C2 to V2. Precision machining and hardening processes allow virtually leak-free performance in the checked condition. For compact assembly, the C2 port is banjo bolted directly onto the actuator port.

In case of valve application in redundancy systems it is especially recommended to use version with sealed pilot piston.

General:
Operating pressure:
  • up to 210 bar (3000 psi)
Max. flow:
  • 30 l/min. (8 gpm)
Pilot ratio:
  • 4.6 : 1
Installation torque:
  • 70 - 80 Nm (52 - 59 ft-lbs)
Weight:
  • 0.7 kg (1.5 lbs)
Manifold material:
  • Note: Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.
  • Aluminium
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • see data sheet 18350-50
The version with O-Ring and heavier spring is generally recommended.:
  • Note: Note: for applications outside these parameters, please consult us.

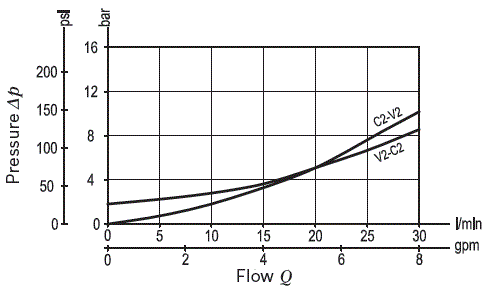

RE18307-09-02(2023-10-25)

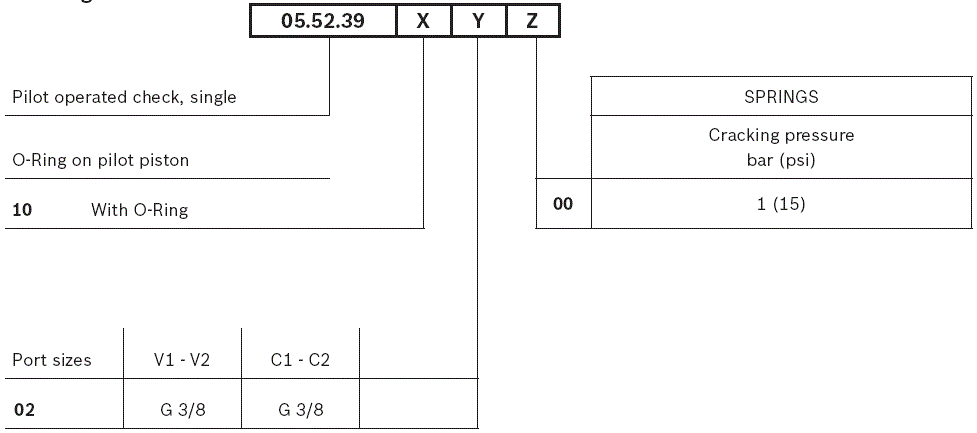

RE18307-09-order(2023-10-25)

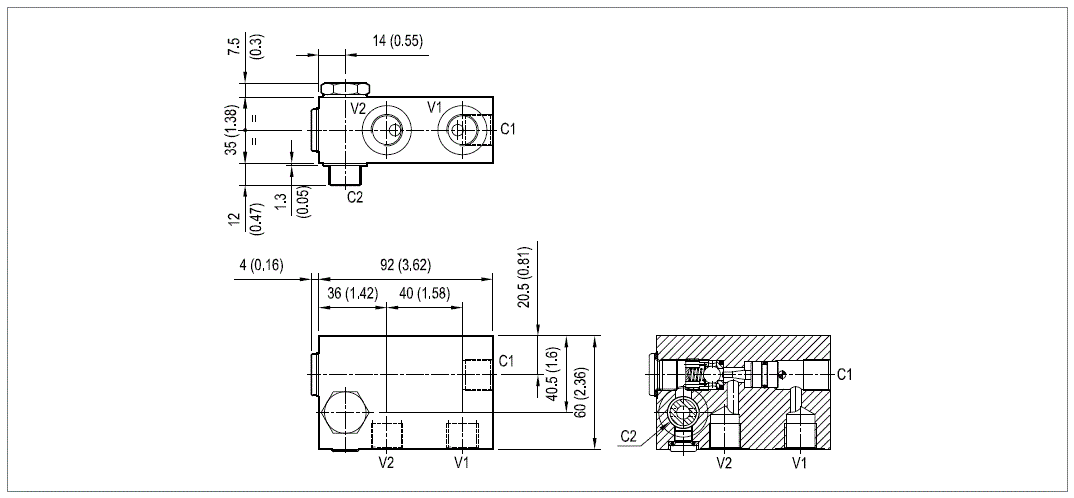

RE18307-09-dim(2023-10-25)
