Manifolds and Plates - Line Mount - Flow Regulator

VRFB-10A-C / VRFE-12A-C

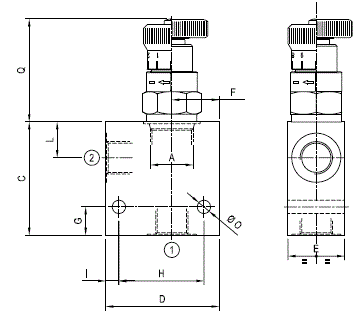

RE18331-05-dim(2023-11-24)
RE18331-05-01(2023-11-24)

To order only manifold see data sheet RE 18325-85

General
Flow:
  • adjustable (see table “Z” and performance graph)
Max operating pressure for steel body:
  • 350 bar (5000 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)
Cavity
Y
PORT SIZE
Max Flow l/min (gpm)
DIMENSIONS mm (Inches)
A
1 - 2

C
D
E
F
G
H
I
L


O
Q
R
SIZE08





























SIZE 10
03
G 1/2

see table “Z”
60(2.36)
60(2.36)
35(1.38)
25(0.98)
15(0.59)
45(1.77)
7.5(0.30)
19(0.75)


7(0.28)
55(2.17)
04
G 3/4

60(2.36)
70(2.76)
40(1.58)
30(1.18)
15(0.59)
55(2.17)
7.5(0.30)
20(0.79)


9(0.35)
SIZE 12
04
G 3/4

see table “Z”
75(2,95)
80(315)
40(1,58)
35(1,38)
20(0,79)
60(2,36)
10(0,39)
26,5(1,04)


9(0.35)
47,5(1,87)
05
G 1

75(2,95)
80(315)
50(1,97)
35(1,38)
20(0,79)
60(2,36)
10(0,39)
26,5(1,04)


9(0.35)
SIZE 16





























SIZE 20

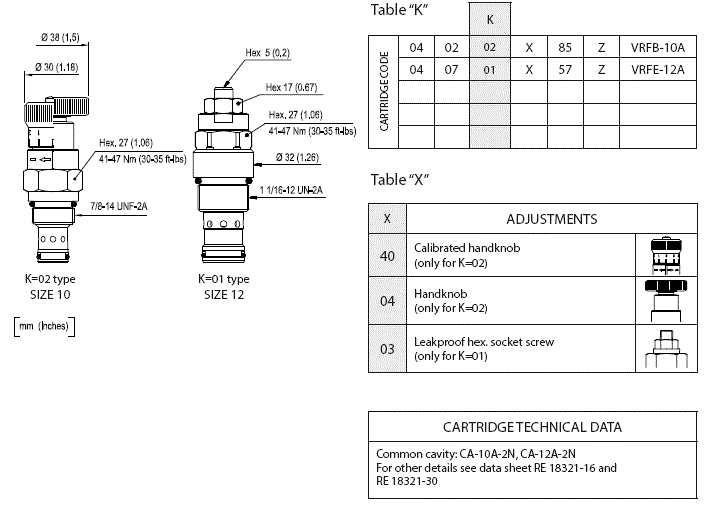

RE18331-05-02(2023-11-24)

Z

REGULATED FLOW RANGE

SIZE 08

SIZE 10

SIZE 12

SIZE 16

SIZE 20

l/min (gpm)

l/min (gpm)

l/min (gpm)

l/min (gpm)

l/min (gpm)

20

0.1-20 (0.03-5.28)

40

0.2-30 (0.05-7.93)

50

1-50 (0.26-13.2)

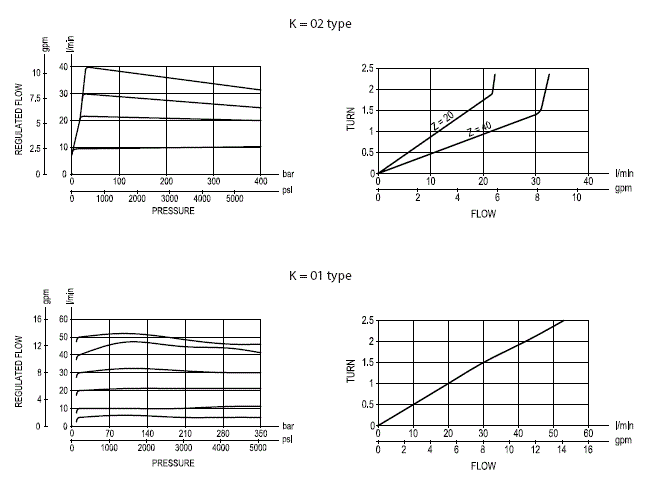

RE18331-05-03(2023-11-24)

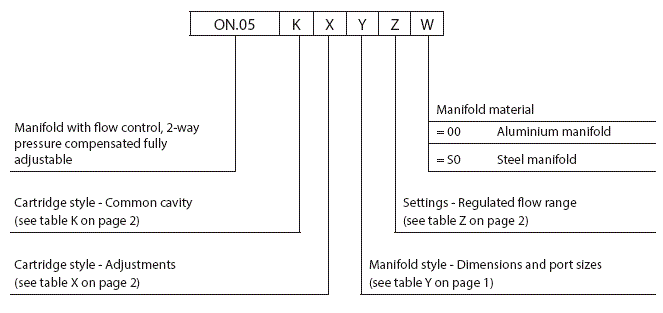

RE18331-05-order(2023-11-24)
