Sleeve for Line Mounting - Flow Control Valves - Throttle

RU

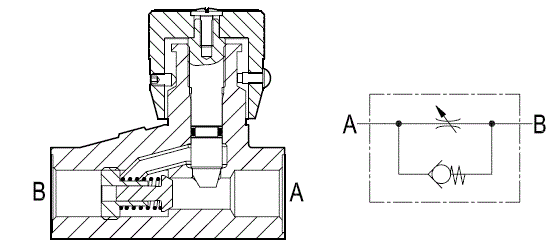

RE18316-10-01(2023-11-27)

With flow from B to A this line mounted valve provides a fully adjustable orifice restriction. Pressure compensation is not provided and flow depends from pressure drop and oil viscosity.

Free flow is allowed from A to B by an incorporated check valve, when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat.

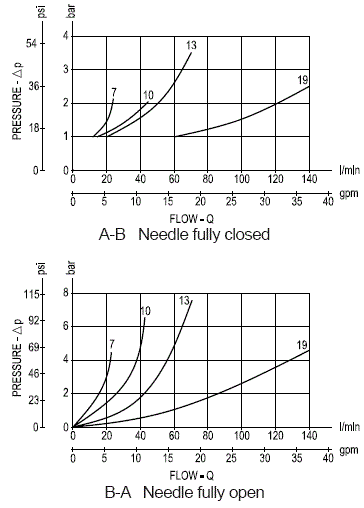

RE18316-10-02(2023-11-27)
  • Compact design.
  • Four sizes provide great adaptability to the system.
  • Fine adjustment.

Cast iron, zinc plated with aluminium hand knob

Pressure P max bar (psi):
  • 350 bar (5000 psi) RD 7, RD 10, RD 13, RD 19
Flow Qmax l/min(gpm):
  • 25 l/min (7 gpm) RD 7
  • 45 l/min (12 gpm) RD 10
  • 70 l/min (19 gpm) RD 13
  • 140 l/min (37 gpm) RD 19
Weight kg (lb):
  • 0.28 kg (0.62 lb) RD 7
  • 0.48 kg (1.06 lb) RD 10
  • 0.85 kg (1.87 lb) RD 13
  • 1.58 kg (3.48 lb) RD 19

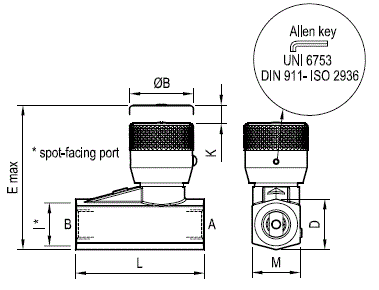

Port size / Dimensions

RE18316-10-dim(2023-11-27)
Code
Ports size A-B
I* mm (inches)
L mm (inches)
Ø B mm (inches)
E max mm (inches)
D mm (inches)
M mm (inches)
RU 7
G 1/4
21 (0.83)
64 (2.52)
31 (1.22)
70.5 (2.78)
24 (0.95)
24 (0.95)
RU 10
G 3/8
25 (0.98)
75 (2.95)
37 (1.46)
81 (3.19)
30 (1.18)
28 (1.10)
RU 13
G 1/2
29 (1.14)
92 (3.62)
42 (1.65)
104 (4.09)
36 (1.42)
35 (1.38)
RU 19
G 3/4
36.5 (1.44)
115 (3.62)
50 (1.97)
134 (5.28)
43 (1.69)
43 (1.69)

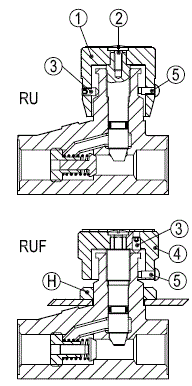

The RU series valves can be converted into panel mounted version (like RUF) by removing and adding the items here indicated.


RE18316-10-03(2023-11-27)

Remove from RU valve
Add For panel mounting
code
Screw (3)
Rivet (5)
Screw (2)
Hand Knob (1)
Ring Nut (H)
Hand Knob (4)
Screw (3)
Rivet (5)
RU 7 RUF 7
M3 x 6 UNI 5927.67 code: 0771432.01
4M x 6.5 code: 0771352.01
M4 x 10 code: 0771432.04
077.1431.01
20 x 1 code: 0811131.16
081.1431.05
M3 x 6 UNI 5927.67 code: 0771432.01
4M x 6.5 code: 0771352.01
RU 10 RUF 10
M4 x 8 UNI 5927.67 code: 0781432.02
4M x 8 code: 0781352.02
M4 x 10 code: 0771432.04
078.1431.02
25 x 1.5 code: 0821131.17
082.1431.06
M4 x 8 UNI 5927.67 code: 0781432.02
6M x 8 code: 0781352.02
RU 13 RUF 13
M4 x 8 UNI 5927.67 code: 0781432.02
4M x 8 code: 0781352.02
M5 x 12 0791432.05
079.1431.03
30 x 1.5 code: 0831131.18
083.1431.07
M4 x 8 UNI 5927.67 code: 0781432.02
6M x 8 code: 0781352.02
RU 19 RUF 19
M5 x 10 UNI 5927.67 code: 0801432.03
10M x 9.5 code: 0801352.03
M5 x 12 + rivet Ø 5 (0.20) UNI 6593-69 code: 0791432.05
080.1431.04
35 x 1.5 code: 0841131.19
084.1431.08
M5 x 10 UNI 5927.67 code: 0801432.03
10M x 9.5 code: 0801352.03

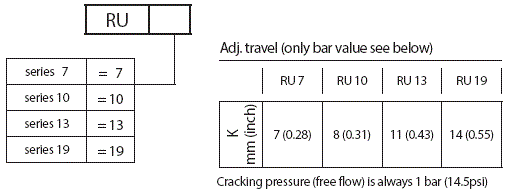

RE18316-10-order(2023-11-27)

The RU Series valve is a fully and easily adjustable non-compensated flow control which can be employed for meter-in (Port A connected to the actuator inlet) or meter-out (Port B connected to the actuator outlet in order to control the oil flow from the actuator). The easiness of installation and of adjustment make it suitable for many circuits and many applications where a non-compensated flow control is desired.
