Description
A solenoid-operated, 2 position, 3 way, bi-directional blocking, screw-in hydraulic cartridge valve. It is designed for low leakage in load-holding applications.
Operation
When de-energized, the SV38-38 blocks flow from port 3 to port 2 or port 2 to port 3. When energized, flow is blocked from port 2 to port 1, or from port 1 to port 2.
Features
- Continuous-duty rated coil.
- Hardened seat for long life and low leakage.

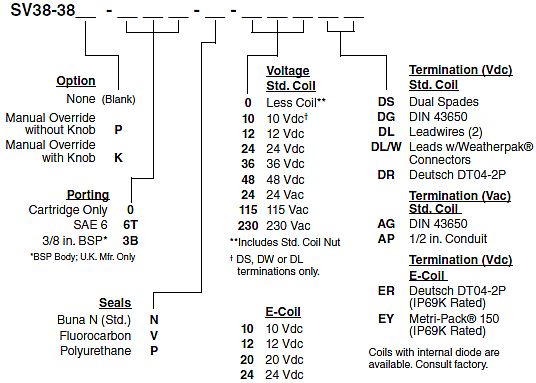

- Optional coil voltages and terminations.
- Efficient wet-armature construction.
- Cartridges are voltage interchangeable.
- Unitized, molded coil design.
- Optional waterproof E‑Coils rated up to IP69K.
- Industry common cavity.
