Solenoid operated valves, direct acting poppet type 2-way double lock


Cartridge Valves - Solenoid Valves - 2-ways
VEDT-16-08S-NC

Technical data
General:
Weight:
- 0.12 kg (0.26 lbs)
Installation orientation:
- Unrestricted
Fluid Temperature:
- -40 to 100 (-40 to 212)
Fluid Temperature:
- -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Max. flow:
Max. internal leakage:
Fatigue cycle life:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at
viscosities of 20 to 380 mm2/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFd:
Special cavity:
Seal kit:
- code
- material no.
Seal kit coil and standard cap:
- code
- material no.
Lines bodies and standard assemblies:
Other technical data:
Electrical:
Type of voltage:
- DC voltage
Coil type:
- D36
Supply voltage:
- See data sheet 18325-90
Admitted voltage tolerance: see characteristic curves and table:
Power consumption:
- 20 W
Type of protection:
Note: Coils must be ordered separately
- See data sheet 18325-90

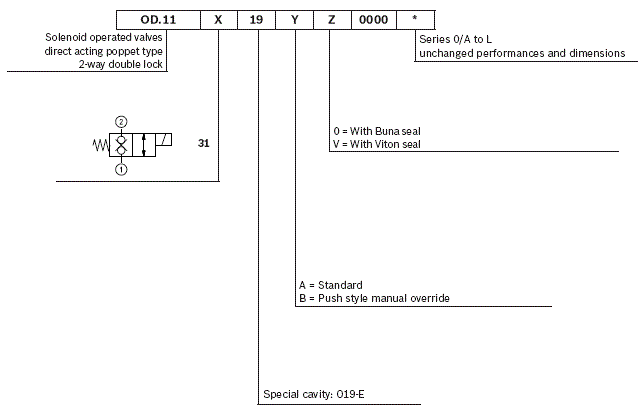

Ordering code

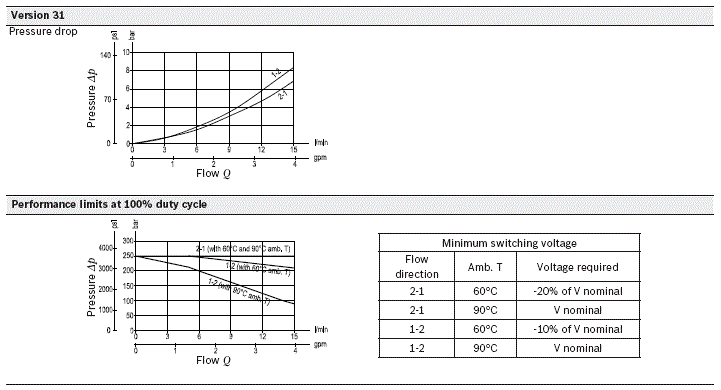

Characteristic curves
Note: in case of need of performance limits at specific different working conditions, please consult factory.

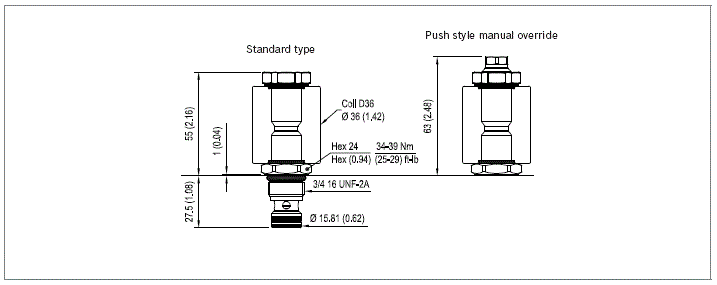

Dimensions
