Compact Directional Valves - Non-compensated and Post-compensated - Outlet elements ED Series

TC-01

Expand All|Collapse All
Description

The outlet elements TC-01-__ are employed to connect the P and T channels of the ED elements of the Directional Valve Assembly, and to provide an extra tank port T1, either size G 3/8 or G 1/2.

The TC-01-__ elements are available with body made of Black Anodized Aluminium (Al).

General
WeightTC-01-02-..-AL-F-C element:
  • 0.16 kg (0.35 lbs)
WeightTC-01-03-..-AL element:
  • 0.26 kg (0.56 lbs)
WeightTC-01-03-..-CI element:
  • 0.64 kg (1.41 lbs)
Fluid Temperature:
  • –20....+50 (-4....+122) (NBR seals)
Hydraulic
Maximum flow in T:
  • 50 l/min (13.2 gpm)
Maximum pressure:
  • 250 bar (3625 psi) Aluminium version (AL)
Maximum pressure:
  • 310 bar (4500 psi) Cast Iron version (CI)
Hydraulic fluidGeneral properties: it must have physical lubricating and chemical properties suitable for use in hydraulic systems such as, for example:
  • Mineral oil based hydraulic fluids HL (DIN 51524 part 1). For use of environmentally acceptable fluids (vegetable or polyglycol base) please consult us.
Fluid Temperature:
  • –20....+100°C (-4....+212°F) (NBR)
Permissible degree of fluid contamination:
  • ISO 4572: βₓ≥75 X=12...15 NAS 1638: class 9
Viscosity range:
  • Note: For applications with different specifications consult us
  • 5....420 mm²/s
RE18301-71-order
RE18301-71-sym

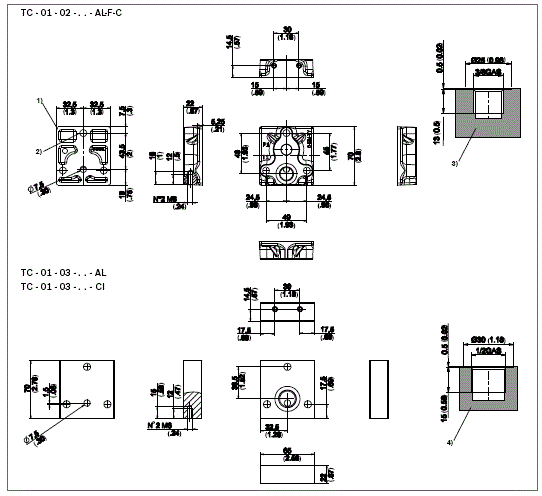

RE18301-71-dim
1
Flange specifications for coupling to the ED Directional Valve Elements.
2
For tie rod and tightening torque information see data sheet RE 18301-90.
3
Hydraulic Port T1 size G 3/8, for TC-01-02-…
4
Hydraulic Port T1 size G 1/2, for TC-01-03-…
Part Code
Material Number
Description
Port Size
Material
48-1510N
R930067926
TC-01-02-00-AL-F-C
G 3/8 DIN 3852
Forged Aluminum
48-1511
R933003328
TC-01-03-00-AL
G 1/2 DIN 3852
Aluminum from solid bar
