Compact Directional Valves - Non-compensated and Post-compensated - Outlet elements ED Series

TCG-0...

Expand All|Collapse All
Description

The outlet elements TCG are available in two versions:

  • Body made of Black Anodized Aluminium (AL).
  • Body made of Yellow Zinc plated (Cr+3) Cast Iron (CI).

They are employed as end plates to plug the P, T channels of the EDG directional valve elements.

General:
WeightTCG-0_/00 - CI element:
  • 0.80 kg (1.76 lbs)
WeightTCG-0_/00 - AL element:
  • 0.30 kg (0.66 lbs)
Fluid Temperature:
  • –20....+90 (-4....+194) (NBR seals)
Hydraulic:
Maximum pressure:
  • 250 bar (3625 psi) Aluminium version (AL)
Maximum pressure:
  • 350 bar (5000 psi) Cast Iron version (CI)
Hydraulic fluidGeneral properties: it must have physical lubricating and chemical properties suitable for use in hydraulic systems.:
  • Mineral oil based hydraulic fluids HL (DIN 51524 part 1). For use of environmentally acceptable fluids (vegetable or polyglycol base) please consult us.
Fluid Temperature:
  • –20....+80 °C (-4....+176°F) (NBR)
Permissible degree of fluid contamination:
  • ISO 4572: βₓ≥75 X=12...15 NAS 1638: class 9
Viscosity range:
  • Note: For applications with different specifications consult us
  • 5 420 mm²/s

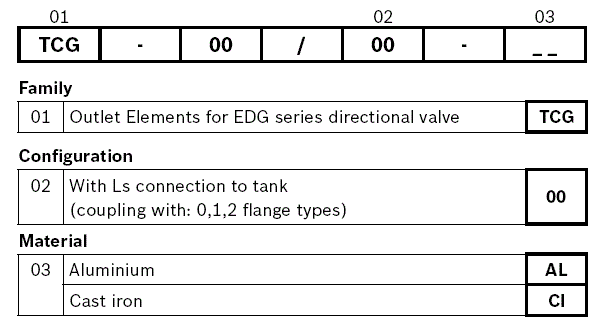

RE18301-65-order

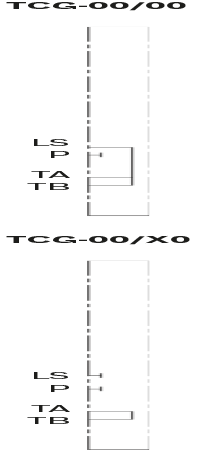

RE18301-65-sym

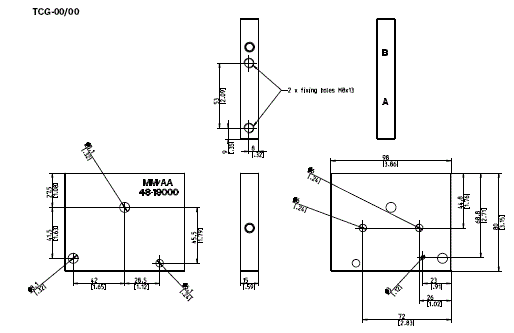

RE18301-65-dim
