Manifolds and Plates - Line Mount - 2-ways + relief

VSP-25-VEI8A

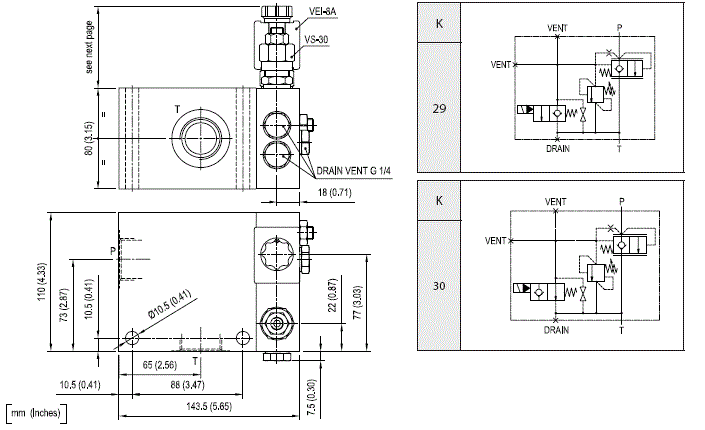

RE18332-43-dim(2023-11-21)
General:
Max flow:
  • up to 300 l/min (80 gpm)
Max operating pressure:
  • 210 bar (3000 psi)
Standard manifolds in high strength aluminium.For working pressure up to 350 bar (5000 psi) and for fatigue applications with any working pressure, steel manifolds are available upon request.:
Weight:
  • 3.2 kg (7.1 lbs)

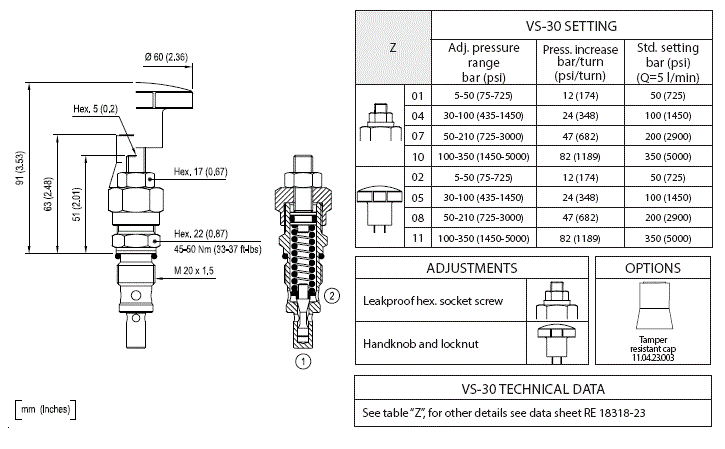

These integrated circuit contains one relief valve type VS-30 operating from P to T and one solenoid valve type VEI-8A (see next page).:
RE18332-43-01(2023-11-21)
RE18332-43-02(2023-11-21)
W

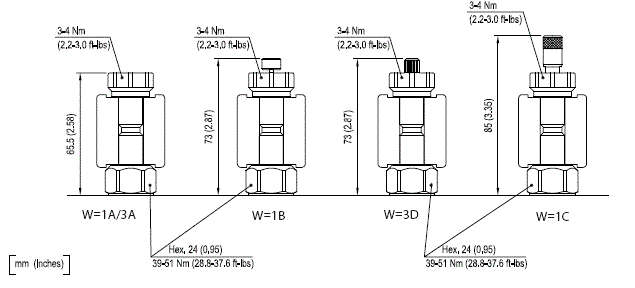

MANUAL OVERRIDE OPTIONS
K = 29
K = 30
1A
/
No override
1B
/
Push style
1C
/
Push and twist style
3A
No override
/
3D
Knob style
/


VEI-8A TECHNICAL DATA
Internal leakage:
max. 1cm³/min
(0.06 inch³/min)
Filtration:
25 µm nominal or better
Minimum voltage required:
90% of nominal value
Coil:
S8-356 (must be ordered separately) (see data sheet RE 18325-90)
For other details see cartridge data sheet
RE18332-43-03(2023-11-21)
RE18332-43-order(2023-11-21)
