Description
A screw-in, cartridge style, variable orifice, hydraulic flow control valve with reverse flow check.
Operation
The FC10-20 valve increases its orifice value from fully closed to fully open with counter-clockwise adjustment rotation.
FC10-20
Flow control valve
Pressure Ratings
Pressure rating:
- 3500 psi [241 bar]
Proof pressure:
- 5000 psi [345 bar]
Burst pressure:
- 13000 psi [896 bar]
Flow Ratings
Flow rating:
At 100 psi [6.89 bar] fully open, 3 turns.- 12 gpm [45.4 lpm]
Maximum internal leakage:
- 10 drops/min [0.5 ml/min]
Temperature Ratings
Operating fluid temperature:
- -40°F to 212°F [-40°C to 100°C] With Buna N seals
- -15°F to 400°F [-26°C to 204°C] With fluorocarbon seals
- -65°F to 225°F [-54°C to 107°C] With polyurethane seals
Storage temperature:
- -40°F to 160°F [-40°C to 70°C]
Ambient temperature:
- -40°F to 160°F [-40°C to 70°C]
Fluids:
- With Lubricating properties.
- Mineral based or synthetic hydraulic fluid
Fluid viscosity range:
- 7.4 to 420 cSt
Maximum operating contamination level:
- 18/16/13 per ISO4406
Adjuster torque:
- 3 in-lb [0.34 N-m] 100 psi [7 bar]
- 40 in-lb [4.52 N-m] 3000 psi [207 bar]
Corrosion protection:
- Model number - GFC10-20
- 960 hr salt spray per ASTM B117
Unit weight:
- 0.33 lb [0.15 kg] (option a) 2 2
Internal wetted surface area:
- 14.9 in [96 cm ]
Cavity:
- VC10-2
Cartridge installation torque:
- 25-27 ft-lb [34.0-36.7 N-m]
Orientation restriction:
- None sheets)
Seal kit:
- SK10-2X-M (X = seal option) installation
Housings:

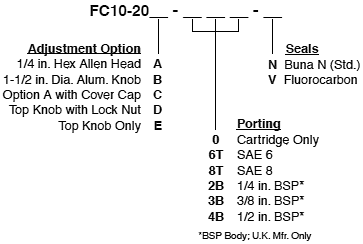

Model Options
FC10-20F-H-J
F Adjustment Option
CODE
DESCRIPTION
A
1/4" Hex Allen Head
B
1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob
C
1/4" Hex Allen Head with Cover Cap
D
1-1/2" Diameter Aluminum Knob with Lock Nut
E
1-1/2" Diameter Aluminum Knob Only
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
4B
Aluminum BSPP 1/2" (4)
4BD
Ductile Iron BSPP 1/2" (4)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
