Cartridge Valves - Flow Control Valves - Flow regulator

VCD1

Description

These valves can be used either as lowering control devices or as two ways flow regulators. In the firs option, they keep the lowering speed largely independent from the load, while, in the second option, they limit flow to the preset value which can be adjusted within the regulate flow path. On the opposite flow direction, from 2 to 1, the valve is acting as a free flow check reducing the pressure drop to low values (see diagram ∆P – Q).

General:
Max. operating pressure:
  • 315 bar (4500 psi)
Max. flow:
  • see “Flow range adjustment” table and “Performance” graphs l/min. (gpm)
Fluid temperature range:
  • -30 to 100°C (-22 to 212°F)
Installation torque:
  • see “Dimensions” table Nm (ft-lbs)
Weight:
  • see “Dimensions” table kg (lbs)
Special cavity:
  • see “Dimensions”
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) ISO 4406 20/18/15
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet RE 18350-50

* Thread in accordance with ISO 228-1

Note: Metric versions available on request. Consult factory.

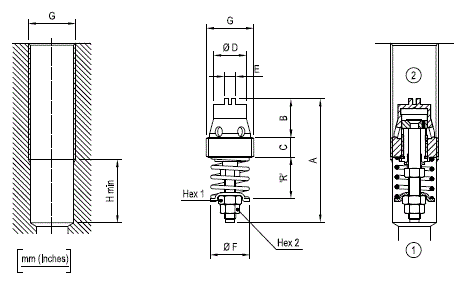

RE18329-80-dim(2023-11-16)
G *
A
B
C
D
E
F
Hex 1
Hex 2
H
Weight kg (lbs)
Inst. torque Nm (ft-lbs)
Flow max. l/min. (gpm)
G 1/4
38.3 (1.51)
12.5 (0.49)
7 (0.28)
10 (0.39)
4 (0.16)
10.3 (0.41)
5.5 (0.22)
4.5 (0.18)
22 (0.87)
0.012 (0.027)
6 (4)
10 (3)
G 3/8
43 (1.69)
13.5 (0.53)
7 (0.28)
11.5 (0.45)
4 (0.16)
14 (0.55)
7 (0.28)
6 (0.24)
23 (0.91)
0.025 (0.055)
8 (6)
25 (7)
G 1/2
49 (1.93)
16 (0.63)
8 (0.32)
15 (0.59)
6 (0.24)
18.2 (0.72)
7 (0.28)
6 (0.24)
27 (1.06)
0.038 (0.084)
12 (9)
67 (18)
G 3/4
60 (2.36)
21 (0.83)
10 (0.39)
20 (0.79)
6 (0.24)
23 (0.91)
7 (0.28)
6 (0.24)
31 (1.22)
0.070 (0.154)
15 (11)
150 (40)

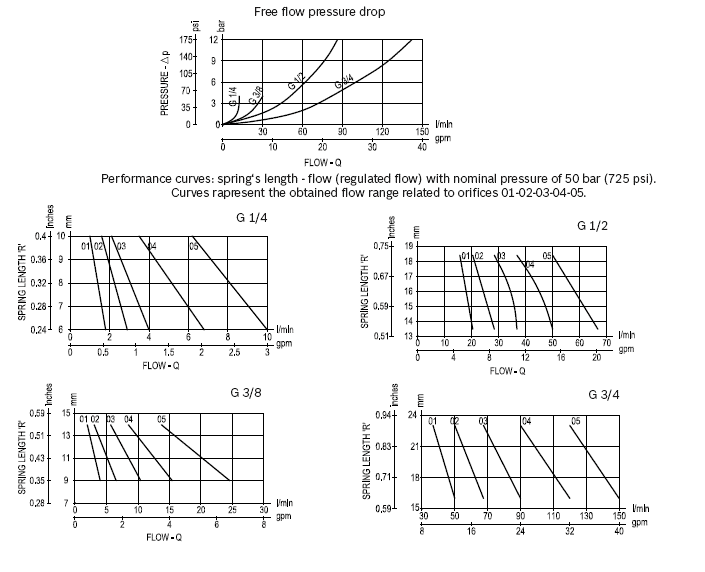

RE18329-80-02(2023-11-16)

Note: Metric versions available on request. Consult factory.

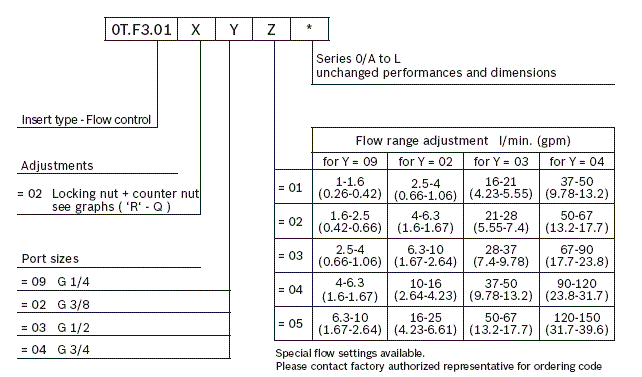

RE18329-80-order(2023-11-16)
