Compact Motion Control Valves - Flow Control Valves - Flow regulator

VRFC3-VS-BPE (G 3/4)

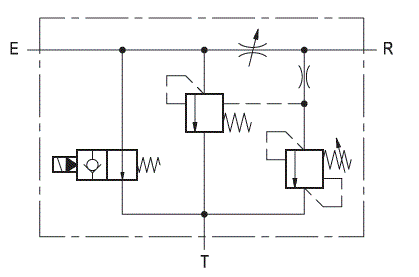

RE18309-49-01(2023-10-30)
Description

A constant pressure compensated flow rate is established from E to R, while a minimum pressure differential of appr. 5 bar (70 psi) exists between the two ports. Input flow supplied to E in excess of the regulated output at R is by-passed to T. Regulated flow can be varied from closed to the nominal maximum rating of the valve and its pressure is controlled by a relief cartridge which will dump to Tank the output flow if the maximum pressure is reached. A normally open solenoid cartridge by-passes all Inlet flow to tank when de-energized. Reverse flow from R to E is limited by the selected opening of the restrictor and is not pressure compensated. Flow from T to R is not permitted.

General:
Operating pressure:
  • up to 210 bar (3000 psi)
Adj. relief valve: range 105-210 bar (1523-3000 psi) Standard setting: 210 bar (3000 psi):
QE= max. inlet flow “E” port 150 l/min. (40 gpm):
QR= max. regulated flow “R” port 90 l/min. (24 gpm):
Flow range adjustment:
  • 0 - 3 turns
Weight:
  • 2.3 kg (5.1 lbs)
Manifold material:
  • Note: Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.
  • Aluminium
Fluid:
  • Mineral oil (HL, HLP) according to DIN 51524
Fluid temperature range:
  • -20 °C to 80 (-4 to 176 °F)
Viscosity range:
  • 20 to 380 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
The coil must be ordered separately:
Other technical data:
  • Note: Note: for applications outside these parameters, please consult us.
  • see data sheet 18350-50

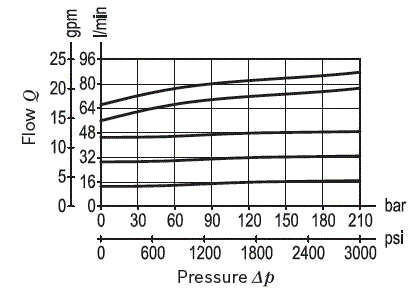

RE18309-49-02(2023-10-30)
RE18309-49-order(2023-10-30)

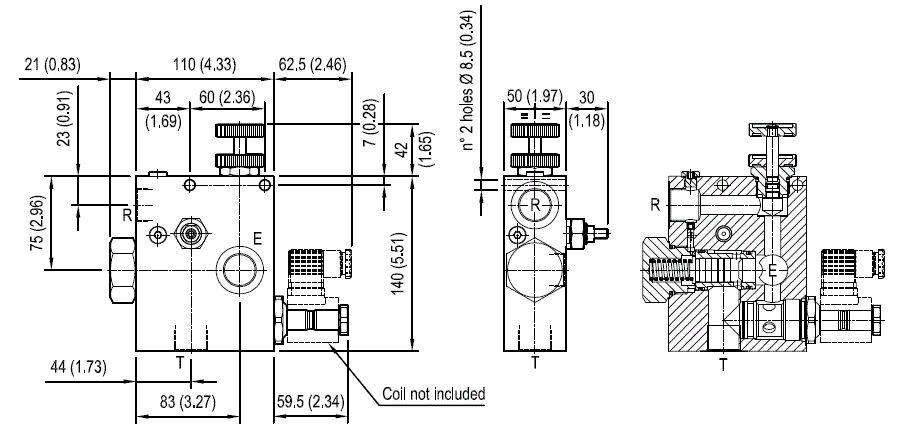

RE18309-49-dim(2023-10-30)
