Manifolds and Plates - Sub plate - 2-ways on A

EM-VEI-16-08A-CETOP3-A

Expand All|Collapse All
RE18332-82-02(2023-11-21)
RE18332-82-03(2023-11-21)
General:
Max. flow:
  • 40 l/min (11 gpm)
Max operating pressure:
  • 210 bar (3000 psi)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Standard manifold in high strength aluminium.For working pressure up to 350 bar (5000 psi) and for fatigue applications with any working pressure, steel manifolds are available upon request.:
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt)
MTTFd:
  • 150 years see RE 18350-51
Other technical data:
  • See data sheet 18350-50
General:
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
  • 350 bar (5000 psi)
Flow range:
  • 0.5 - 40 l/min (0.1 - 11 gpm)
Max. internal leakage:
  • 5 drops/min.
Switching time:
  • Opening ≤ 50 ms
  • Closing ≤ 100 ms
Fluid temperature range:
  • -20 to 80 °C (-4 to 176 °F)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
  • 39 - 51 Nm (29 - 38 ft-lbs)
Recommended degree of fluid contamination:
  • Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14
MTTFd:
  • 150 years see RE 18350-51
Cavity:
  • CA-08A-2N see data sheet 18325-70
Other technical data:
  • See data sheet 18350-50
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Label Needed:
  • See characteristic curve
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

Manual override options (X)
Seal and prot. cap. (Y)

A
B
C
D
E
F
0
K=all versions
K=06K=32
K=06K=32
K=05K=31
K=05K=31
K=05K=31
V
K=all versions
K=06K=32
K=06K=32
K=05K=31
K=05K=31
K=05K=31
P
/
K=06K=32
K=06K=32
K=05K=31
/
/
T
/
K=06K=32
K=06K=32
K=05K=31
/
/

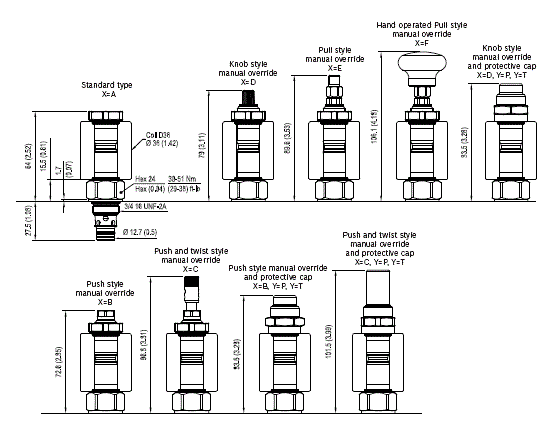

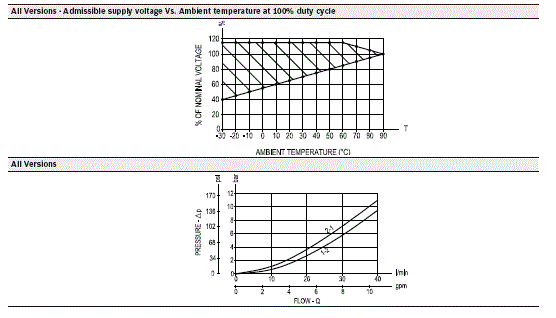

RE18332-82-04(2023-11-21)

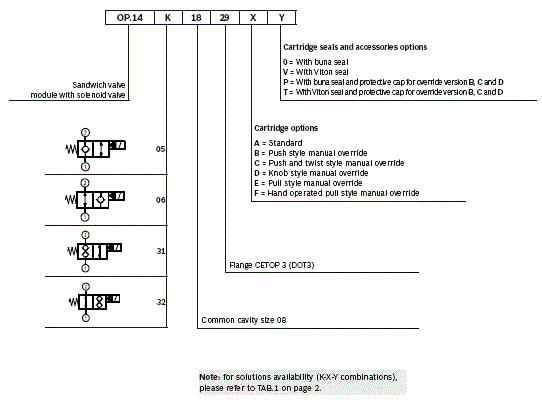

RE18332-82-order(2023-11-21)
