Cartridge Valves - Solenoid Valves - 2-Position 4-Way - Normally Open

SV08-40

SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION

Overview

Description

A solenoid-operated, 4 way, 2 position, direct-acting spool type, screw in hydraulic cartridge valve.

Operation

When de-energized, the SV08-40X flow paths are port 3 to port 2, and port 4 to port 1. When energized, the valve's spool shifts to open port 3 to port 4, and port 2 to port 1. All ports are open at cross-over.

Features

  • Continuous-duty rated coil.
  • Hardened precision spool and cage for long life.
  • Optional coil voltages and terminations.
  • Efficient wet-armature construction.
  • Cartridges are voltage interchangeable.
  • All ports may be fully pressurized.
  • Unitized, molded coil design.
  • Manual override option.
  • Optional waterproof E‑Coils rated up to IP69K.
  • Compact size.
Pressure Ratings
Pressure rating:
  • 207 bar (3000 psi)
Proof pressure:
  • 241 bar (3500 psi)
Burst pressure:
  • 620 bar (9000 psi)
Flow Ratings
Flow rating:
  • See graph
Maximum internal leakage:
  • 164 ml/min (10 in³/min) At port 1, energized 207 bar (3000 psi)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
  • -54 to 107 °C (-65 to 225 °F) With urethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Other Ratings
Corrosion protection:
  • 960 hr salt spray per ASTM b117 (gsv08-40)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 ISO 4406
Unit weight:
  • 0.11 kg (0.25 lb)
Internal wetted surface area:
  • 120 cm² (18.6 in²)
Pull in voltage:
  • 85% of nominal at 40 °C (104 °F)
Drop out voltage:
  • 5% of nominal
SV08-40_Perf_Chrt(2022-02-24)
SV08-40_Dim_Dwg(2022-02-24)
Cavity:
Cartridge installation torque:
  • 25.8 to 28.5 N-m (19 to 21 ft-lb)
Maximum allowable torque:
  • 51.2 N-m (40 ft-lb) Aluminum
Coil nut torque:
  • 5.4 to 6.8 N-m (4 to 5 ft-lb)
Orientation restriction:
  • None

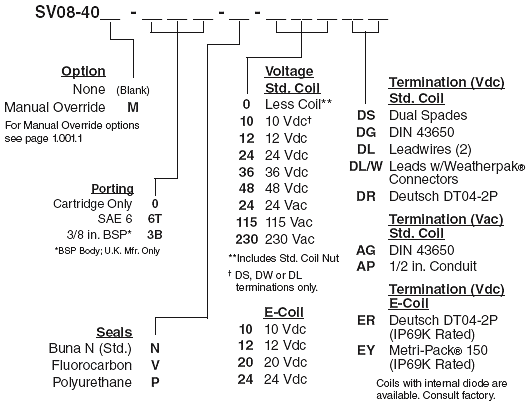

SV08-40_Order(2022-02-24)

Model Options

SV08-40E-H-J-L
E Manual Override
CODE
DESCRIPTION
BLANK
NONE
M
Two Position Override, Red Knurled Knob
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
6TD
Ductile Iron SAE 6
3B
Aluminum BSPP 3/8" (3)
3BD
Ductile Iron BSPP 3/8" (3)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DL
10 VDC, D-Coil, Dual Lead Wires
10DR/D
10 VDC, D-Coil, Deutsch with Diode
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires, 18 inches long
10EL/36
10 VDC, E-Coil, Dual Lead Wires, 36 inches long
10ER
10 VDC, E-Coil, Deutsch
10ER/Z
10 VDC, E-Coil, Deutsch with Zener Diode
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DL/W/D
12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode
12DR
12 VDC, D-Coil, Deutsch
12DR/D
12 VDC, D-Coil, Deutsch with Diode
12DR/Z
12 VDC, D-Coil, Deutsch with Zener Diode
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EG/Z
12 VDC, E-Coil, DIN 43650 with Zener Diode
12EJ
12 VDC, E-Coil, AMP Jr.
12EJ/Z
12 VDC, E-Coil, AMP Jr. with Zener Diode
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12EL/Z
12 VDC, E-Coil, Dual Lead Wires with Zener Diode
12ER
12 VDC, E-Coil, Deutsch
12ER/Z
12 VDC, E-Coil, Deutsch with Zener Diode
12EY
12 VDC, E-Coil, Metri-Pack 150
12EY/Z
12 VDC, E-Coil, Metri-Pack 150 with Zener Diode
20DG
20 VDC, D-Coil, DIN 43650
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
20ER/Z
20 VDC, E-Coil, Deutsch with Zener Diode
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires, 18 inches long
24DL/36
24 VDC, D-Coil, Dual Lead Wires, 36 inches long
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DR
24 VDC, D-Coil, Deutsch
24DR/D
24 VDC, D-Coil, Deutsch with Diode
24DR/Z
24 VDC, D-Coil, Deutsch with Zener Diode
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EG/Z
24 VDC, E-Coil, DIN 43650 with Zener Diode
24EJ
24 VDC, E-Coil, AMP Jr.
24EL/D
24 VDC, E-Coil, Dual Lead Wires with Diode
24ER
24 VDC, E-Coil, Deutsch
24ER/Z
24 VDC, E-Coil, Deutsch with Zener Diode
24EY
24 VDC, E-Coil, Metri-Pack 150
24EY/Z
24 VDC, E-Coil, Metri-Pack 150 with Zener Diode
36DG
36 VDC, D-Coil, DIN 43650
36DS
36 VDC, D-Coil, Dual Spade
115AG
115 VAC, D-Coil, DIN 43650
115AP
115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
230AG
230 VAC, D-Coil, DIN 43650
230AP
230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
