Cartridge Valves - Directional Control Valves - Logic Element - Pilot To Close

EP10-S35

DIRECTIONAL ELEMENT, PILOTED

Expand All|Collapse All

Overview

Description

The ep10-s35xx is a screw-in, cartridge style, pilot to close hydraulic directional element.

Operation

The valve is a spring-biased blocking valve which will shift to allow full flow from port 1 to 2 only when the pressure at port 1 exceeds the cumulative pressure of port 3 plus the bias spring pressure value.

Features

  • Multiple function/application potential.
  • Range of bias spring pressure options. Tall cap required for 160, M11, 230, and M15.9 spring options.
  • Industry-common cavity.
Pressure Ratings
Pressure rating:
  • 345 bar (5000 psi)
Flow Ratings
Flow rating:
  • See performance graph
Maximum internal leakage:
  • 164 ml/min (10 in³/min) At 207 bar (3000 psi)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -26 to 204 °C (-15 to 400 °F) With high durometer fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 90 °C (-40 to 194 °F)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 0.14 kg (0.31 lb) EP10-S35
  • 0.27 kg (0.60 lb) EP10-S35T
Internal wetted surface area:
  • 123 cm² (19.0 in²) Ep10s35
  • 191 cm² (29.6 in²) Ep10s35t

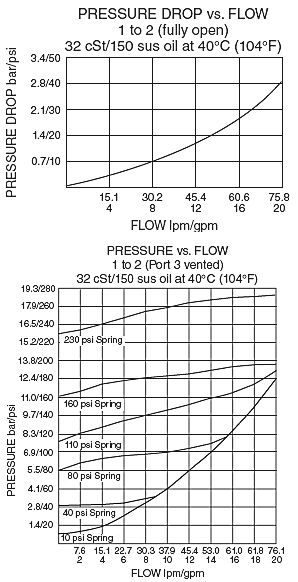

EP10-S35_Perf_Chrt(2022-02-24)

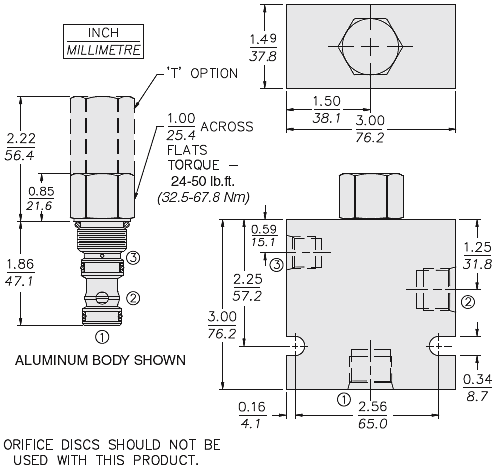

EP10-S35_Dim_Dwg(2022-02-24)
Cavity:
  • VC10-S3
Cartridge installation torque:
  • 32.5 to 35.3 N-m (24 to 26 ft-lb)
Maximum allowable torque:
  • 67.8 N-m (50 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK10-S3X-MM X = seal option
Housings:

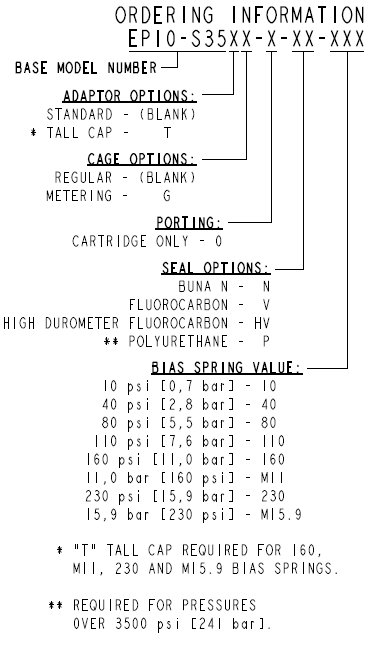

EP10-S35_Order(2022-02-24)

Model Options

EP10-S36CD-H-J-R
C Adaptor Option
CODE
DESCRIPTION
BLANK
Standard Cap
T
Tall Cap
H Line Body
CODE
DESCRIPTION
0
No Body
10T
Aluminum body SAE #10 ports
10TD
Ductile Iron body SAE #10 ports
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
R Spring
CODE
DESCRIPTION
10
10 psi Bias Spring
40
40 psi Bias Spring
80
80 psi Bias Spring
110
110 psi Bias Spring
M11
11 bar Bias Spring
160
160 psi Bias Spring
230
230 psi Bias Spring
M15.9
15.9 bar Bias Spring
