Cartridge Valves - Directional Control Valves - Pilot Operated On/Off - 2-Position 2-Way - Atmospheric Vent - Normally Open

PD42-M45

PILOTED DIRECTIONAL VALVE

Overview

Description

The PD42-M45 is a screw-in, cartridge style, pilot operated, spool-type hydraulic directional valve.

Operation

In neutral position the valve allows flow from port 2 to 3, bidirectionally. On remote pilot signal at port 1, the valve's spool shifts to block flow from port 2 to 3. The spring chamber is vented to port 4 which is internally o-ring sealed from the cartridge flow paths. Pressure on port 4 will directly (1:1) affect the pilot pressure required and must be added to the bias spring value.

Features

  • Rated for 345 bar (5000 psi) operating pressure (polyurethane seals required).
  • Hardened spool and cage for long life.
  • Optional sealed pilot
  • Industry-common ISO cavity.
Pressure Ratings
Pressure rating:
  • 345 bar (5000 psi)
Proof pressure:
  • 690 bar (10000 psi)
Burst pressure:
  • 1034 bar (15000 psi)
Flow Ratings
Flow rating:
  • 265 lpm (70 gpm)
Maximum internal leakage:
  • 245 ml/min (15 in³/min) At zero leakage from port 1 to 2 with sealed spool 345 bar (5000 psi)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With viton seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 1.8 kg (4.0 lb)
Internal wetted surface area:
  • 64516 mm² (100.0 in²)
PD42-M45_Perf_Chrt(2022-02-24)

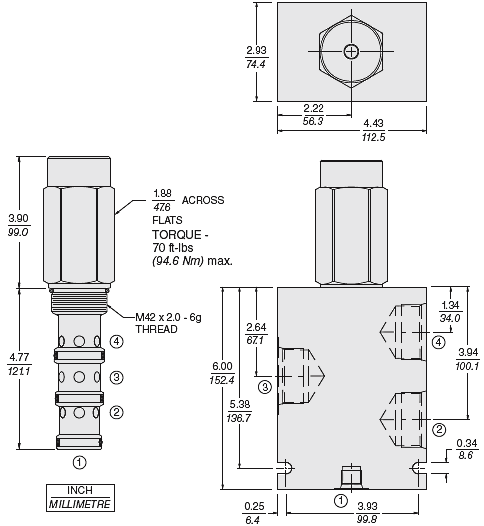

PD42-M40_Dim_Dwg(2022-02-24)
Cavity:
Cartridge installation torque:
  • 89 to 102 N-m (65 to 75 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK42-4X-MMM (x = seal option)

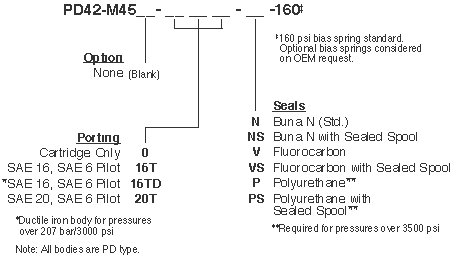

PD42-M45_Order(2022-02-24)

Model Options

PD42-M45-H-J-R
H Line Body
CODE
DESCRIPTION
0
No Body
16T
Aluminum SAE 16
20T
Aluminum SAE 20
J Seal
CODE
DESCRIPTION
N
Buna-N
NS
Buna-N with a Sealed Spool
V
Fluorocarbon
VS
Fluorocarbon with a Sealed Spool
P
Polyurethane
PS
Polyurethane with a Sealed Spool
U
PPDI Urethane
US
PPDI Urethane with a Sealed Spool
R Spring
CODE
DESCRIPTION
160
160 psi Bias Spring
