Description
PR50-36XX is a spool type, pilot operated, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure regulating device for secondary circuits. Port 2 may be protected by 60 mesh, 250 micron rated screen with option S.
Operation
In its steady state, the PR50-36XX allows flow to pass bidirectionally from port 2 to port 1, with the spring chamber constantly drained at port 3. Upon attainment of a predetermined pressure at port 1, the spool shifts to restrict inlet flow from port 2, thereby regulating pressure at port 1. In this mode the valve will also relieve port 1 to port 3.

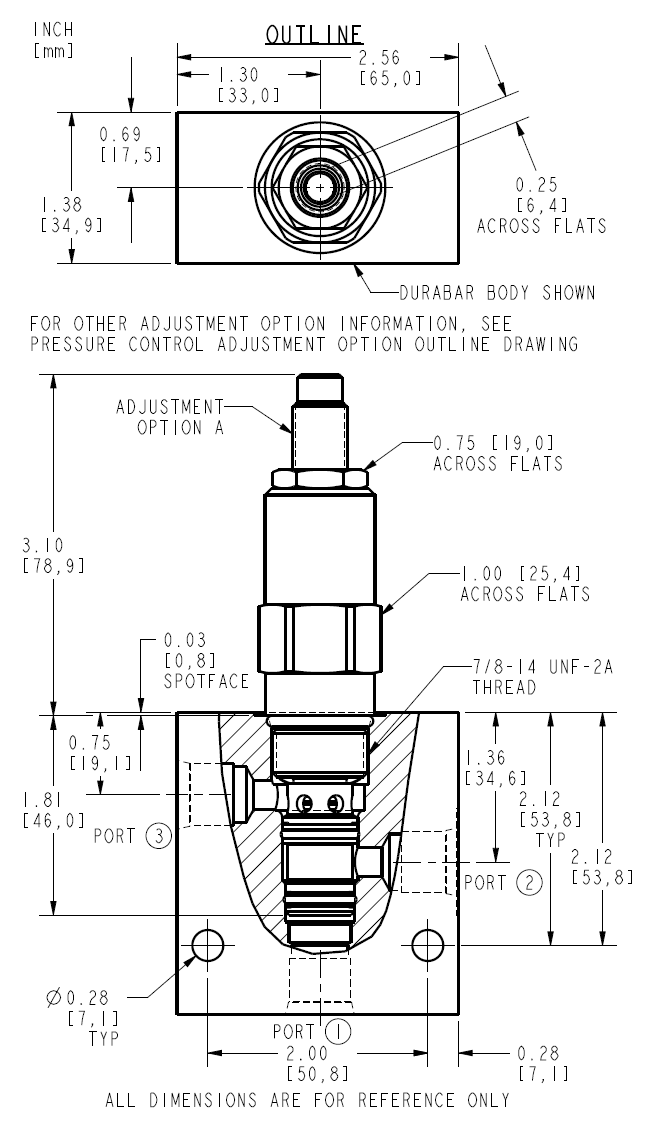

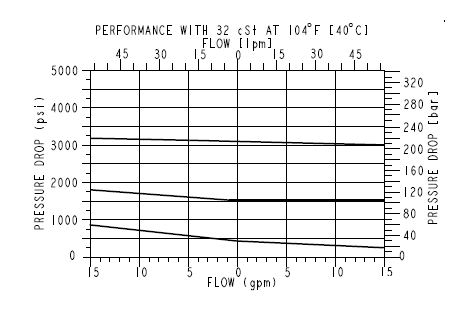

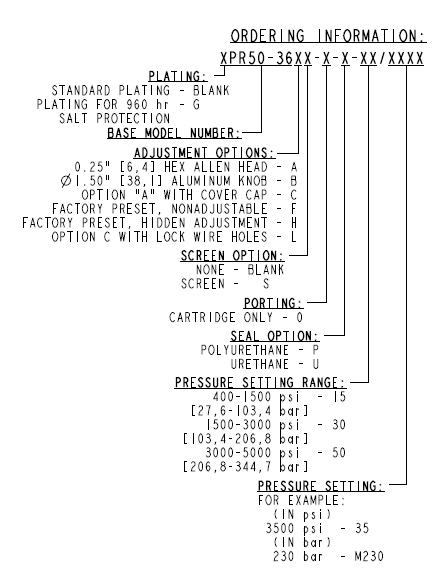

With maximum adjustment setting and with inlet pressure of 3500 psi [241 bar]
