Home
|
Resources
|
Technical References
|
Cavities
|
16-Size 6-Way
Back To
Cavities

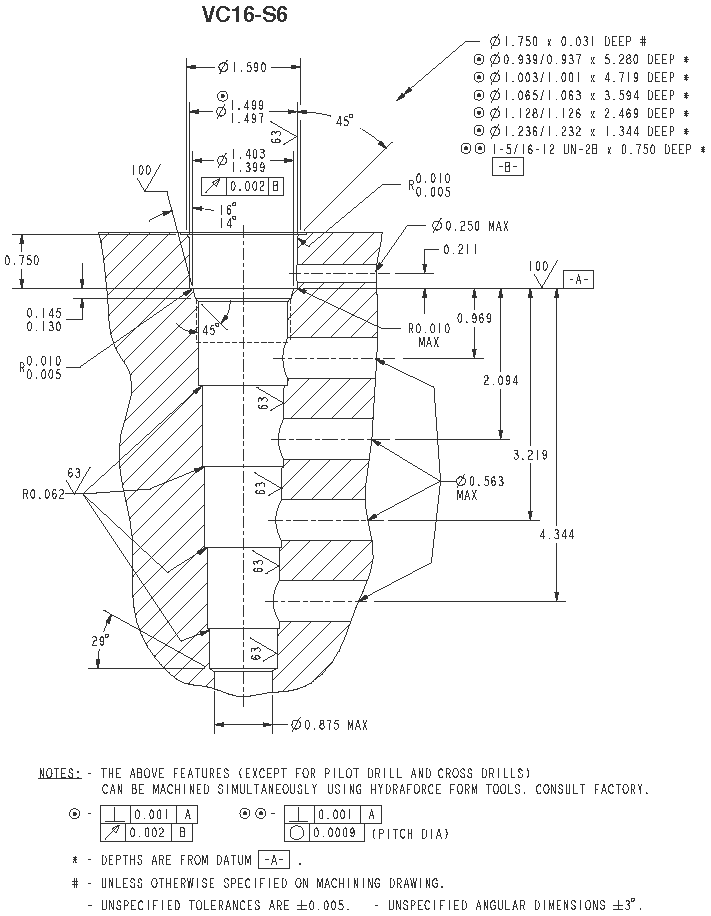

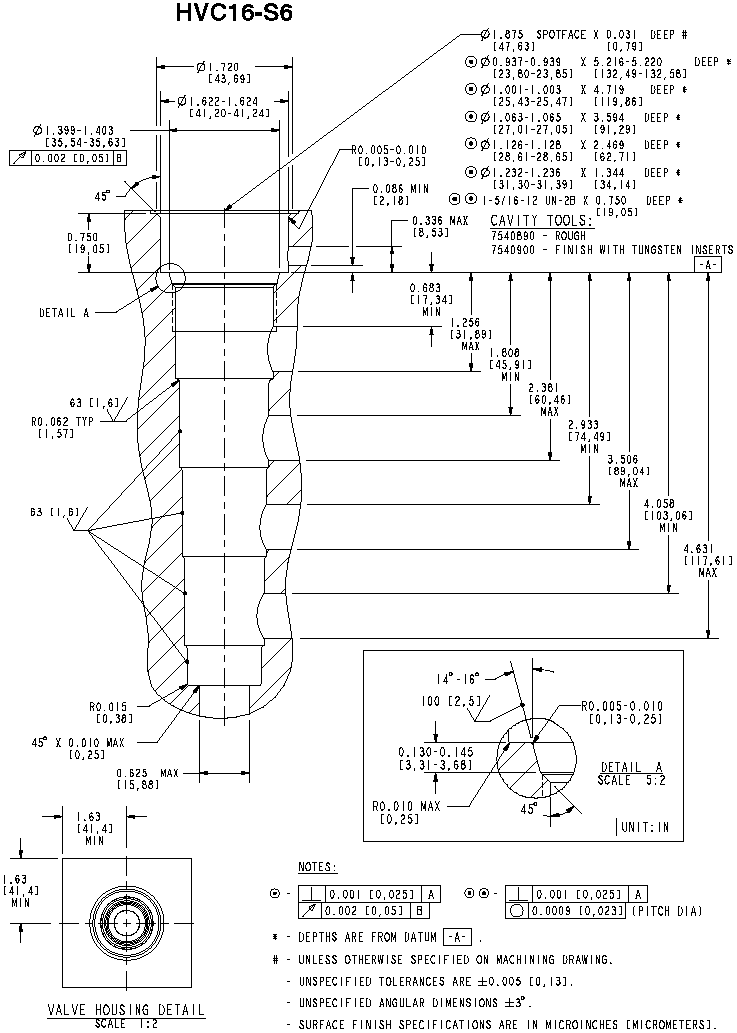

16-Size 6-Way Cartridge Cavities
