FLOW-LIMITING ORIFICE DISCS:
Standard HydraForce cavity forming tools enable the designer to make convenient use of flow-limiting orifice discs,
installed immediately under the cartridge when pilot drill diameters shown on housing details, or smaller, are used.

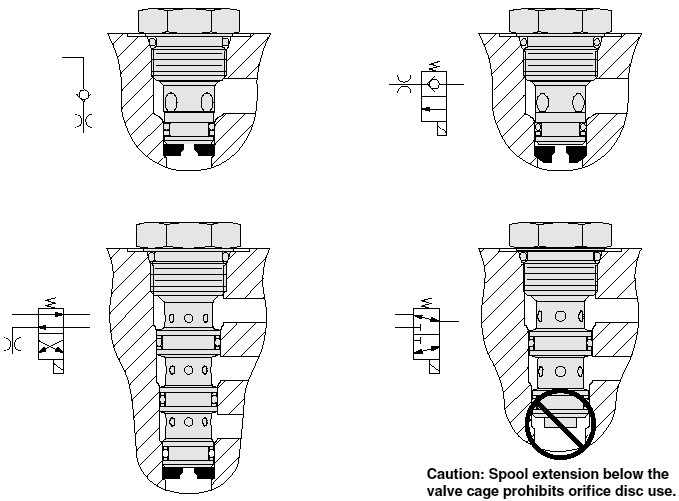

TYPICAL INSTALLATIONS:
See specific product pages to determine if orifice disc can be used with a particular valve.

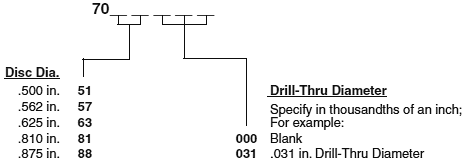

ORDERING INFORMATION:

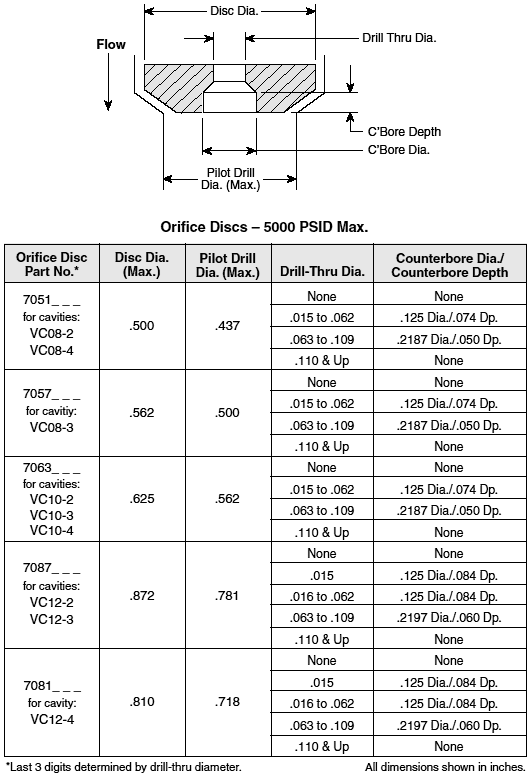

See Orifice Sizing Guide charts below for information necessary to specify Drill-Thru Diameter.
ORIFICE DISC SIZING GUIDE IN INCHES:
Curves represent orifice disc drill-thru diameters.

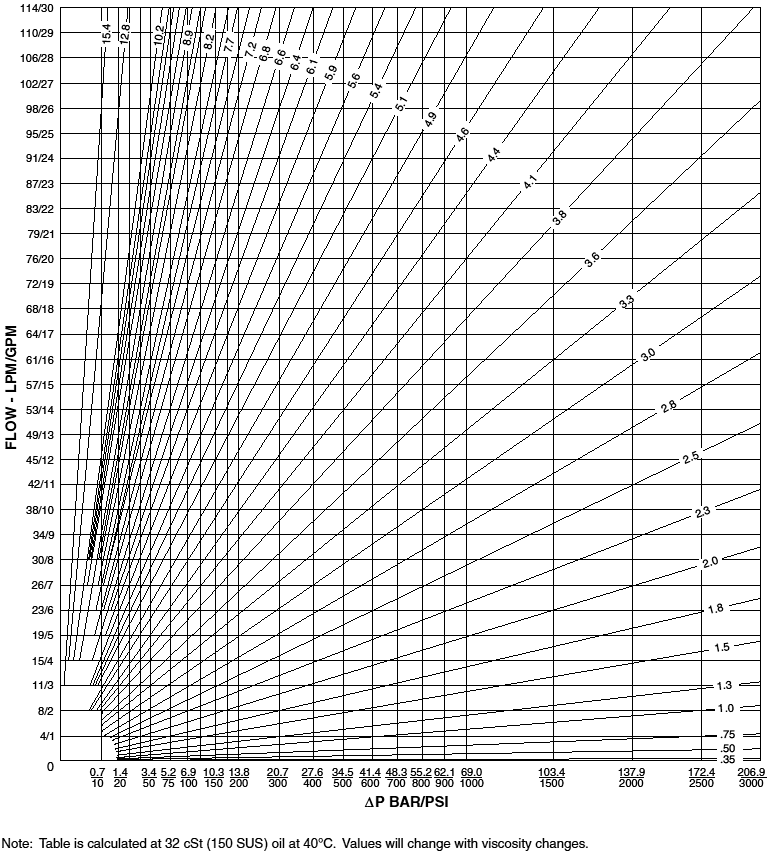

ORIFICE DISC SIZING GUIDE IN MILLIMETERS:
Curves represent orifice disc drill-thru diameters.
