Cartridge Valves - Cartridge Valve Accessories - Coils - 12 Size - E-Coil

Coil_12-XXEX/X

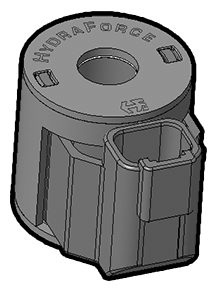

E COIL 12 SIZE

Overview

Description

Magnet wire wound on a molded 30% glass filled bobbin and encapsulated with 30% glass filled polyester resin and enclosed in a two-piece zinc-plated metal shell.

Properties
Magnet wire:
  • U.S. class H 180 °C (356 °F) minimum rating
Mating connector:
  • DT06-2S-P012 DEUTSCH DT04-2P
  • DELPHI/PACKARD number 12052641 METRI-PACK 150-2M
  • DELPHI/PACKARD number 12015792 WEATHER-PACK
Electrical Parameters
Coil resistance:
  • 4.61 ohm ±4% At 20 °C (68 °F), 12 V coil
  • 18.3 ohm ±5% At 20 °C (68 °F), 24 V coil
Coil initial current draw:
  • 2.60 A 12 V coil
  • 1.31 A 24 V coil
Coil initial power consumption:
  • 31.23 W 12 v COIL
  • 31.47 W 24 v COIL

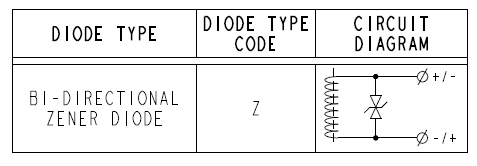

Bidirectional Zener Diode Parameters
Maximum clamping voltage:
  • 45.7 V 12 Vdc coil
  • 64.8 V 24 Vdc coil
Maximum peak pulse current:
  • 13.2 A 12 Vdc coil
  • 9.3 A 24 Vdc coil
Reverse standoff voltage:
  • 28.2 V 12 Vdc coil
  • 40.2 V 24 Vdc coil
Maximum reverse leakage:
  • 5.0 µA 12, 24 Vdc coil
Breakdown voltage:
  • 31.4 to 34.7 V 12 Vdc coil
  • 44.7 to 49.4 V 24 Vdc coil
Diode part number:
  • 6110163 12 Vdc coil (ref)
  • 4000063 24 Vdc coil (ref)

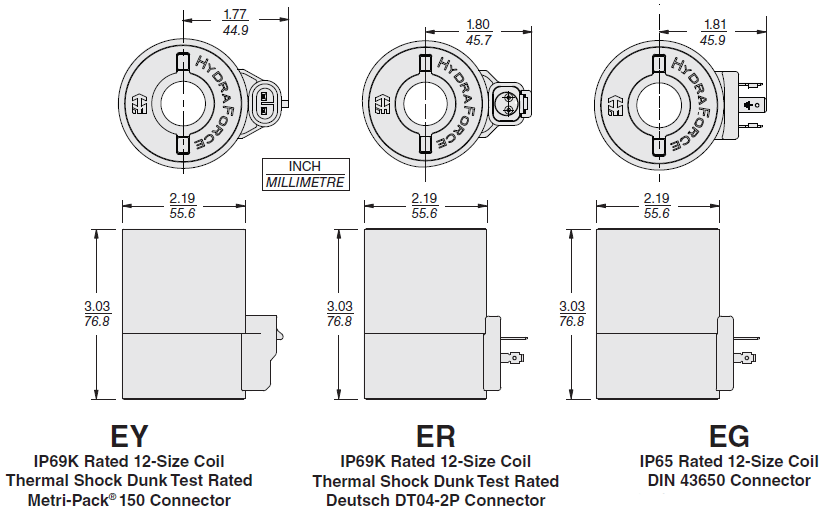

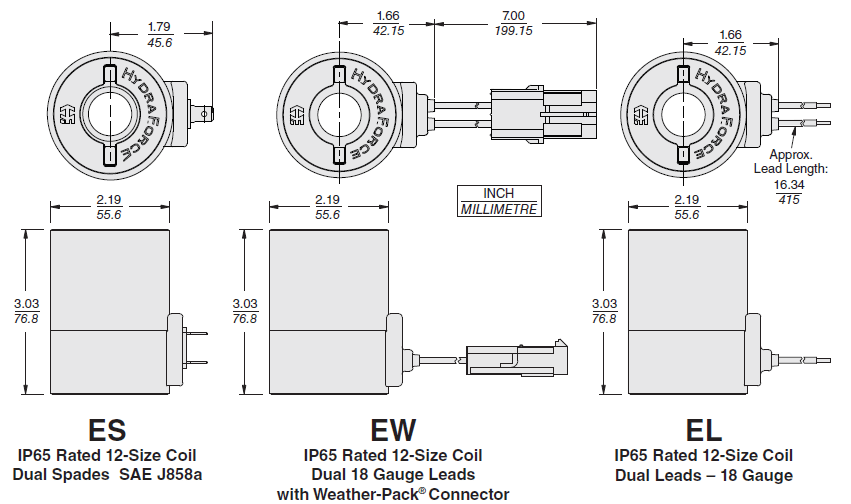

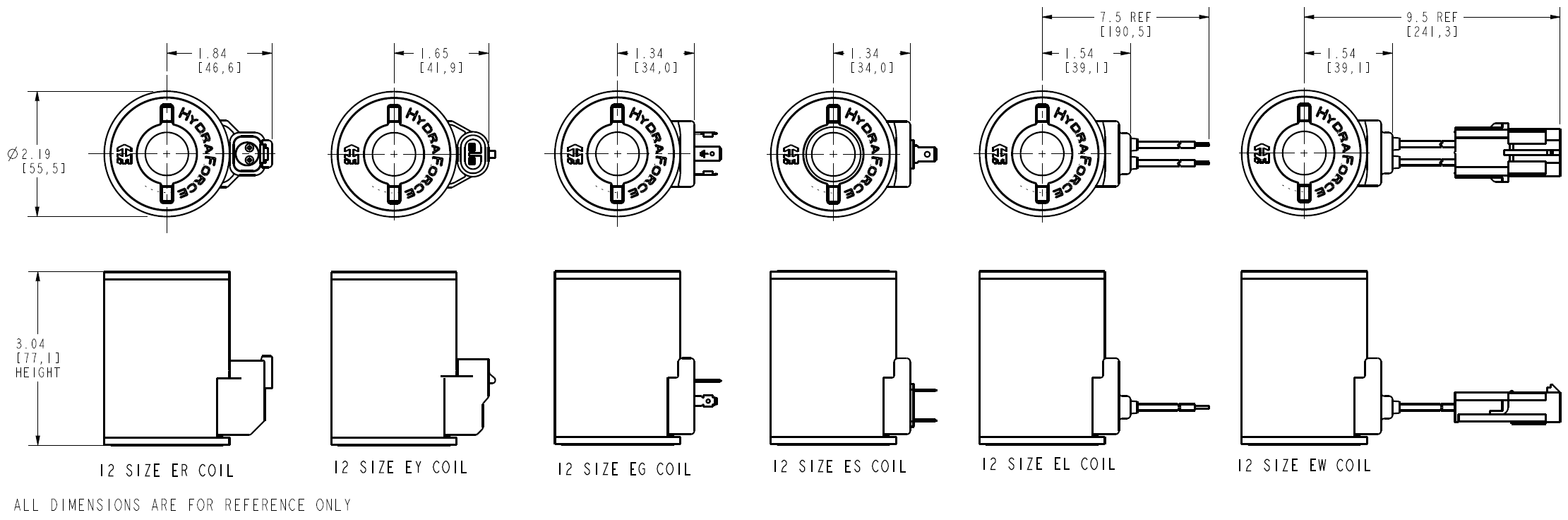

Coil_12_ES_EW_EL_DIM(2022-02-24) Coil_12_EY_ER_EG_DIM(2022-02-24)

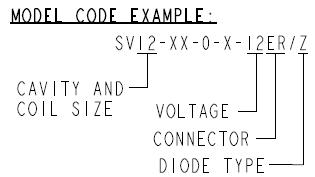

Model code
Part no.
Voltage
Connector
IP rating
Diode
12ES
6851012
12
Dual spade
IP65
24ES
6851024
24
Dual spade
IP65
12EL
6852012
12
Dual leads/no connector
IP69K
12EL/W
6853012
12
WeatherPak on leads
IP69K
12EG
6956012
12
DIN 43650
IP65
24EG
6956024
24
DIN 43650
IP65
12EY
6964012
12
Metri-Pack 150 2M
IP69K
12ER
4301212
12
Deutsch DT04-2P
IP69K
24ER
4301224
24
Deutsch DT04-2P
IP69K
12ER/Z
4305512
12
Deutsch DT04-2P
IP69K
Bidirectional zener diode
24ER/Z
4305524
24
Deutsch DT04-2P
IP69K
Bidirectional zener diode
