Cartridge Valves - Pressure Control Valves - Sequence Valves - External Pilot

PS10-41

SEQUENCE VALVE

Expand All|Collapse All

Overview

Description

The PS10-41X is a spool-type, direct-acting, adjustable, normally open, hydraulic sequence valve with external pilot and spring chamber drain.

Operation

The PS10-41X is designed to block flow between port 2 and port 3 once a predetermined pilot pressure is attained in a circuit. The valve will remain shifted until the pressure in the circuit falls below the pressure setting or spring chamber pressure added to the valve exceeds pilot pressure.

Features

  • Adjustments cannot be backed out of the valve.
  • Adjustments prohibit springs from going solid.
  • Optional spring ranges to 151.7 bar (2200 psi).
  • Hardened precision spool and cage for long life.
  • Industry-common size.
Pressure Ratings
Pressure rating:
  • 206.8 bar (3000 psi) Ports 1, 2, 3
  • 68.9 bar (1000 psi) Port 4
Proof pressure:
  • 482.6 bar (7000 psi)
Burst pressure:
  • 965.3 bar (14000 psi)
Flow Ratings
Flow rating:
  • 37.8 lpm (10 gpm)
Maximum internal leakage:
  • 82 ml/min (5 in³/min) Max to 85% of pressure setting max to 85% of nominal setting
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals with urethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 0.28 kg (0.61 lb) PS10-41A
  • 0.30 kg (0.67 lb) PS10-40B
  • 0.32 kg (0.71 lb) PS10-41C PS10-41L
  • 0.27 kg (0.60 lb) PS10-41F PS10-41H
Internal wetted surface area:
  • 185 cm² (28.6 in²) PS10-41A PS10-41B PS10-41C PS10-41L
  • 203 cm² (31.5 in²) PS10-41F PS10-41H
PS10-41_Flow-Pressure(2022-02-24)

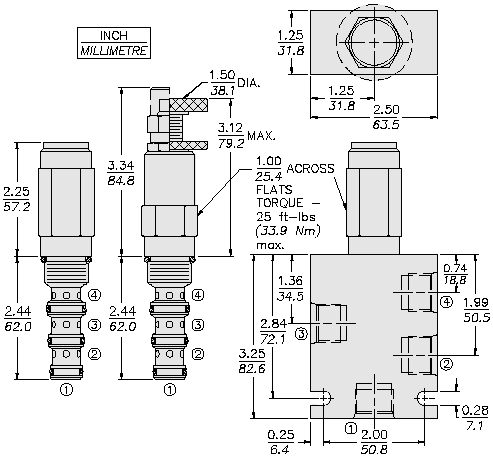

PS10-40_Dim(2022-02-24)
Cavity:
  • VC10-4
H style plug torque:
  • 10.8 to 13.6 N-m (8 to 10 ft-lb) Max.)
Cartridge installation torque:
  • 32.5 to 35.3 N-m (24 to 26 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK10-4X-BMM X = n, v, P
  • SK10-4U-OOO
Housings:

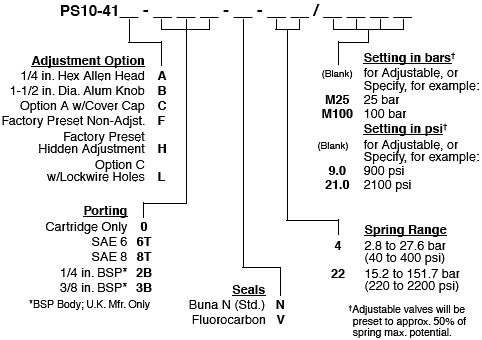

PS10-41_Order(2022-02-24)

Model Options

PS10-41F-H-J-R/S
F Adjustment Option
CODE
DESCRIPTION
A
1/4" Hex Allen Head
B
1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob
C
1/4" Hex Allen Head with Cover Cap
F
Factory Preset Non-Adjustable
H
Factory Preset Hidden Adjustment
L
1/4" Hex Allen Head with Cover Cap and Lockwire Holes
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
R Spring
CODE
DESCRIPTION
04
2.8 to 27.6 bar (40 to 400 psi) Spring Range
08
5.5 to 55.2 bar (80 to 800 psi) Spring Range
22
15.2 to 151.7 bar (220 to 2200 psi) Spring Range
S Setting
CODE
DESCRIPTION
MXXX
Spring Setting in XXX bar
XX
Spring Setting in XX psi (x 100)
