12-Size 4-Way Valve Housings

Expand All|Collapse All

Ratings

Pressure rating:

207 bar (3000 psi) Aluminum
345 bar (5000 psi) Ductile iron

Material:

6061-T6511 Aluminum
Dura-bar Ductile iron

Dimensions

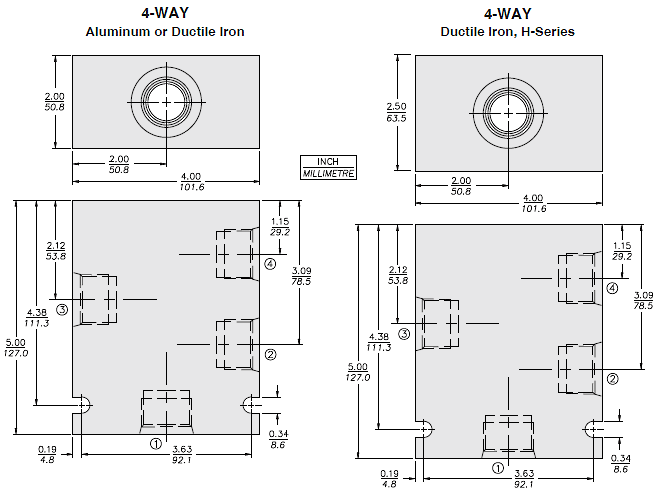

12_Hous-4w-1(2022-02-24)

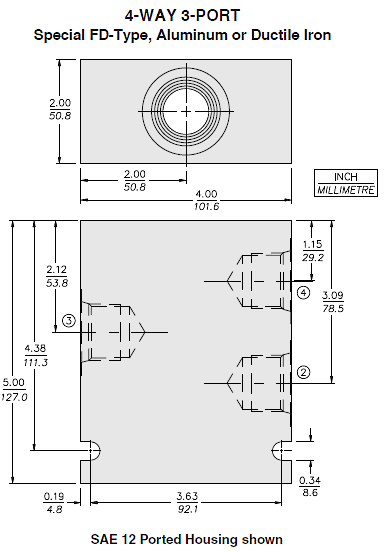

12_Hous-4w-2(2022-02-24)

Part Numbers

CAVITY: HVC12-4

P/N: 7158620

Code: 12HT

Material: DUCTILE IRON

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 12

SAE 12

SAE 12

SAE 12

CAVITY: VC12-4

P/N: 7022480

Code: 10T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 10

SAE 10

SAE 10

SAE 10

P/N: 7022440

Code: 12T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 6

SAE 12

SAE 12

SAE 12

NOTE: PD STYLE BODY, SAE 6 PORT 1

P/N: 7022470

Code: 12T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 12

SAE 12

SAE 12

SAE 12

P/N: 7150720

Code: 12TD

Material: DUCTILE IRON

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 12

SAE 12

SAE 12

SAE 12

P/N: 7022720

Code: 6B

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

3/4" BSP

3/4" BSP

3/4" BSP

3/4" BSP
