Description

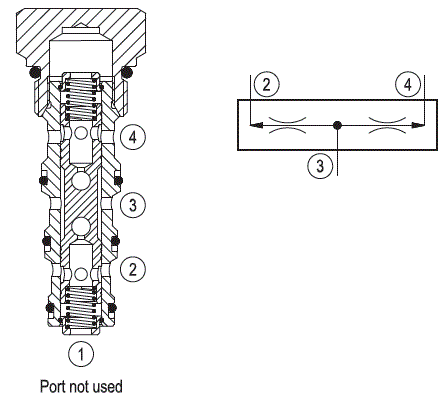

Input flow at 3 will be divided and output equally to 2 and 4 independent of system pressures. Should either 2 or 4 become blocked in flow division mode, approximately 5% of the input flow will be transmitted to the open port. Flow combining is not permitted.

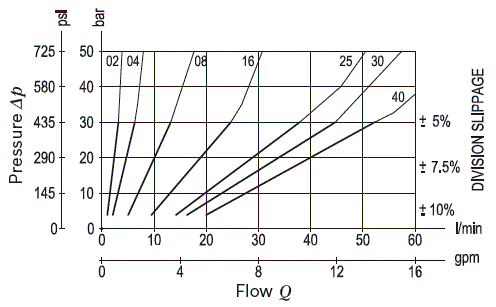

Slippage (tolerance) from theoretical divided flows: ±5% to ±10%, depending from inlet flow (see diagram). N.B.Slippage is lowest toward upper limit of nominal range.
