Cartridge Valves - Flow Control Valves - Pressure Compensated - Flow Divider / Combiner - Standard Accuracy

FD50-45

FLOW DIVIDER/COMBINER VALVE

Overview

Description

The FD50-45 is a screw-in cartridge, spool type flow divider/combiner valve. It provides pressure compensated proportional division of inlet flow or combining of two return flows regardless of system operating pressure conditions. The valve provides synchronizing flow in dividing and combining modes. The valve is intended for use in mineral based or synthetic hydraulic fluids with lubricating properties.

Features

  • Hardened parts for long life.
  • Quiet, modulated response.
  • Wide operating flow range.
  • Synchronizing in dividing and combining modes.
  • Floating cage — high installation torque.
  • Industry-common cavity.
Pressure Ratings
Pressure rating:
  • 345 bar (5000 psi)
Pressure drop:
  • 20.5 bar (300 psi) At maximum inlet flow
Flow Ratings
Inlet flow rating:
  • 19 to 57 lpm (5.0 to 15.0 gpm)
Synchronizing flow:
  • Approximately 10% of maximum inlet flow
Flow accuracy:
  • 15 % Of inlet flow (maximum)
Unit weight:
  • 0.49 kg (1.07 lb)

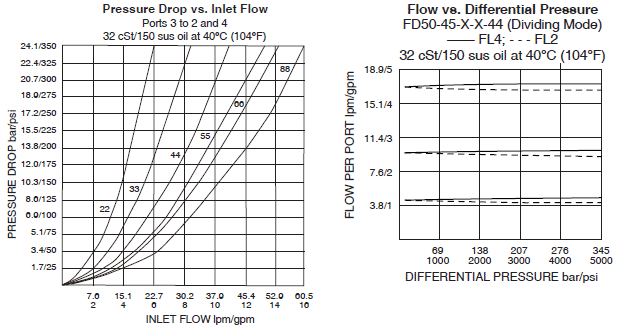

FD50-45_Performance-charts(2022-02-24)

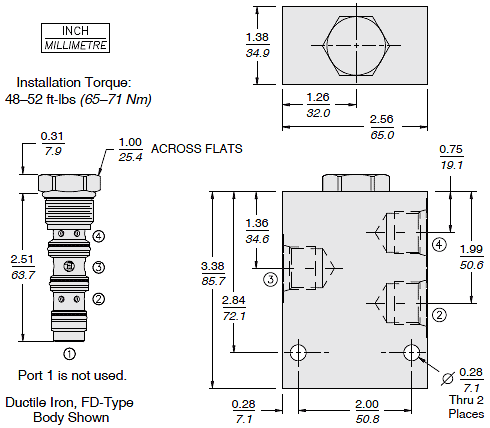

FD50-45_Dim(2022-02-24)
Cavity:

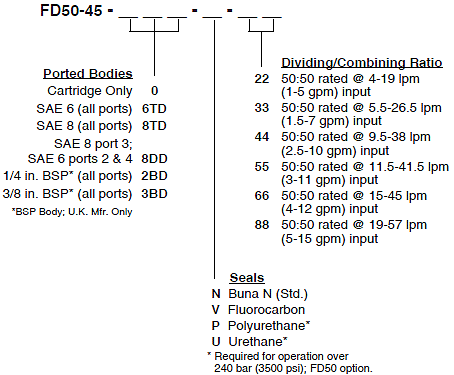

FD50-45_Order(2022-02-24)

Model Options

FD50-45-H-J-N
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
6TD
Ductile Iron SAE 6
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
N Flow Dividing/Combining
CODE
DESCRIPTION
22
50/50 Rated at 4.0-19.0 lpm (1.0-5.0 gpm)
33
50/50 Rated at 5.5-26.5 lpm (1.5-7.0 gpm)
44
50/50 Rated at 9.5-38.0 lpm (2.5-10.0 gpm)
55
50/50 Rated at 11.5-41.5 lpm (3.0-11.0 gpm)
66
50/50 Rated at 15.0-45.0 lpm (4.0-12.0 gpm)
88
50/50 Rated at 19.0-57.0 lpm (5.0-15.0 gpm)
