Cartridge Valves - Solenoid Valves - 2-Position 2-Way - Poppet Type - Normally Open - Restrictive Reverse Flow

SF08-21

SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY OPEN HIGH PRESSURE

Overview

Description

A solenoid-operated, 2 way, piloted, poppet-type, normally open, screw in hydraulic cartridge valve designed for low leakage in higher pressure load-holding applications.

Operation

When de-energized, the sf08-21xx allows flow from port 2 to port 1. Flow from port 1 to port 2 is severely restricted in this mode. When energized, the valves poppet closes on its seat, blocking flow from port 2 to port 1. In this mode the cartridge will allow port 1 to port 2 flow after overcoming the solenoid force (requires 50 to 150 psi [3,4 to 10,3 bar]).

Features

  • Continuous-duty rated coil.
  • Corrosion-resistant plating.
  • Hardened seat for long life and low leakage.
  • Optional coil voltages and terminations.
  • Cartridges are voltage interchangeable.
  • Unitized, molded coil design.
  • Manual override option.
  • Optional waterproof E-Coils rated up to IP69K.
  • Industry common, compact size.
Pressure Ratings
Pressure rating:
  • 350 bar (5000 psi)
Proof pressure:
  • 385.5 bar (5200 psi) Does not apply to MO Valve
Burst pressure:
  • 723.9 bar (10500 psi) Does not apply to MO. Valve
Flow Ratings
Flow rating:
  • See performance chart
Maximum internal leakage:
  • 3 drops/min Max at 350 bar (5000 psi)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Other Ratings
Corrosion protection:
  • Gsf08-21 960 hr salt spray per ASTM b117
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 0.09 kg (0.20 lb)
Internal wetted surface area:
  • 103.9 cm² (16.1 in²)
Minimum pull in voltage:
  • 10.2 Vdc 12 Vdc coil

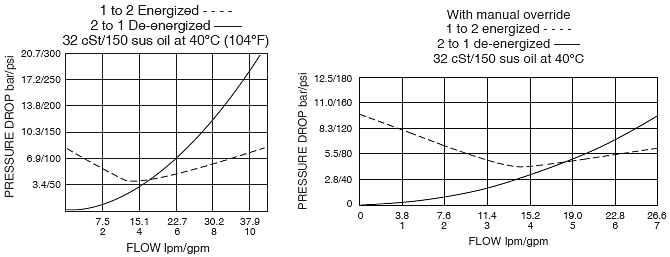

SF08-21_Perf_Chrt(2022-02-24)
SF08-21_Dim_Dwg(2022-02-24)
Cavity:
Cartridge installation torque:
  • 25.8 to 28.5 N-m (19 to 21 ft-lb)
Coil nut torque:
  • 5.4 to 6.8 N-m (4 to 5 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK08-2HX-T X = n, V seal options
  • SK08-2P-T P seal option
SF08-21_Order(2022-02-24)

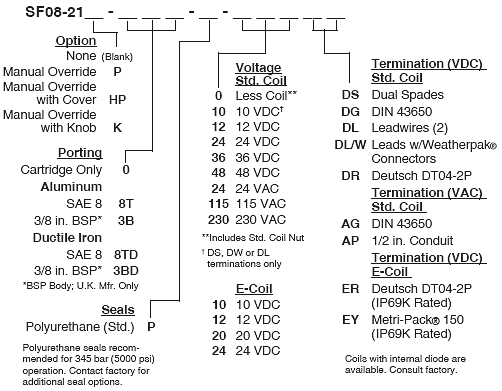

Model Options

SF08-21EG-H-J-L
E Manual Override
CODE
DESCRIPTION
BLANK
NONE
HP
Momentary Push Override, Button with Protective Nut
K
Momentary Push Override, Knob
P
Momentary Push Override, Button
G Screen
CODE
DESCRIPTION
BLANK
NONE
S
100 Mesh Screen
H Line Body
CODE
DESCRIPTION
0
No Body
4T
Aluminum SAE 4
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
3BD
Ductile Iron BSPP 3/8" (3)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DL
10 VDC, D-Coil, Dual Lead Wires
10DR/D
10 VDC, D-Coil, Deutsch with Diode
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires, 18 inches long
10EL/36
10 VDC, E-Coil, Dual Lead Wires, 36 inches long
10ER
10 VDC, E-Coil, Deutsch
10ER/Z
10 VDC, E-Coil, Deutsch with Zener Diode
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DL/W/D
12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode
12DR
12 VDC, D-Coil, Deutsch
12DR/D
12 VDC, D-Coil, Deutsch with Diode
12DR/Z
12 VDC, D-Coil, Deutsch with Zener Diode
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EG/Z
12 VDC, E-Coil, DIN 43650 with Zener Diode
12EJ
12 VDC, E-Coil, AMP Jr.
12EJ/Z
12 VDC, E-Coil, AMP Jr. with Zener Diode
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12EL/Z
12 VDC, E-Coil, Dual Lead Wires with Zener Diode
12ER
12 VDC, E-Coil, Deutsch
12ER/Z
12 VDC, E-Coil, Deutsch with Zener Diode
12EY
12 VDC, E-Coil, Metri-Pack 150
12EY/Z
12 VDC, E-Coil, Metri-Pack 150 with Zener Diode
20DG
20 VDC, D-Coil, DIN 43650
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
20ER/Z
20 VDC, E-Coil, Deutsch with Zener Diode
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires, 18 inches long
24DL/36
24 VDC, D-Coil, Dual Lead Wires, 36 inches long
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DR
24 VDC, D-Coil, Deutsch
24DR/D
24 VDC, D-Coil, Deutsch with Diode
24DR/Z
24 VDC, D-Coil, Deutsch with Zener Diode
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EG/Z
24 VDC, E-Coil, DIN 43650 with Zener Diode
24EJ
24 VDC, E-Coil, AMP Jr.
24EL/D
24 VDC, E-Coil, Dual Lead Wires with Diode
24ER
24 VDC, E-Coil, Deutsch
24ER/Z
24 VDC, E-Coil, Deutsch with Zener Diode
24EY
24 VDC, E-Coil, Metri-Pack 150
24EY/Z
24 VDC, E-Coil, Metri-Pack 150 with Zener Diode
36DG
36 VDC, D-Coil, DIN 43650
36DS
36 VDC, D-Coil, Dual Spade
115AG
115 VAC, D-Coil, DIN 43650
115AP
115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
230AG
230 VAC, D-Coil, DIN 43650
230AP
230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
