SV07-34

2-POSITION 3-WAY SOLENOID VALVE

Overview

Description

The SV07-34 is a solenoid operated, two position three way, direct acting spool valve. It is intended for use in mineral based or synthetic (with lubrication properties) hydraulic fluids.

Features

  • Continuous-duty rated coil.
  • Hardened precision spool and cage for long life.
  • Optional coil voltages and terminations.
  • Efficient wet-armature construction.
  • Cartridges are voltage interchangeable.
  • All ports may be fully pressurized.
  • Unitized, molded coil design.
  • Optional waterproof E‑Coils rated up to IP69K.
  • Compact size.
Flow Ratings
Flow rating:
  • See performance charts
Maximum internal leakage:
  • 81.84 ml/min (5 in³/min) At 207 bar (3000 psi)
Pressure Ratings
Maximum recommended pressure drop:
  • See performance charts
Pressure rating:
  • 207 bar (3000 psi)
Other Ratings
Response:
  • 50 ms Pull-in
  • 20 ms Drop-out

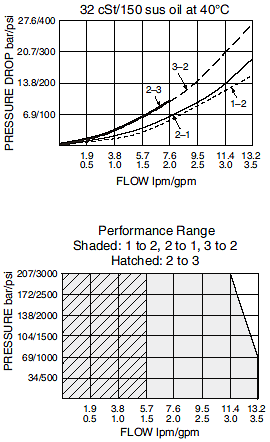

SV07-34_Perf_Chrt(2022-02-24)

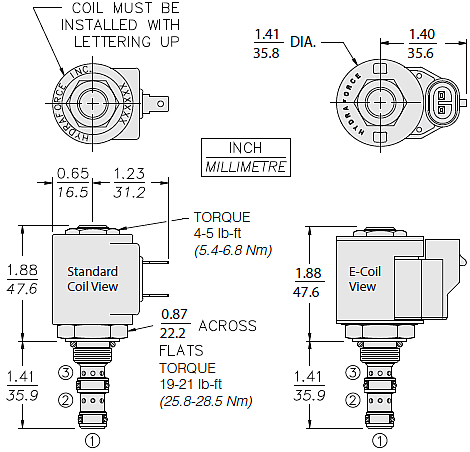

SV07-31_Dim_Dwg(2022-02-24)
Cartridge installation torque:
  • 27.1 N-m (20 ft-lb)
Coil nut torque:
  • 6.8 N-m (5 ft-lb)

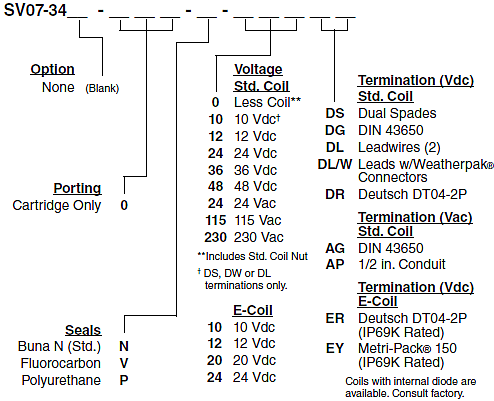

SV07-34_Order(2022-02-24)

Model Options

SV07-34-H-J-L
H Line Body
CODE
DESCRIPTION
0
No Body
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DL
10 VDC, D-Coil, Dual Lead Wires
10DR/D
10 VDC, D-Coil, Deutsch with Diode
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires, 18 inches long
10EL/36
10 VDC, E-Coil, Dual Lead Wires, 36 inches long
10ER
10 VDC, E-Coil, Deutsch
10ER/Z
10 VDC, E-Coil, Deutsch with Zener Diode
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DL/W/D
12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode
12DR
12 VDC, D-Coil, Deutsch
12DR/D
12 VDC, D-Coil, Deutsch with Diode
12DR/Z
12 VDC, D-Coil, Deutsch with Zener Diode
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EG/Z
12 VDC, E-Coil, DIN 43650 with Zener Diode
12EJ
12 VDC, E-Coil, AMP Jr.
12EJ/Z
12 VDC, E-Coil, AMP Jr. with Zener Diode
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12EL/Z
12 VDC, E-Coil, Dual Lead Wires with Zener Diode
12ER
12 VDC, E-Coil, Deutsch
12ER/Z
12 VDC, E-Coil, Deutsch with Zener Diode
12EY
12 VDC, E-Coil, Metri-Pack 150
12EY/Z
12 VDC, E-Coil, Metri-Pack 150 with Zener Diode
20DG
20 VDC, D-Coil, DIN 43650
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
20ER/Z
20 VDC, E-Coil, Deutsch with Zener Diode
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires, 18 inches long
24DL/36
24 VDC, D-Coil, Dual Lead Wires, 36 inches long
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DR
24 VDC, D-Coil, Deutsch
24DR/D
24 VDC, D-Coil, Deutsch with Diode
24DR/Z
24 VDC, D-Coil, Deutsch with Zener Diode
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EG/Z
24 VDC, E-Coil, DIN 43650 with Zener Diode
24EJ
24 VDC, E-Coil, AMP Jr.
24EL/D
24 VDC, E-Coil, Dual Lead Wires with Diode
24ER
24 VDC, E-Coil, Deutsch
24ER/Z
24 VDC, E-Coil, Deutsch with Zener Diode
24EY
24 VDC, E-Coil, Metri-Pack 150
24EY/Z
24 VDC, E-Coil, Metri-Pack 150 with Zener Diode
36DG
36 VDC, D-Coil, DIN 43650
36DS
36 VDC, D-Coil, Dual Spade
115AG
115 VAC, D-Coil, DIN 43650
115AP
115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
230AG
230 VAC, D-Coil, DIN 43650
230AP
230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
