SV08-20

Solenoid cartridge valve poppet, 2 way, normally closed

SV08-20_sym_2025-09-03
STP Files Download PDF of Page Request a Quote
Expand All|Collapse All

Description

A solenoid-operated, 2-way, normally closed, poppet-type, screw-in cartridge valve, with standard (SV08-20) and manual override options. This valve is intended as a blocking or load holding device for low flow circuits having pull-only manual override requirements for handles or cable linkage.

Operation

When de-energized, the SV08-20XX acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the valves poppet lifts to open the port 2 to port 1 flow path, while flow from port 1 to port 2 is severely restricted.

Pressure Ratings
Pressure rating:
  • 3000 psi [207 bar]
Proof pressure:
  • 10000 psi [690 bar] SV08-20
  • 3500 psi [240 bar] SV08-20M/J/Y
Burst pressure:
  • 13500 psi [930 bar] SV08-20
  • 10500 psi [725 bar] SV08-20M/J/Y
Flow Ratings
Flow rating:
  • See performance graph
Maximum internal leakage:
  • 3 drops/min At 3000 psi [207 bar] SV08-20/M
  • 5 drops/min at 3000 psi [207 bar] SV08-20J/Y
Temperature Ratings
Operating fluid temperature:
  • -40 °f to 212 °f [-40 °c to 100 °c] With Buna N seals
  • -15 °f to 400 °f [-26 °c to 204 °c] With fluorocarbon seals
  • -65 °f to 225 °f [-54 °c to 107 °c] With polyurethane seals
Storage temperature:
  • -40 °f to 160 °f [-40 °c to 70 °c]
Ambient temperature:
  • -40 °f to 160 °f [-40 °c to 70 °c]
Fluids:
  • Mineral based or synthetic hydraulic fluid with Lubricating properties.
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Corrosion protection:
  • Note: GSV08-20XX
  • 960 hr salt spray per ASTM B117
Unit weight:
  • 0.22 lb [0.10 kg] SV08-20
  • 0.33 lb [0.15 kg] SV08-20J/Y/M
Internal wetted surface area:
  • 12.8 in [83 cm] SV08-20
  • 13.3 in² [86.1 cm²] SV08-20J/Y/M
SV08-20_perf_2025-09-03 SV08-20_perf_2_2025-09-03 SV08-20_perf_3_2025-09-03

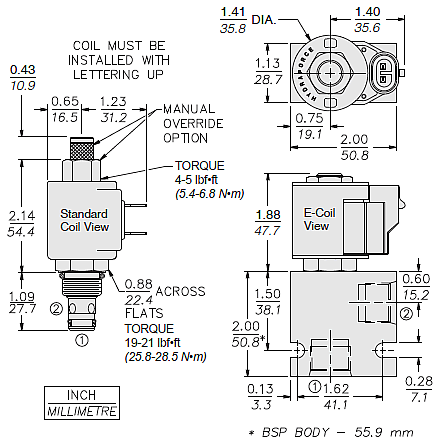

SV08-20_dim_2025-09-03
Cavity:
  • VC08-2
Cartridge installation torque:
  • 19-21 ft-lb [25.8-28.5 N-m]
Maximum allowable torque:
  • Note: in aluminum
  • 40 ft-lb [54 N-m]
Coil nut torque:
  • 4-5 ft-lb [5.4-6.8 N-m]
Orientation restriction:
  • None
Seal kit:
  • Note: X = seal option
  • SK08-2X-T
Housings:
Coils:

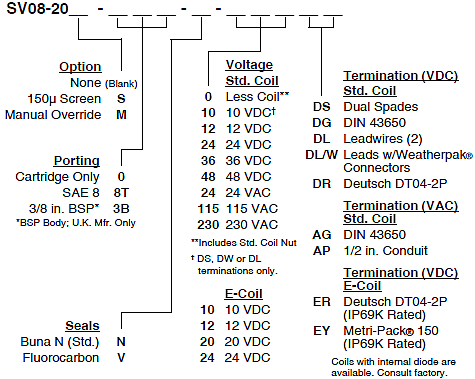

SV08-20_order_2025-09-03

Model Options

SV08-20EG-H-J-L
E Manual Override
CODE
DESCRIPTION
BLANK
NONE
J
Momentary Pull Override, #10-32 threads
M
Two Position Override, Red Knurled Knob
Y
Momentary Pull Override, Red Knurled Knob
G Screen
CODE
DESCRIPTION
BLANK
NONE
S
100 Mesh Screen
H Line Body
CODE
DESCRIPTION
0
No Body
4T
Aluminum SAE 4
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
3BD
Ductile Iron BSPP 3/8" (3)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DL
10 VDC, D-Coil, Dual Lead Wires
10DR/D
10 VDC, D-Coil, Deutsch with Diode
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires, 18 inches long
10EL/36
10 VDC, E-Coil, Dual Lead Wires, 36 inches long
10ER
10 VDC, E-Coil, Deutsch
10ER/Z
10 VDC, E-Coil, Deutsch with Zener Diode
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DL/W/D
12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode
12DR
12 VDC, D-Coil, Deutsch
12DR/D
12 VDC, D-Coil, Deutsch with Diode
12DR/Z
12 VDC, D-Coil, Deutsch with Zener Diode
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EG/Z
12 VDC, E-Coil, DIN 43650 with Zener Diode
12EJ
12 VDC, E-Coil, AMP Jr.
12EJ/Z
12 VDC, E-Coil, AMP Jr. with Zener Diode
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12EL/Z
12 VDC, E-Coil, Dual Lead Wires with Zener Diode
12ER
12 VDC, E-Coil, Deutsch
12ER/Z
12 VDC, E-Coil, Deutsch with Zener Diode
12EY
12 VDC, E-Coil, Metri-Pack 150
12EY/Z
12 VDC, E-Coil, Metri-Pack 150 with Zener Diode
20DG
20 VDC, D-Coil, DIN 43650
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
20ER/Z
20 VDC, E-Coil, Deutsch with Zener Diode
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires, 18 inches long
24DL/36
24 VDC, D-Coil, Dual Lead Wires, 36 inches long
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DR
24 VDC, D-Coil, Deutsch
24DR/D
24 VDC, D-Coil, Deutsch with Diode
24DR/Z
24 VDC, D-Coil, Deutsch with Zener Diode
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EG/Z
24 VDC, E-Coil, DIN 43650 with Zener Diode
24EJ
24 VDC, E-Coil, AMP Jr.
24EL/D
24 VDC, E-Coil, Dual Lead Wires with Diode
24ER
24 VDC, E-Coil, Deutsch
24ER/Z
24 VDC, E-Coil, Deutsch with Zener Diode
24EY
24 VDC, E-Coil, Metri-Pack 150
24EY/Z
24 VDC, E-Coil, Metri-Pack 150 with Zener Diode
36DG
36 VDC, D-Coil, DIN 43650
36DS
36 VDC, D-Coil, Dual Spade
115AG
115 VAC, D-Coil, DIN 43650
115AP
115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
230AG
230 VAC, D-Coil, DIN 43650
230AP
230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
