Description
A solenoid-operated, 3 port, direct-acting, spool-type, screw in hydraulic directional valve.
Operation
When de-energized, the SV08-31X allows flow from port 1 to port 2, while blocking flow at port 3. When energized, the cartridge's spool shifts to open from port 3 to port 1, while blocking flow out port 2.
Features
- Continuous-duty rated coil.
- Hardened precision spool and cage for long life.

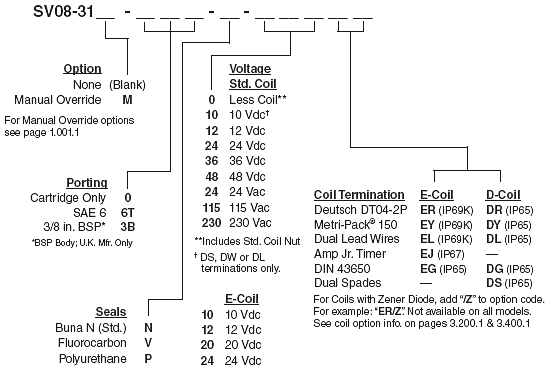

- Optional coil voltages and terminations.
- Efficient wet-armature construction.
- Cartridges are voltage interchangeable.
- All ports may be fully pressurized.
- Unitized, molded coil design.
- Manual override option.
- Optional waterproof E‑Coils rated up to IP69K.
- Industry common cavity – Compact size.
