PARALLEL-TYPE, 2-BY-2 BODIES
DESCRIPTION

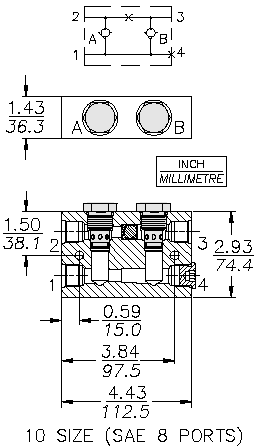

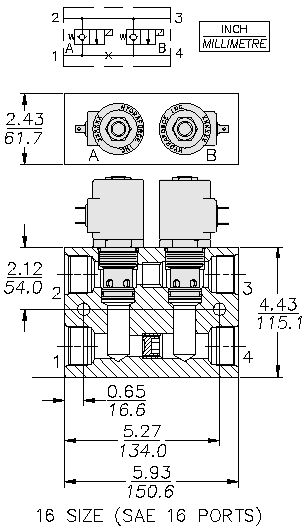

Parallel-type 2-by-2 bodies are standardized valve bodies which have multi-functional (multiple circuit) potential. They are available in three sizes to house standard -10, -12, or -16 size two-way cartridge valves. Given the wide variety of potential cartridges, the application potential for the 2-by-2 body blocks is quite large. Dimensions for the blocks are illustrated below.
APPLICATIONS

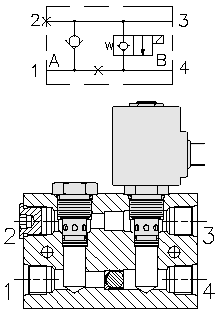

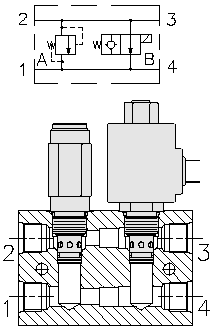

Illustrated below are a few common applications for
2-by-2 bodies:
ORDERING INFORMATION:
The following 2-by-2 components are ordered individually:
| Size | Body | Pipe Plug |
Expander Plug |
SAE Plug |
|---|---|---|---|---|
| -08 | 7073910 | — | 6108090 | 6103006 |
| -10 | 7070110 | — | 6108120 | 6103008 |
| -12 | 7070120 | 6102038 | — | 6103012 |
| -16 | 7070130 | 6102048 | — | 6103016 |
Note: European manufactured version may differ in design/dimensions. Consult HydraForce Hydraulics, Ltd.
CROSS-OVER-TYPE, 2-BY-2 BODIES
DESCRIPTION
Commonly used for cross-over relief applications, these
standard bodies can also be used for alternate purposes.
APPLICATIONS

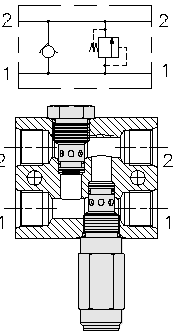

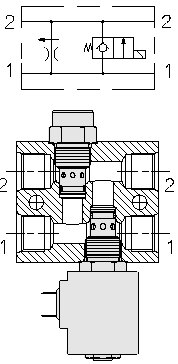

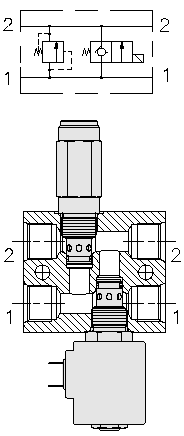

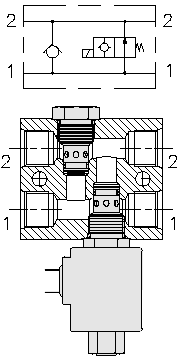

Illustrated below are a few common applications
for the cross-over type 2-by-2 bodies.
ORDERING INFORMATION:
The following 2-by-2 components are ordered individually:
| Size | Part No. | Port Size |
|---|---|---|
| -08 | 7070160 | SAE 6 |
| -10 | 7070170 | SAE 10 |
