Cartridge Valves - Cartridge Valve Accessories - Coils - 08 Size - E-Coil

Coil_08-XXEX/X

E COIL 08 SIZE

Overview

Description

Magnet wire winding overmolded 30% glass filled polyester, and enclosed in a three piece zinc plated metal shell.

Properties
Magnet wire:
  • U.S. class N 200 °C (392 °F) minimum rating
Mating connector:
  • DT06-2S-P012 DEUTSCH DT04-2P
  • DELPHI/PACKARD number 12052641 METRI-PACK 150-2M
Coil metal frame:
  • Plated for 1,000 hours of salt spray per ASTM B117-09 before corrosion (red rust)
Electrical Parameters
Coil resistance:
  • 6.18 ohm ±3% At 20 °C (68 °F), 10 V coil
  • 8.8 ohm ±3% At 20 °C (68 °F), 12 V coil
  • 15.6 ohm ±5% At 20 °C (68 °F), 20 V coil
  • 33.75 ohm ±5% At 20 °C (68 °F), 24 V coil
Coil inductance:
  • 6.22 mH ±5% At 20 °C (68 °F), 10 V coil
  • 10.61 mH ±5% At 20 °C (68 °F), 12 V coil
  • 30.48 mH ±5% At 20 °C (68 °F), 20 V coil
  • 44 mH ±5% At 20 °C (68 °F), 24 V coil
Coil initial current draw:
  • 1.62 A 10 V coil
  • 1.36 A 12 V coil
  • 0.84 A 20 V coil
  • 0.71 A 24 V coil
Coil initial power consumption:
  • 16.16 W 10 V coil
  • 16.33 W 12 V coil
  • 16.76 W 20 V coil
  • 17.07 W 24 V coil

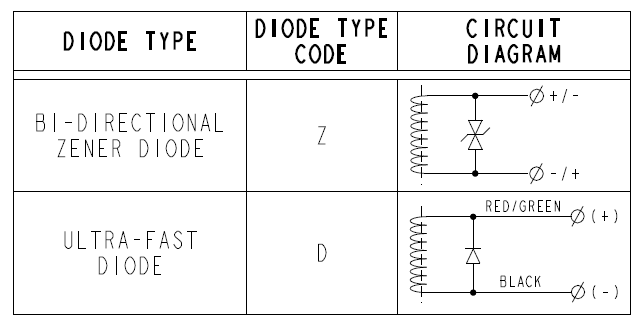

Bidirectional Zener Diode Parameters
Maximum clamping voltage:
  • 45.7 V 12 Vdc coil
  • 64.8 V 16, 24 Vdc coil
Maximum peak pulse current:
  • 13.2 A 12 Vdc coil
  • 9.3 A 16, 24 Vdc coil
Reverse standoff voltage:
  • 28.2 V 12 Vdc coil
  • 40.2 V 24 Vdc coil
Maximum reverse leakage:
  • 5.0 µA 12, 16, 24 Vdc coil
Breakdown voltage:
  • 31.4 to 34.7 V 12 Vdc coil
  • 44.7 to 49.4 V 16, 24 Vdc coil
Diode part number:
  • 6110163 12 Vdc coil (ref)
  • 4000063 16, 24 Vdc coil (rev)
Ultra-fast Diode Parameters (12/24 Vdc Coil)
Average forward current:
  • 3.5 A
Repetitive peak reverse voltage:
  • 600 V
Diode part number:
  • 4002474

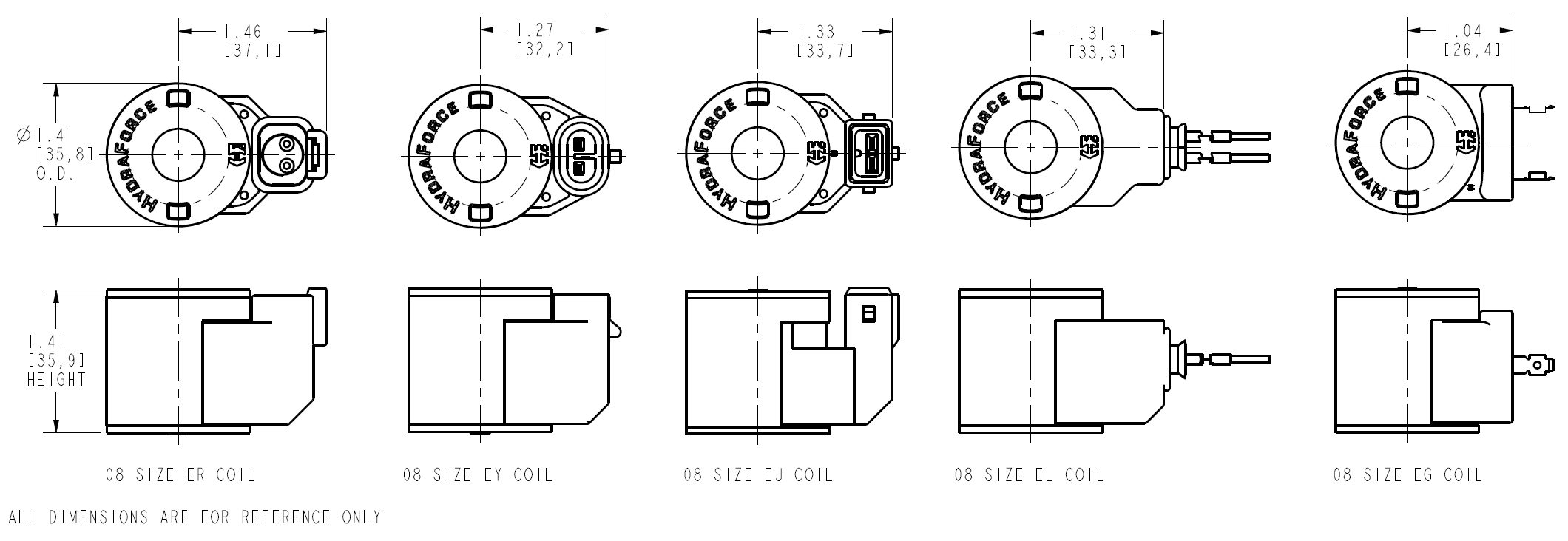

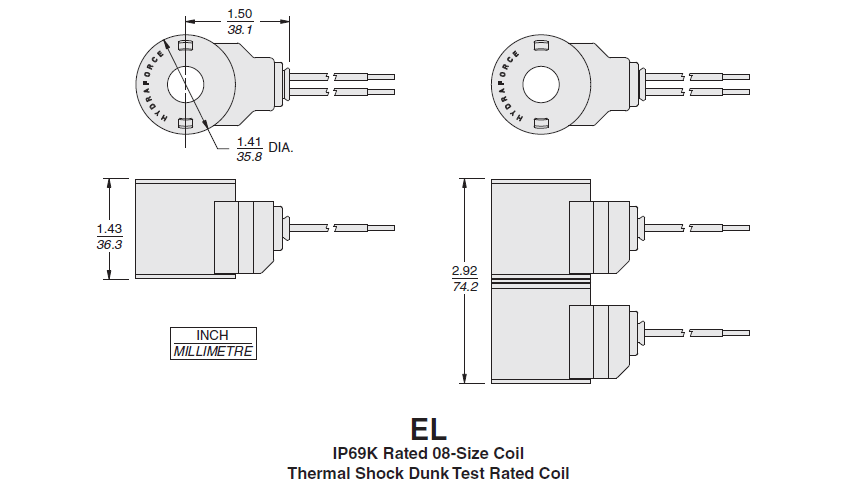

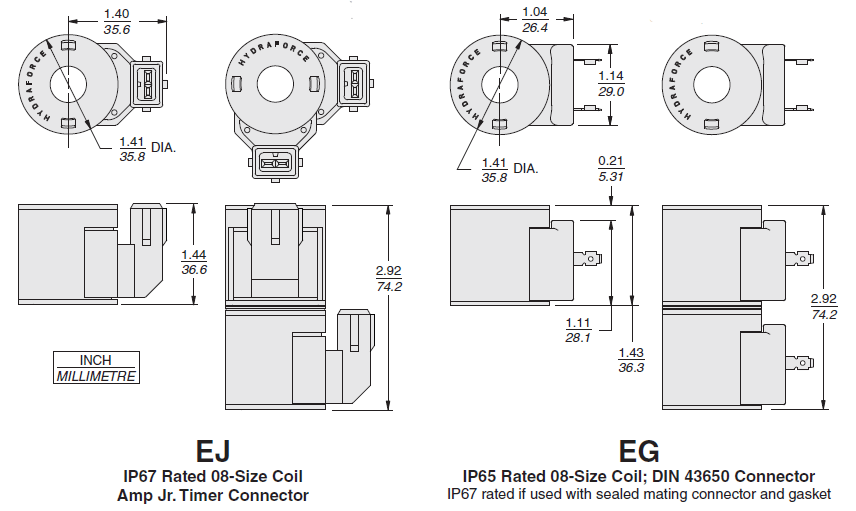

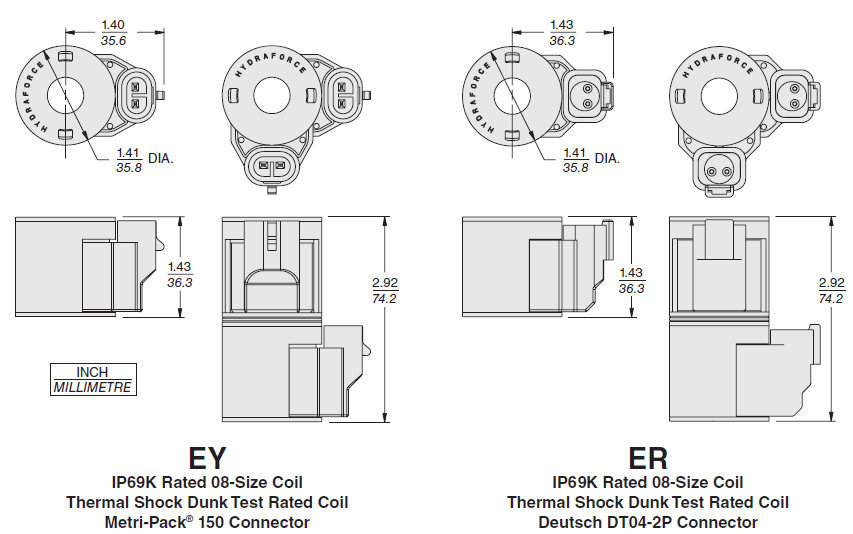

Coil_08_EJ_EG_DIM(2022-02-24) Coil_08_EL_DIM(2022-02-24) Coil_08_EY_ER_DIM(2022-02-24)
Model code
Part no.
Voltage
Connector
IP rating
Diode
10EL
4305110
10
Dual leads/no connector
IP69K
12EL
4305112
12
Dual leads/no connector
IP69K
24EL
4305124
24
Dual leads/no connector
IP69K
10EL
4308710
10
Dual leads/no connector
IP69K
12EL
4308712
12
Dual leads/no connector
IP69K
12EL/Z
4306812
12
Dual leads/no connector
IP69K
Bidirectional zener diode
12EG
4305862
12
DIN 43650
IP65
24EG
4305864
24
DIN 43650
IP65
12EG/Z
4305872
12
DIN 43650
IP65
Bidirectional zener diode
24EG/Z
4305874
24
DIN 43650
IP65
Bidirectional zener diode
12EJ
4306112
12
AMP Jr. timer
IP67
24EJ
4306124
24
AMP Jr. timer
IP67
12EJ/Z
4305912
12
AMP Jr. timer
IP67
Bidirectional zener diode
24EJ
4305924
24
AMP Jr. timer
IP67
12EY
4303412
12
Metri-Pack 150 2M
IP69K
24EY
4303424
24
Metri-Pack 150 2M
IP69K
12EY/Z
4303812
12
Metri-Pack 150 2M
IP69K
Bidirectional zener diode
24EY/Z
4303824
24
Metri-Pack 150 2M
IP69K
Bidirectional zener diode
10ER
4303610
10
Deutsch DT04-2P
IP69K
12ER
4303612
12
Deutsch DT04-2P
IP69K
20ER
4303620
20
Deutsch DT04-2P
IP69K
24ER
4303624
24
Deutsch DT04-2P
IP69K
10ER/Z
4304010
10
Deutsch DT04-2P
IP69K
Bidirectional zener diode
12ER/Z
4304012
12
Deutsch DT04-2P
IP69K
Bidirectional zener diode
20ER/Z
4304020
20
Deutsch DT04-2P
IP69K
Bidirectional zener diode
24ER/Z
4304024
24
Deutsch DT04-2P
IP69K
Bidirectional zener diode
